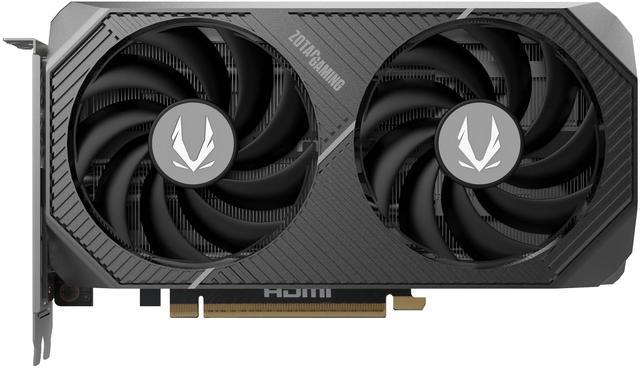

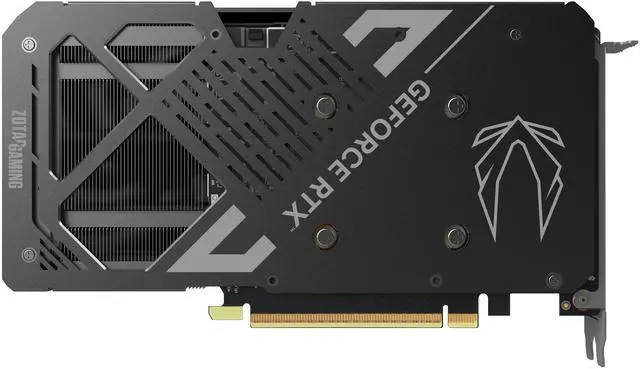

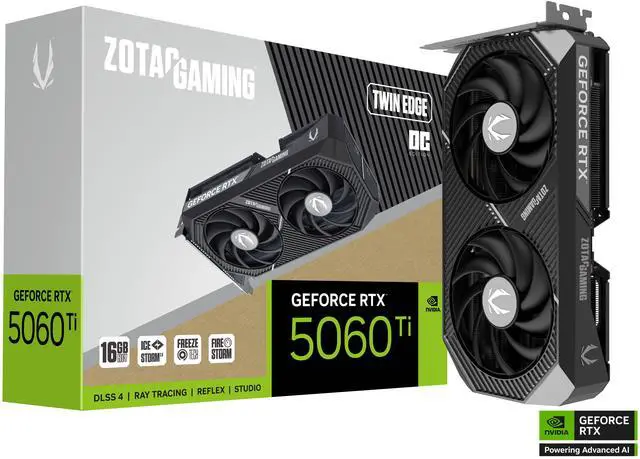

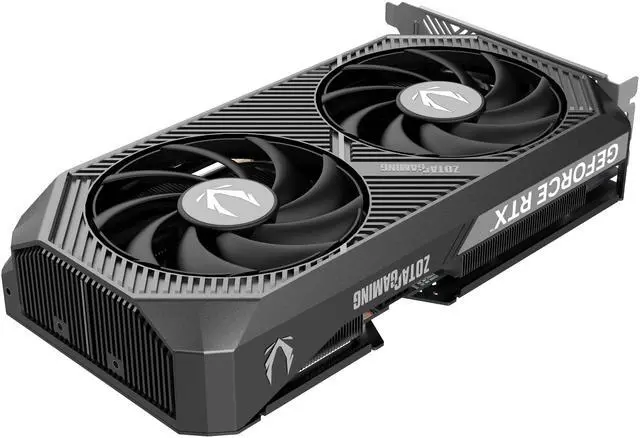

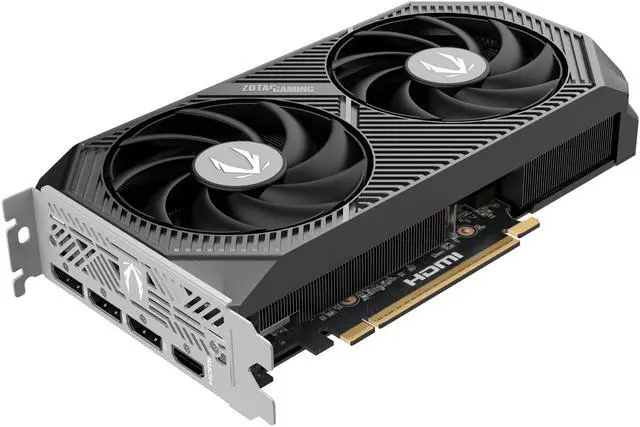

ZOTAC Twin Edge OC GeForce RTX 5060 Ti PCI Express 5.0 x8 16GB 128-Bit GDDR7 Graphics Card ZT-B50620H-10M
Original price was: $595.11.$531.89Current price is: $531.89.
ZOTAC Twin Edge OC GeForce RTX 5060 Ti PCI Express 5.0 x8 16GB 128-Bit GDDR7 Graphics Card ZT-B50620H-10M
| Brand |
ZOTAC |
|---|---|
| Series |
Twin Edge OC |
| Model |
ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC |
| Part Number |
ZT-B50620H-10M |
| Interface |
PCI Express 5.0 x8 |
| Chipset Manufacturer |
NVIDIA |
| GPU Series |
NVIDIA GeForce RTX 50 Series |
| GPU |
GeForce RTX 5060 Ti |
| Architecture |
Blackwell |
| Boost Clock |
2602 MHz |
| CUDA Cores |
4608 Cores |
| Effective Memory Clock |
28 Gbps |
| Memory Size |
16GB |
| Memory Interface |
128-Bit |
| Memory Type |
GDDR7 |
| DirectX |
DirectX 12 Ultimate |
| OpenGL |
OpenGL 4.6 |
| Multi-Monitor Support |
4 |

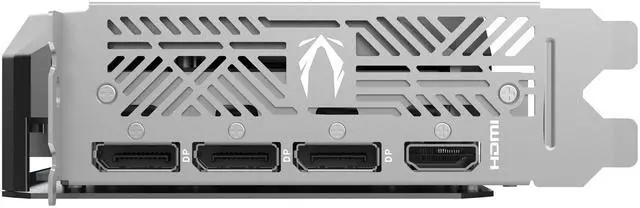

| HDMI |
1 x HDMI 2.1b |
| DisplayPort |
3 x DisplayPort 2.1b |
| Color |
Black |
| CrossFireX Support |
No |
| SLI Support |
No |
| Virtual Reality Ready |
Yes |
| Cooler |
Double Fans |
| Operating Systems Supported |
Windows 11 ,Windows 10 64-bit (v1809 November 2018 or later)👉Check gaming pc with Windows 11 Pro |
| Thermal Design Power |
180W |
| Recommended PSU Wattage |
650W |
| Power Connector |
8-Pin |
| HDCP Ready |
Yes |
| Features |
KEY FEATURES• NVIDIA Blackwell Architecture• 5th Generation Tensor cores• 4th Generation RT cores• NVIDIA DLSS 4• Game Ready and NVIDIA Studio Drivers• NVIDIA® GeForce Experience™• NVIDIA Broadcast ,NVIDIA G-SYNC®• 16GB GDDR7 graphics memory• IceStorm 2.0 advanced cooling• FREEZE fan stop• Dual 90mm BladeLink Fans • Metal backplate• ZOTAC GAMING FireStorm Utility• Side Retention Mount for secure transport• SFF-Ready compact footprint |
| Form Factor |
ATX |
| Max GPU Length |
221 mm |
| Card Dimensions L x H |
Product:• Length: 220.5 mm (8.7 in)• Height: 120.25 mm (4.7 in)• Width: 2 slot (41.6 mm) (1.6 in) |
| Slot Width |
2 Slots |
| Package Contents |
INSIDE THE BOX• ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC• User Manual |
| First Listed on Newegg |
April 16 ,2025 |
5 reviews for ZOTAC Twin Edge OC GeForce RTX 5060 Ti PCI Express 5.0 x8 16GB 128-Bit GDDR7 Graphics Card ZT-B50620H-10M
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Anonymous –
Pros: It was packed well and works amazingly. Overall Review: Good choice if you want max settings in most games while on a budget.
Anonymous –
Cons: Latest drivers will not work with this card (576.40 game ready, nor 576.02 studio)
Black screen, no display Overall Review: I updated my BIOS to latest and also removed the previous drivers (even used DDU to remove everything), and went to go install latest drivers. Partway through the installation when the resolution changes, is when I experienced the black screen. It only worked with no driver installed… which is hardly optimal. My previous GeForce 1070 works without issue. Returning this.
Anonymous –
Pros: Item is good. Cons: Shipping took forever Overall Review: Might be my last order from this website.
Anonymous –
Pros: Card looks good and fits in my case just fine. Cons: My Asrock B450M/ac only recognizes the card at Gen 1 PCIe, so my computer runs great for a nice computer from 2010. Overall Review: Wait for Nvidia to get their stuff together on drivers before you spend 2 weeks waiting for something.
