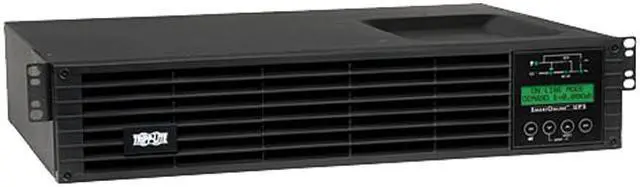

Tripp Lite SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS
$1,569.55
Tripp Lite Smart Online 1.5kVA UPS Back Up, Double-Conversion, 120V 1.35kW 2U Rack / Tower, Extended Run, Network Card Slot, LCD, USB, DB9 (SU1500RTXLCD2U)
| Best Seller Ranking |
#62 in Battery Backup (UPS) |
|---|---|
| Brand |
TRIPP LITE |
| Series |
SMARTONLINE |
| Model |
SU1500RTXLCD2U |
| Input Voltage Range |
100V AC ,110V AC ,115V AC ,120V AC ,127V AC |
| Input Connection |

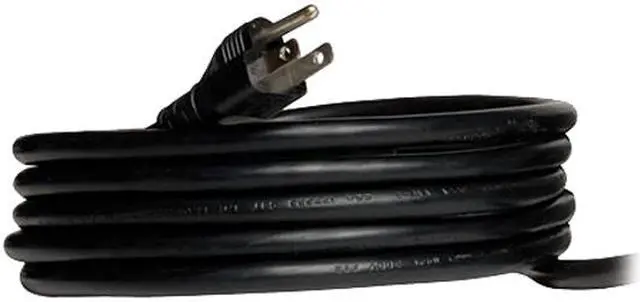

NEMA 5-15P |
| VA Rating |
1500 VA |
| Watts |
1350 Watts |
| Output Voltage |
100V ,110V ,115V ,120V ,127V |
| Output Frequency |
50 ,60 Hz ,Supports 50 to 60 Hz and 60 to 50 Hz conversion |
| Outlets |
6 |
| Outlet Type |
5-15R |
| Battery Type |
Valve Regulated Lead Acid (VRLA) |
| Battery Run Time |
Full Load Runtime: 4.2 minutes (1350 Watts)Half Load Runtime: 14 minutes (675 Watts) |
| Battery Recharge Time |
Less than 3 hours recharge to 90% ,Add 6 hours per BP48V27-2US (typical ,full load discharge) |
| Battery Replaceable |
RBC94-2U |
| Alarms |
Audible alarm indicates UPS startup ,power-failure ,low-battery ,overload ,UPS fault and remote shutdown conditions |
| Interface Port |
USB (HID enabled) ,DB9 Serial ,Contact closure ,EPO (emergency power off) ,Slot for SNMP/Web interface |
| Management Software |
PowerAlert |
| Approvals |
Tested to UL1778 (USA) ,Tested to CSA (Canada) ,Meets FCC Part 15 Category A (EMI) ,ROHS (Restriction of Hazardous Substances) ,ENERGY STAR Qualified |
| Rackmountable |
2U |
| Data Line Protection |
1 line TEL/DSL (1 in ,1 out) ,10/100Base T Ethernet |
| Surge Energy Rating |
570 Joules |
| Features |

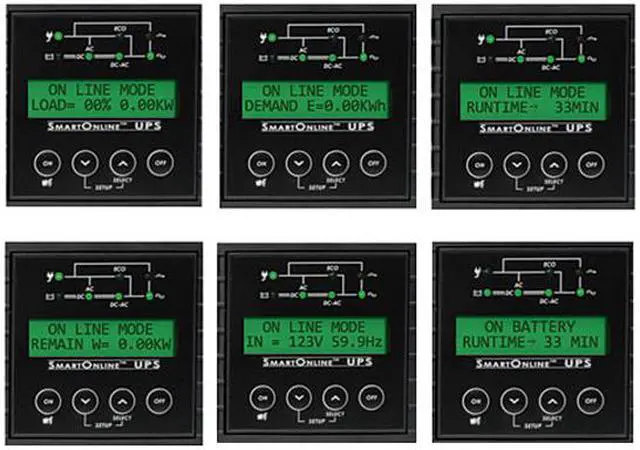

Tripp Lite SU1500RTXLCD2U 1500 VA ,1.5 kVA ,1350 Watts on-line ,double-conversion 2U rack ,tower UPSSelectable 100 ,110 ,120 ,127V output (120V factory preset)NEMA 5-15P input ,6 NEMA 5-15R outletsTwo switched 3-outlet load banks support remote reboot or programmable load shedding optionsSupports 2% output voltage regulation and zero transfer time in double conversion modeEconomy mode option offers enhanced efficiency ,reduced power consumption and lower BTU emissions14 minutes runtime at 50% load (675 Watts) and 4.2 minutes at 100% load (1350 Watts) with internal batteriesBP48V24-2U (limit 1) ,BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs available (some configurations require Tripp Lite's External Battery Configuration Software)LCD interface reports operating mode plus 9 selectable screens of UPS data (Load % & kW ,Load % & kVA ,Power factor ,Input volts & Hz ,Output volts & Hz ,Battery volts and charge % ,Minutes runtime ,Capacity remaining ,Kw/hr. consumption)LCD interface also supports 16 screens of UPS configuration and setup options4 post installation hardware included ,Optional 2POSTRMKITWM enables 2 post rack ,wallmount installation ,Optional 2-9USTAND enables tower placementElectronic bypass maintains utility output during a variety of UPS fault conditionsBattery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages ,even when batteries are expired and require replacementFrequency regulation ,conversion mode offers generator-compatible frequency correction or conversion of frequency from 50 to 60 Hz or 60 to 50 HzBuilt-in USB ,RS-232 ,contact-closure and optional SNMPWEBCARD accessory monitoring optionsHID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X |
| Dimensions |
3.50" x 17.50" x 18.50" |
| Weight |
45.20 lbs. |

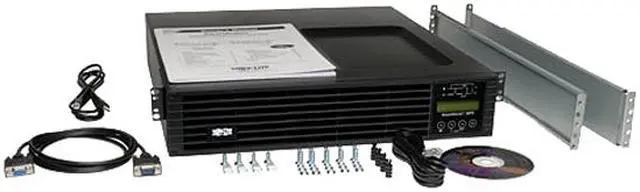

| Package Contents |
SU1500RTXLCD2U UPS SystemPowerAlert Software with USB ,Serial & EPO cabling4 post rackmount installation kitInstruction manual |
| First Listed on Newegg |
August 30 ,2023 |
10 reviews for Tripp Lite SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Rachel T. –
Pros: Newegg RMA process works Cons: I have ordered three of these devices. The first arrived with no damage and I have had no problems with it. The second unit arrived with a cracked LCD display and was unusable. The RMA unit that replaced it had the same issue. Both broken units had no shipping damage. I know this is not a Newegg issue, however when I contacted customer service to attempt to have them inspect the next RMA, they said that they were unable to verify the equipment prior to shipping. This is the first time I have had an issue with any product from Newegg. I will be in contact with Tripp Lite to see if they can be of assistance.
kingermark –
Overall Review: Great product. Display is easy to read and tells you what is going on.
the 13th Doctor –
Overall Review: We needed to protect multiple items on a bench but didn’t want to sacrifice space. Mounted this type underneath the desktop and it did the job brilliantly.
Casper W. –
Pros: Easy setup, easy load on the server. The server interface was easy to setup and provides good information on the status of the UPS. No problems encountered Cons: Have some help handy because it is heavy as any ups this size.
Mark D. –
Pros: great price for the VA it is rated to deliver.
Eco mode option or dual conversion possible, Eco mode switches fast enough for my equipment so a nice plus.
LEDs indicate status (mains AC, battery, ECO mode, bypass, etc) and are always on, so it’s easy to see. Cons: Assembly/build quality issues. Battery pack is 4x12V sealed lead acid batteries, but the wiring connecting them used crimp connectors that simply fell off. Every connector felt loose, it took a couple hours of my time to fix.
The front bezel feels chincy, and the LCD text display is both crooked and refreshes too slowly to display fast changing input, e.g. the measured load.
The cooling fan cycles between low/high speeds very regularly (every 6 seconds or so?). I can hear it from where I usually sit, can be quite distracting. I believe it cycles due to my load cycling so this may not be an issue for other users.
The menus and buttons would be very difficult to navigate without the manual. Keep it around!
AmonH –
Overall Review: This device powered my whole server room at the office, and shows barely any usage. 6 ports gave me room for expansion and its compact size left me with plenty of room in the rack.
Rick –
Overall Review: This product distributes connectivity in our Radio Communications Equipment cabinet
MIKE F. –
Pros: Great UPS. Purchased two of them 10 months ago, along with TLNETCARD cards (the newer model SNMP card) and environmental sensors. Fast, clean power to protect our server rack. Wired each one into a separate breaker and ran our dual PSU Dell servers off of them (one AC cord per server going to each UPS). Both UPS’s report about a 30% load powering 8 servers. Cons: Our first one arrived defective. Tripp-Lite customer support was very helpful getting exchanged, but the exchange process was still difficult and time-consuming due to the size and weight of these units (had to be shipped back via freight carrier). Overall Review: Would definitely recommend this model. The software is a bit challenging to do the initial set-up, but everything works well once it’s properly configured.
