TRIPP LITE SMART750RMXL2U UPS
$964.41

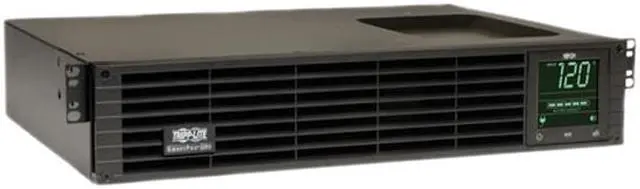

Tripp Lite SMART750RMXL2U 750VA 600W UPS Smart Rackmount AVR LCD 120V USB DB9 SNMP 2URM, 6 Outlets
| Brand |
TRIPP LITE |
|---|---|
| Model |
SMART750RMXL2U |
| Input Voltage Range |
120V AC |
| Input Connection |

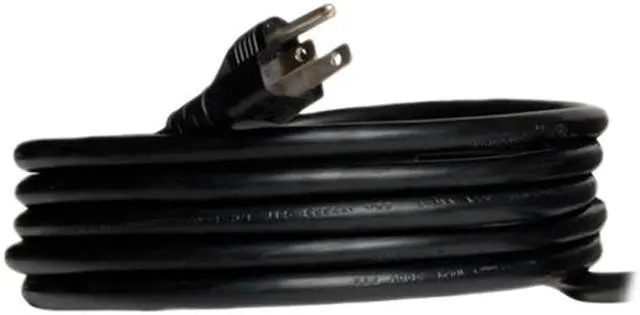

NEMA 5-15P |
| VA Rating |
750 VA |
| Watts |
600 Watts |
| Output Voltage |
120Vac +/- 5% |
| Outlets |
6 |
| Outlet Type |
5-15R outlet(s) |
| Battery Type |
Valve Regulated Lead Acid (VRLA) |
| Battery Run Time |
Full load runtime: 8.5 min.Half load runtime: 21 min. |
| Battery Recharge Time |
Less than 4.5 hours from 10% to 90% |
| Battery Replaceable |
Hot-swappable ,user replaceable batteries |
| Alarms |
Audible alarm indicates UPS startup ,power-failure ,low-battery ,overload ,UPS fault and remote shutdown conditions |
| Interface Port |

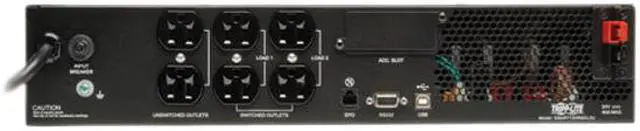

USB ,DB9 Serial ,EPO (emergency power off) ,Slot for SNMP/Web interface |
| Management Software |
YES |
| Approvals |
Tested to UL1778 (USA) ,Tested to CSA (Canada) ,Tested to NOM (Mexico) ,Meets FCC Part 15 Category B (EMI) |
| Rackmountable |
2U |
| Surge Energy Rating |
570 joules |
| Features |

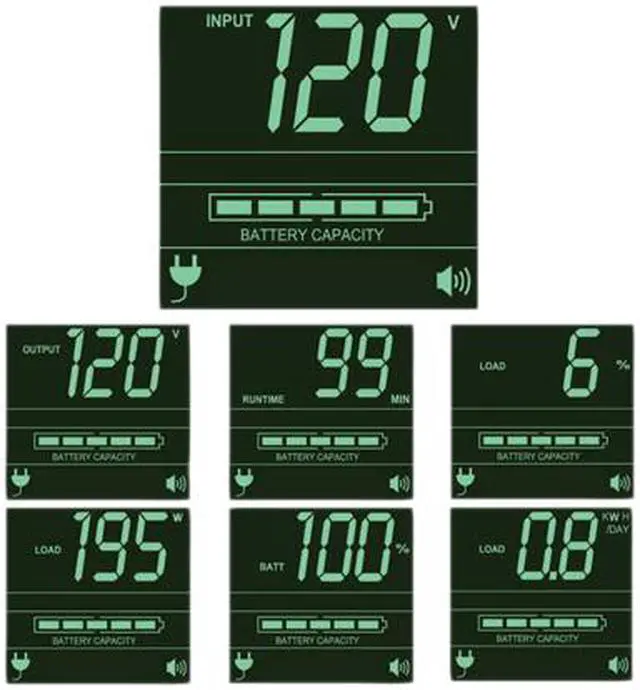

Tripp Lite SMART750RMXL2U line interactive 2U rack/tower UPS with 750VA ,.75kVA ,600W capacity and extended runtime optionsLine interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 147VNEMA 5-15P input plug ,6 NEMA 5-15R output receptacles ,Two independently switched output load banksMaintains uninterrupted operation of connected networking equipment during blackouts ,surges ,brownouts and overvoltagesHigh 95% efficiency rating in line-power mode offers reduced power consumption and BTU emisssionsInternal batteries offer 21 minutes at 50% load (300W) and 8.5 minutes at 100% load (600W)External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)Hot-swappable ,user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipmentFront panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic ,plus 7 selectable screens of detailed UPS and site power informationLCD interface also supports a number of advanced user setup and operating preferencesBuilt-in USB ,RS-232 and optional SNMPWEBCARD accessory monitoring optionsHID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS XIncluded PowerAlert UPS monitoring software ,Built-in Emergency Power Off (EPO) interface with cable3-year warranty with registration |
| Dimensions |
3.5" x 17.35" x 13.15" |
| Weight |
35 lbs |
| Package Contents |

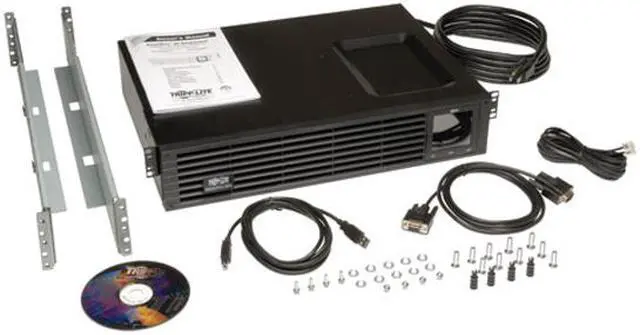

SMART750RMXL2U UPS SystemPowerAlert software with USB ,Serial & EPO cabling4 post installation kitOwner's manual |
| First Listed on Newegg |
September 27 ,2023 |
14 reviews for TRIPP LITE SMART750RMXL2U UPS
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Seth H. –
Pros: relatively small for a 2200VA UPS, expandable (with optional battery pack), switchable plugs through serial or USB connected dedicated host. Cons: control software can be buggy. Overall Review: I have owned three of these UPS’s and have had them running 24/7 for the past 3 years without so much as a hiccup.
Anonymous –
Pros: Excellent uptime characteristics. Has a nice LCD display that automatically scrolls through information. Has the ability to add their “SNMPWEBCARD” for network based shutdown and browser/java access to the unit. Cons: Packaging is poor, given weight of unit. Bottom “plate” was very mildly bent. (Removing one egg for manufacturer’s packaging)
Purchased with requirement to use the SNMPWEBCARD. SNMPWEBCARD implementation is poor at best. Overall Review: Will be looking to purchase the single battery pack add-on for increased runtime. Will see how well this performs over time.
STEPHEN P. –
Pros: The LCD shows a ton of information, Voltage, Total Watts in Use, MAX estimated UPS time, Battery info, etc. This is much more compact than the slightly lower rated Dell unit we also have. The Dell unit has MASSIVE amounts of empty air space surrounding the battery chamber (not for air flow purposes, just bad design. Be sure you have a 120V 30A locking plug! Cons: Slightly more price than I was hoping, but close enough, I would like to see $699, the batteries don’t really cost that much. Would have given 5 eggs if the price were $100 lower. Overall Review: A very good UPS for a reasonable cost and very compact.
Thomas L. –
Pros: Rack mountable (4 post). There is a 2 post kit available. Best / most useful display of the Tripplite UPS’s I’ve used. Resonable size and weight for its rating. Cons: Documentation is poor. I.E. there is a USB and COM monitoring ports each, but not clear whether you can use both or just one at a time. Software is horrible – confusing UI, and I’ve yet been able to make it work on the network as cited (I downloaded the latest version from the TrippLite website). Don’t try to learn it while powering a critical server, there are times when it isn’t clear it’s going to shutdown the O/S and UPS. Overall Review: I’ve been buying TrippLite UPSs for a while now, after getting fed up with another very popular vendor. After a growing pile of failed units (not just the batteries), enough is enough. I’ve had various TrippLite UPSs for years, and not one has been delegated to the to-be-recycled pile so far.
Wade P. –
Pros: Haven’t connected it yet, see Other Comments.
Large capacity. Cons: Don’t know. Overall Review: CAUTION: Unit requires a 30 Amp circuit and twist lock receptacle. They tell you this with the technical name for the plug, but if you don’t know the jargon, you won’t find out until you open the box!
T. Ruff –
Overall Review: Very easy install which included the Ethernet expansion card. Set the IP reservation and obtained the address assigned. Helps with management of this device.
UncleSammy –
Overall Review: Inexpensive unit that does the job, software needs update. The product works as intended. Really would be better with network interface. The software is not highly intuitive. A more network administrative friendly software suite would be appreciated
Jason S –
Overall Review: We installed this product in our production environment, inside a rack above the production floor. The product will protect a production network switch.
