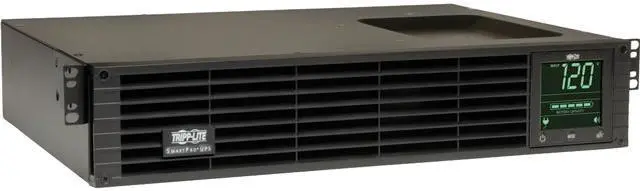

Tripp Lite SMART1500RM2UN SmartOnline 120V 1.5KVA 1350 Watts Double-Conversion UPS, 2U Rack / Tower, Extended Run, Pre-Installed WEBCARDLX Network
$1,691.65
Tripp Lite SMART1500RM2UN SmartOnline 120V 1.5KVA 1350 Watts Double-Conversion UPS, 2U Rack / Tower, Extended Run, Pre-Installed WEBCARDLX Network Interface, USB, DB9 Serial
| Best Seller Ranking |
#92 in Battery Backup (UPS) |
|---|---|
| Brand |
TRIPP LITE |
| Series |
SmartPro |
| Model |
SMART1500RM2UN |
| Input Voltage Range |
120V AC |

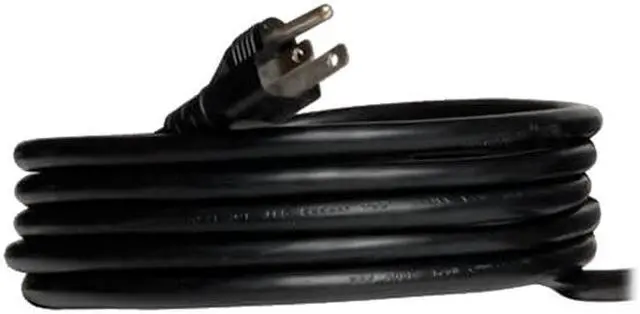

| Input Connection |
NEMA 5-15P |
| VA Rating |
1500 VA |
| Watts |
1350 Watts |
| Output Voltage |
120V |
| Output Frequency |
60 Hz |

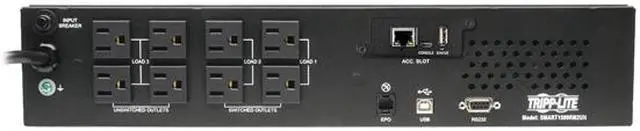

| Outlets |
8 |
| Outlet Type |
5-15R |
| Battery Type |
Valve Regulated Lead Acid (VRLA) |
| Battery Run Time |
0.08 Hour0.22 Hour |
| Battery Recharge Time |
Full Load Runtime: 4.5 minutes (1350 Watts)Half Load Runtime: 13 minutes (675 Watts) |
| Battery Replaceable |
RBC93-2U |
| Alarms |
Audible alarm indicates UPS startup ,power-failure ,low-battery ,overload ,UPS fault and remote shutdown conditions |
| Interface Port |
USB (HID enabled) ,DB9 Serial ,EPO (emergency power off) ,Slot for SNMP/Web interface |
| Management Software |
PowerAlert |
| Approvals |
Tested to UL1778 (USA) ,Tested to CSA (Canada) ,Tested to NOM (Mexico) ,Meets FCC Part 15 Category B (EMI) |
| Rackmountable |
2U |
| Surge Energy Rating |
570 Joules |
| Features |

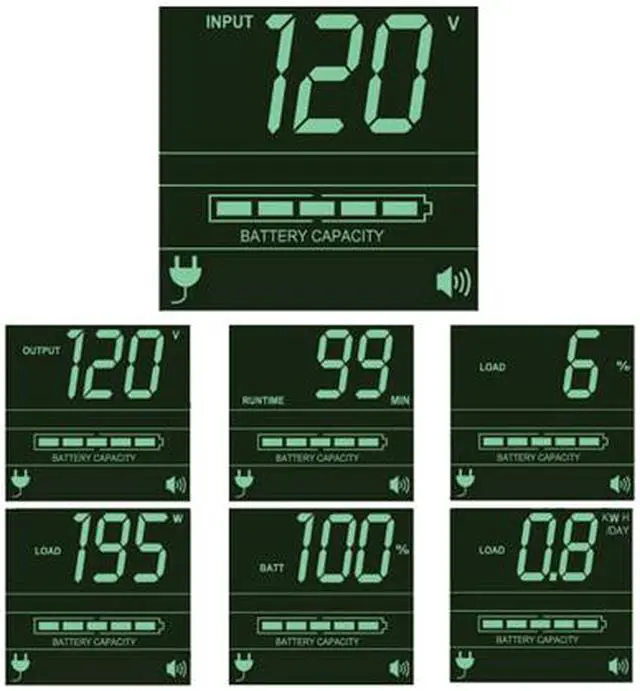

Tripp Lite SMART1500RM2UN line interactive 2U rack/tower UPS with 1500VA ,1.5kVA ,1350W capacityLine interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 147VNEMA 5-15P input plug ,6 NEMA 5-15R output receptacles ,Two independently switchable output load banksMaintains uninterrupted operation of connected networking equipment during blackouts ,surges ,brownouts and overvoltagesHigh 95% efficiency rating in line-power mode offers reduced power consumption and BTU emissionsInternal batteries offer 13 minutes at 50% load (675W) and 4.5 minutes at 100% load (1350W)Hot-swappable ,user-replaceable internal batteries can be replaced with no disruption to connected equipment Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic ,plus 7 selectable screens of detailed UPS and site power informationLCD interface also supports a number of advanced user setup and operating preferencesShips with 4 post rackmount installation hardware ,Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation ,Optional 2-9USTAND enables tower placementBuilt-in USB ,RS-232 and pre-installed SNMPWEBCARD accessoryHID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS XIncluded PowerAlert UPS monitoring software ,Built-in Emergency Power Off (EPO) interface with cable |
| Dimensions |
3.50" x 17.50" x 13.45" (H x W x D) |
| Weight |
46.50 lbs. |
| Package Contents |
SART1500RM2UN UPS System with Pre-installed SNMPWEBCARD PowerAlert software with USB ,Serial & EPO cabling4 post rackmount installation kitInstruction manual |
| VA |
1500 VA w ,WEBCARDLX |
| Watt |
N/A |
| Options |
No |
| First Listed on Newegg |
August 24 ,2023 |
30 reviews for Tripp Lite SMART1500RM2UN SmartOnline 120V 1.5KVA 1350 Watts Double-Conversion UPS, 2U Rack / Tower, Extended Run, Pre-Installed WEBCARDLX Network
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Michael D. –
Pros: – Cons: UPS arrived DOA. We contacted Tripp Lite tech support, but they wanted to go through a long, drawn out process that would have taken about 20 business days to get a replacement. Meanwhile we have servers that are unprotected–obviously an unacceptable situation. Returned to NewEgg, who is awesome by the way, and purchased a competing brand. Overall Review: The batteries arrived at 20V. The UPS won’t charge if the voltage is less than 40V, so we swapped batteries. Still no luck.
Traivs L. –
Pros: Inexpensive Cons: Self test on power up indicates the battery in the unit is 3.6 years old.
That’s a lot of shelf time.
Still waiting to hear back from Tripplite on how they want to resolve that.
External battery is NOT plug n play.
It requires a hokey configuration utility via a usb connection before it will recognize it.
Neither the manual for the UPS, not the manual for the battery pack even mention this – it’s on one of those addendum sheets.
Really, the utility for installing an external battery doesn’t merit inclusion in the manual? Or you just forgot? Overall Review: Next time, I’ll stick with Eaton
William L. –
Pros: Powerful with 9 outlets, It’s a beast, Feels like I could run my whole server room on this thing. Cons: Must install in 4 post rack or support the rear of the unit separately, 30A plug. Overall Review: This is a great UPS, but you’ll need a dedicated 30 amp outlet for it. Not that that’s a bad thing, I just didn’t realize at the time and ended up spending almost as much on the electrician as I did on the UPS. NEMA L5-30A.
Patricia S. –
Pros: Great UPS. I have had a lot of Tripp lite units over the years and they all have performed beautifully. Very reliable. Cons: None Overall Review: The LCD display looks awesome!
Todd C. –
Pros: Inexpensive and flexible, with either a 20A or 30A input.
Replacement batteries are 4 commodity 12v9a and therefor very inexpensive. Batteries may even be replaced while the unit is providing AC passthrough power.
This UPS is a fairly good surge suppressor, and will also correct for a *lot* of under/over volt problems without touching the batteries, due to a multiple tap transformer.
The short depth of this unit, compared to others of its class is great (20″ vs 26″) as my home office racks are on the shallow side. Cons: The Front Panel has not been upgraded to LCD like the rest of the series Overall Review: This unit can also take a whole bunch of 48v external batteries, although this will reduce the maximum wattage available from around 1920 to 1600/
20A Networked PDU’s with L5-20P cords are extremely cheap used, owing to nobody knowing what a L5-20P connector is. $500-$600 units are going for < $100. This UPS has a L5-20R socket, so I don't even have to re-end the PDU's.
When my external batteries show up and everything is all charged up, I'm going to connect my 1800W toaster over and bake cookies from battery power as a test. Yummmmm! UPS Cookies!
ROBERT J. –
Pros: Was cheaper than a comparable APC system Cons: Unit failed 32 days into use. Contacted TrippLite and had to pay $120 for express shipping to replace out the failed unit. Second unit failed 35 days into use.
I had the SNMPWEB card installed and each time it never alerted me to any problems. After the first UPS issue I kept a near daily review of the UPS via the card. No issues were present.
I also didn’t like that you had to manually update the system to know there was a battery pack attached. Overall Review: After two failures within 70 days of ownership, the issues with the SNMPWEB card and the manual process of informing the UPS that there was a battery pack I made the decision to go back to APC. My other UPS is an APC UPS Smart3000 XL system that has been working flawlessly for 9 years. Don’t go cheap with TrippLite, buy APC and never regret the purchase.
Anonymous –
Pros: Great UPS for rating under or at 2400 watts the max for a 20 amp circuit. Cons: Neweggs description needed some improvement. Overall Review: Wasn’t sure if it was safe to use on 20 amp circuit with NEMA 5-15R standard 3 prong 15 amp plug considering it’s input is NEMA L5-30P input that needs alot of adapters to convert the 240 volts, 30 amps, and 3600 watts down to 120 volts, 15 amps, and low enough below 1800 watts, so I returned it.
Chase M. –
Pros: – Installation was easy. Cons: – Fan is very noisy, even when on wall-power and minimal temperatures. There’s no way to control the fan speed. Overall Review: Don’t buy if you want something quiet for the house. I can’t return since it’s outside the return window, but will probably just sell it used.
