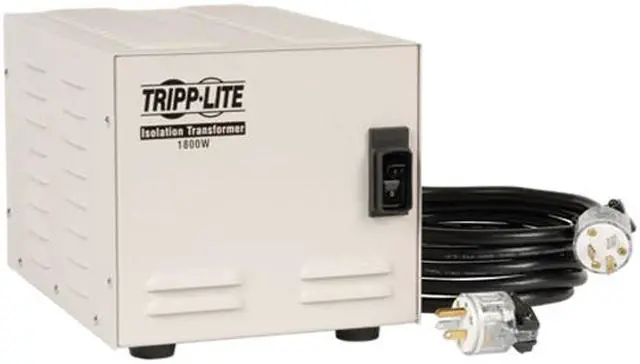

Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa
$1,063.44
Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa
| Best Seller Ranking |
#67 in UPS Replacement Battery & Accessories |
|---|---|
| Brand |
TRIPP LITE |
| Series |
Isolator |
| Model |
IS1800HG |
| Type |
Isolation Transformer |
| Specifications |

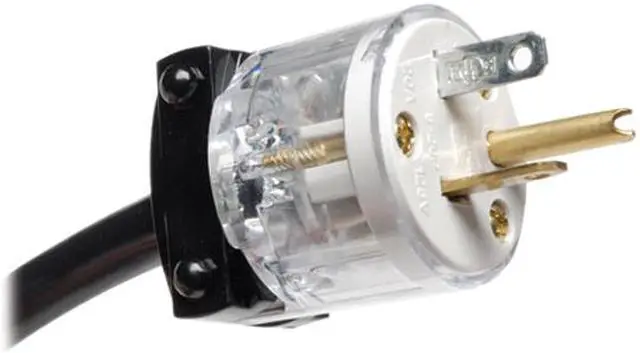

Efficiency: 96%Let-through Voltage (Combination Wave): L-N: 250V L-G: 250V N-G: 0.5VLet-through Voltage (Ring Wave): L-N: 20V L-G: 20V N-G: 0.5VNominal Voltage ,Frequency: 120V ,60HzOver Current Protection: 1x thermal ,2 pole ,10 ampSurge Test Conditions: Per ANSI/IEEE C62.41 – IEEE587 Cat. A & B test waveformsTotal Harmonic Distortion: Less than 1%VA ,Watt Capacity: 1800Transformer Type: Hospital Grade ,low impedance transformer-based line isolation transformerOutput Receptacles: 6 x 5-20R-HGOuput Amp Capacity: 15Input Cord Length (ft.): 10Input Plug Type: NEMA 5-20P-HGNoise Suppression Rating: 35-65 DBUnit Dimensions (hwd ,in.): 7.75 x 8.25 x 12.25Certifications:Tested to UL60601-1 |
| Features |

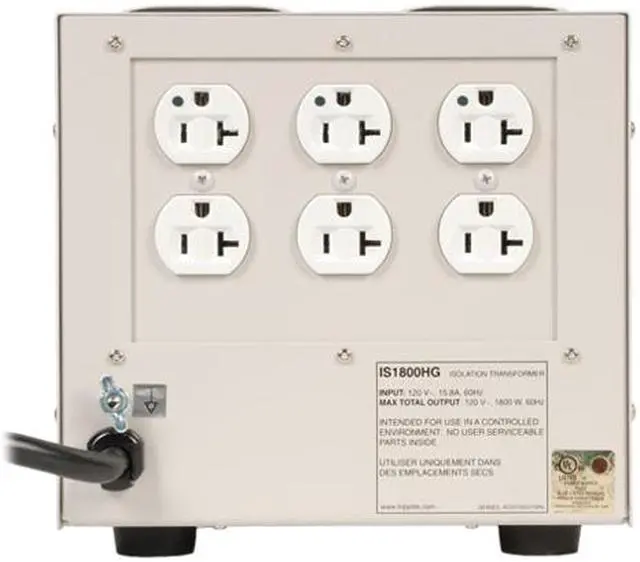

The IS1800HG Medical Grade Isolation Transformer offers line isolation and continuous noise filteringInternal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC lineFull UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas.Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral to ground bonding eliminates common mode noise ,providing an isolated ground reference for sensitive equipmentServes as an inexpensive alternative to dedicated circuits and site electrical upgradesRemoves EMI/RFI noise ,utility switching transients ,load-generated harmonics and ground loopsActive transformer filtering offers continuous common-mode noise rejection with no wearable parts ,unique ability to reduce surges in the worst of power environments to harmless levelsReduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common modeIncludes 6 widely spaced NEMA5-20R hospital-grade output receptacles ,a 10-ft. power cord ,hospital-grade input plug ,circuit breaker overload protection ,and lighted power switchShips with NEMA5-20P input plug installed ,package includes NEMA5-15P user-installable hospital-grade replacement plug for compatiblity with common 15A wall receptaclesRugged all-metal unit housing ,ships ready for upright tower placement in any industrial ,medical ,office or network environment |
| Weight |
58.75 |
| First Listed on Newegg |
April 15 ,2013 |
2 reviews for Tripp Lite Isolation Transformer 1800W Medical Surge 120V 6 Outlet Taa Gsa
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
bcd –
Overall Review: I purchase this in lieu of putting in a dedicated circuit for my home theater room. There was a lot of DC noise on the line and this device isolated it right away. Not sure if it is power of suggestion but the play back of music seems so much better and overall the quiet is very quiet. This thing seems to do what it claims. I am going to get another for my tv room. Oh, and there is a very slight hum from this device I was able to move it around enough that I don’t hear it any longer.
Gregory –
Overall Review: I use the isolation xformer for my audio system and it works well the reduce noise and give blacker backgrounds.
