Synology 8 bay RackStation RS1221RP+ Rackmount NAS (Diskless)
Original price was: $2,169.38.$1,771.47Current price is: $1,771.47.
Synology RackStation RS1221+/RS1221RP+
Small Yet Powerful
Reliable storage for your data. Enjoy easy, fast access to your data anywhere, anytime. It delivers redundancy* and service continuity features in a small factor. As your business or data grows, you can expand easily. Data management is also made easy.
* Only RS1221RP+ offers redundant power supplies.
Compute
AMD Ryzen V1500B quad-core 2.2 GHz
Throughput
2,300 MB/s seq. read, 100K 4K random read IOPS1
Memory
4 GB ECC DDR4, Up to 32 GB
Compact
30cm depth (38cm for RP model)
A compact design for space efficiency
The RS1221+ and its RX418 expansion units are designed to help you save space in compact deployments. At only 30 centimeters, half the length of a typical 2U unit, it fits perfectly snug onto 2-post or shallow rackmount enclosures. The RS1221RP+ with dual power supplies comes in at 38 cm, also fitting most shallow depth enclosures.2
- Fits into shallow rackmount enclosures
- Easy-to-install on 2-post racks
Built for reliability
Redundant power
Reduce the chance that power disruptions on a single distribution channel or PDU causes data and service availability degradation.
Maximize service availability
When paired with another identical unit, Synology High Availability enables automatic minute-level failover between two clustered servers in the event of a server failure to minimize service downtime.
Data integrity and protection
ECC memory and the Btrfs file system bring higher reliability and snapshot capabilities to help prevent data corruption and simplify data protection.
High performance storage for anything
Up to 2,315/1,147 MB/s sequential read and write throughput and over 100K/54K random read/write IOPS ensures ample performance for demanding workloads.1
With room to grow with you
Easily upgrade the RS1221+/RS1221RP+ to match your usage environment, whether it’s for performance, faster networking, or higher storage capacity.3
SSD cache
Boost read/write IOPS over HDD-only arrays by 16X or more with NVMe or SATA SSD Cache4
10GbE ready
Improve I/O with faster SFP+ or RJ-45 networking
Storage expansion
Expand to 12 drive bays with a RX418 expansion unit
Hyper Backup
A comprehensive backup and recovery solution for added data protection. Create backup destinations locally, on another Synology device, rsync servers, or cloud-based destinations, such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2 Storage, a dedicated backup destination for Synology devices. Deduplication, integrity checks, and incremental transfer technology reduce bandwidth and storage use.
Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.
Protect your entire office with Active Backup
The Active Backup suite enables administrators to easily secure their entire IT infrastructure by backing up mission-critical data to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Benefit from deduplication, multiversioning to quickly jump back in time, and additional data efficiency optimizations for reduced bandwidth and storage use.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports mainstream virtualization solutions to enhance work efficiency with an easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally, Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments.
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.
Powered by Synology DiskStation Manager
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.
Synology Drive
Instantly access your NAS files across multiple devices whenever you want, wherever you are.
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Surveillance
Protect your home or business with intelligent monitoring and video management tools.
Collaboration Suite
Satisfy all team collaboration needs behind the safety of your own private cloud with Synology Office, Calendar, and Chat.
RackStation RS1221+
1. Power indicator
2. Power button
3. Alert Off Button
4. Status indicator
5. Alert indicator
6. Drive status indicator
7. Drive tray
8. System fan
9. PCIe expansion slot
10. Reset button
11. USB 3.2 Gen 1 port
12. 1GbE RJ-45 port
13. Expansion port
14. Console port
15. Power port
RackStation RS1221RP+
1. Power indicator
2. Power button
3. Alert Off Button
4. Status indicator
5. Alert indicator
6. Drive status indicator
7. Drive tray
8. System fan
9. PCIe expansion slot
10. Reset button
11. USB 3.2 Gen 1 port
12. 1GbE RJ-45 port
13. Expansion port
14. Console port
15. Power port
16. PSU Indicators & Alert Off Buttons
Notes:
1. Performance testing conducted by Synology with 10GbE NIC installed. Actual results may vary depending on system configuration, testing methods, and other environmental variables. Check the performance page for additional details.
2. Compared to typical 2U rackmount chassis depth of 24″ (61cm) or more. Actual fit will may depend on cabinet design, including usable space, cable routing, weight tolerance, and more. Synology is unable to provide guidance on compatibility with specific rackmount equipment.
3. Network adapter cards, expansion units, other PCIe add-in-cards, and storage drives are sold separately. Refer to the compatibility list for compatible devices.
4. NVMe SSD cache can be enabled via a M2D20 or E10M20-T1 PCIe expansion card and 2x Synology SNV3400/3500 M.2 NVMe SSDs. Read/write SATA SSD cache can be enabled via 2x Synology SAT5200 2.5″ SATA SSDs.
| Best Seller Ranking |
#19 in Rackmount NAS |
|---|---|
| Brand |
Synology |
| Model |
RS1221RP+ |
| Port RJ-45 |
4 x 10/100/1000M |
| Port USB |
2 x USB3.2 Gen 1 |
| Port eSATA |
1 x eSATA |
| HDD Interface |
8 x SATA (8 x Bay) |
| Port Others |
1 x PCIe 3.0 4-lane x8 slotSupports network interface cards and M.2 NVMe SSD adapter cards for SSD cache |
| Form Factor |
8-Bay |
| Processor |
AMD Ryzen V1500B quad-core 2.2 GHz |
| Installed Memory |
4GB DDR4 |
| Max Memory Capacity |
32GB |
| Included HDD Capacity |
Diskless System |
| Drive Compatibility |
3.5" SATA HDD2.5" SATA HDD2.5" SATA SSD |
| RAID |
RAID 0 ,1 ,5 ,6 ,10 ,JBOD ,Basic ,Synology Hybrid RAID (SHR) |
| Supported Protocols |
SMB ,AFP ,NFS ,FTP ,WebDAV ,CalDAV ,iSCSI ,Telnet ,SSH ,SNMP ,VPN (PPTP ,OpenVPN ,L2TP) |
| LEDs |
Power IndicatorStatus IndicatorAlert IndicatorDrive Status Indicators |
| Power |
100 V to 240 V AC ,50/60 Hz ,single phase |
| Features |
High PerformanceTackle multi-user environments effortlessly with up to 2,315 MB/s read and 1,147 MB/s write performanceCompact DeploymentThe RS1221+ and RS1221RP+ feature a short depth of just 298 mm and 399 mm respectively10GbE ReadyImprove network performance by 5X with a PCIe SFP+ or RJ-45 network cardHigh AvailabilityConfigure two units together to create a Synology High Availability (SHA) cluster for maximum service uptime and minute-level failover |
| Usage |
High read/write performance with RAID |
| Temperature |
Operating temperature: 0°C to 35°C (32°F to 95°F)Storage temperature: -20°C to 60°C (-5°F to 140°F) |
| Humidity |
5% to 95% RH |

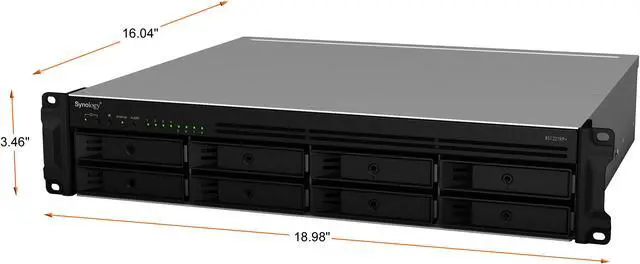

| Dimensions |
3.46" x 18.98" x 16.04" (with server handles) |
| Weight |
18.52 lbs. |
| Package Contents |
1 x RS1221+/RS1221RP+ main unit1 x Quick Installation Guide1 x Accessory pack2 x AC power cords (RS1221RP+) |
| First Listed on Newegg |
January 14 ,2021 |
5 reviews for Synology 8 bay RackStation RS1221RP+ Rackmount NAS (Diskless)
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
EMBLEME Communication –
Pros: – Rackmount
– Minimal dept (works with shallow racks)
– Good cooling
– Possibility of 2 PSU
– Possibility of extra disks units *.
– SSH is available for advanced system admin**.
*Read well on Synology website if you are planning to use it.
** DSM is NOT a regular linux release, so make SURE you know what you are doing. Refer to the documentation and community forum to learn more. Cons: – Not coming with the SSD Cache controller (or Dual 10gb network card / SSD controller)
– Huts when it falls on your hand during installation (haha… but seriously, be careful it really hurts) Overall Review: Worth it !
I had few Regular DS with 4 disk then i bought the Synology 8 bay RackStation RS1221+ even if i was not really sure of the price difference worth it. It really does! When i received, I opened it and added RAM. It was really easy because everything is well designed and placed inside. The cooling system is basic but efficient.
We are doing an extensive use and everything is stable.
My ears hurt –
Pros: Not sure, it’s so loud that it’s unusable, so it’s either going in the trash or getting hacked to replace the horrible PSUs/PSU fans. Cons: LOUD. Really REALLY loud. Overall Review: This unit is extremely loud. Don’t get it unless you are putting it in a sound-isolated location, as the dual PSUs have no fan control options and the cheap fans they used are louder than a jet. If you are set on this product line, get the RS1221+, as you can replace its internal fans with quieter ones and all is good. I replaced the internal fans on my RS1221RP+, but the PSU fans are so loud that you would never be able to tell. I powered the unit on for around 3 hours, and had to shut it down due to the noise. Here I am 2 hours later and my ears still hurt. Shame on you Synology, you cheaped out on the PSUs and I’m officially done with you!
Thomas F. –
Pros: Unit price and Features Cons: The RS Series are LOUD. I was prepared for louder but not idling 737 airplane. And this one, with redundant power supplies is made louder. We have always utilized a Rack for our server and network hardware to save space. But, it is not in its own soundproof room.
To compare, this one device, with its 8 Synology branded drives, generates more noise than my 2 old servers, with their 4 external RAIDs. Each server hs 4 or 8 drives inside. Plus there are 2 massive rackmount UPS systems. They just make mild hum all day everyday.
The RS1221RP+ should come with an OSHA warning Overall Review: Only recommend if it is going in a sound isolating room. Otherwise, buy a DS series.
