SUPERMICRO SYS-6019P-WTR 1U Rackmount Server Barebone
$2,507.66

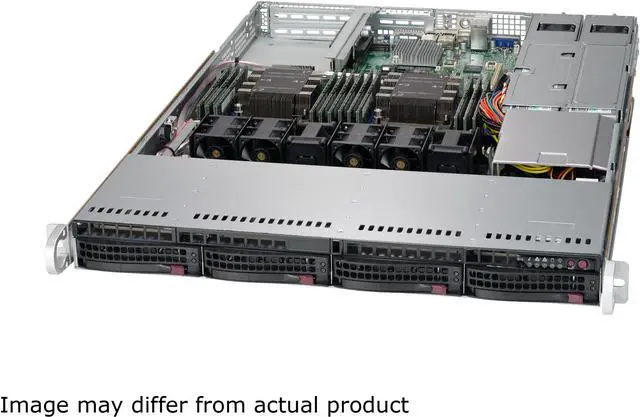

SuperServer 6019P-WTR
Supporting dual 2nd Gen Intel Xeon Scalable Processors (LGA 3647) and up to 3TB ECC 3DS RDIMM / LRDIMM DDR4 memory, the Supermicro SuperServer 6019P-WTR 1U server barebone can be configured to deliver incredible computing power for various intensive applications. It provides an array of slots and ports to scale alongside your growing business. The high-efficiency 750W redundant power supplies ensure all components run stably at full load around the clock.
Ideal for:
- Web Server, Firewall Apps
- Corporate-Wins, DNS, Print, Login
- Gateway, provisioning servers
- Compact Network Appliance
- Cloud Computing
Excellent Expandability
The 12 DDR4 DIMM sockets support up to 3TB 3DS ECC RDIMM/LRDIMM DDR4-2933MHz memory. Innovative Intel Optane memory is also supported. The motherboard comes with two PCI-E 3.0 x8 (FHHL) slots, one PCI-E 3.0 x8 (LP) slot, one PCI-E 3.0 x16 for Add-on-Module (AOM), and four SATA 3 ports that support RAID 0/1/5/10.
M.2 Slot for Fast Storage
The motherboard has one M.2 slot. M.2 supports a variety of card sizes with increased functionality and spatial efficiency. It supports M.2 PCI-E 3.0 x4 (32 Gb/s) SSD cards in the 2242, 2260, 2280 and 22110 form factors.
Advanced Cooling System
Four counter-rotating 4cm PWM fans in the middle of the chassis provide excellent cooling efficiency for the entire server system while not producing excess noise. Less heat means higher performance without throttling.
Great Power Supply
The high-efficiency, 80 PLUS Platinum Certified 750W redundant power supplies ensure all the components run stably and quietly at full load. The redundant capability ensures no downtime for your server system. Your clients can be served 24/7.
Super X11DDW-L

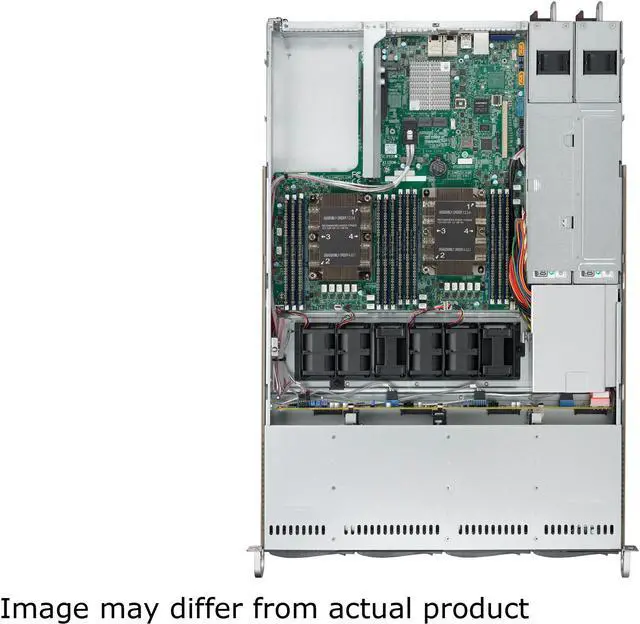

Top View
Front View
Rear View
| Motherboard | |
|---|---|
| Model | Super X11DDW-L |
| Processor/Cache | |
| CPU |
|
| Cores | Up to 28 Cores |
| Notes |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Notes |
|
| On-Board Devices | |
| Chipset | Intel C621 chipset |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Controllers | Dual LAN with Gigabit Ethernet from C621 |
| IPMI |
|
| Video | ASPEED AST2500 BMC |
| Input / Output | |
| SATA | 4 SATA3 (6Gbps) ports |
| LAN |
|
| USB | 4 USB 3.0 ports (rear) |
| Video | 1 VGA port |
| Serial Port / Header | 1 COM port (header) |
| DOM | 2 SuperDOM (Disk on Module) ports |
| System BIOS | |
| BIOS Type | AMI 32Mb SPI Flash ROM |
| Management | |
| Software |
|
| Power Configurations | ACPI / APM Power Management |
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
|---|---|
| Form Factor | 1U Rackmount |
| Model | CSE-815TQC-R706WB2 |
| Dimensions | |
| Width | 17.2″ (437mm) |
| Height | 1.7″ (43mm) |
| Depth | 23.5″ (597mm) |
| Package | 23.4″ (W) x 8.5″ (H) x 29.7″ (L) |
| Gross Weight | 46 lbs (20.9 kg) |
| Available Colors | Black |
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| Note | (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
| Drive Bays | |
| Hot-swap | 4 Hot-swap 3.5″ SATA3 drive bays |
| Backplane | |
| Type | SAS/SATA HDD Backplane |
| System Cooling | |
| Fans | 4 counter-rotating 4cm PWM fans |
| Power Supply | |
| Type | 700W/750W Redundant Power Supplies with PMBus |
| Total Output Power | 700W/750W |
| Dimension (W x H x L) | 54.5 x 40.25 x 320 mm |
| Input |
|
| +12V |
|
| +5Vsb | Max: 3A / Min: 0A |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 |
| Certification | 80 PLUS Platinum Level |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. |
|
