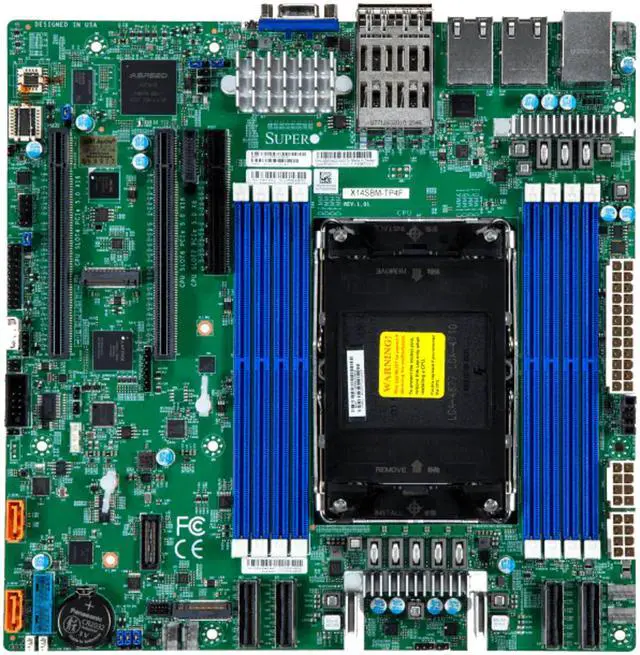

SUPERMICRO MBD-X14SBM-TP4F-O Micro ATX Server Motherboard
$1,023.81
Supermicro X14SBM-TP4F Server Motherboard, Intel® Xeon® 6700E-series processors, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
| Best Seller Ranking |
#72 in Server Motherboards |
|---|---|
| Brand |
SUPERMICRO |
| Model |
MBD-X14SBM-TP4F-O |
| CPU Socket Type |
LGA 4710 |
| CPU Type |
Intel Xeon |
| Number of Processor Support |
1 |
| CPU Features |
CPU TDP supports Up to 350W TDPUp to 144 (E) cores |
| Memory Slots |
8 x DDR5 288-pin |
| Memory Standard |
DDR5 6400 |
| Maximum Memory Supported |
1TB |
| ECC Supported |
Yes |
| Registered |
Yes |
| PCI Express 5.0 x16 |
2 |
| PCI Express x8 |
1 PCIe 5.0 x84 PCIe 5.0 x8 MCIO connector |
| SATA |
2 x SATA 6.0Gb/s |
| M.2 |
M.2 Interface: 2 PCIe 5.0 x2Form Factor: 2280/22110Key: M-Key |
| LAN Chipset |
Quad LAN with 10GBase-T and 10G SFP+ with Intel X710-TM4 |
| LAN Speed |
10Gbps |
| Max LAN Speed |
4 x 10Gbps |
| Back I/O Ports |
SATA: 2 SATA3 port(s)LAN- 2 RJ45 10 Gigabit Ethernet LAN ports- 1 RJ45 Dedicated IPMI LAN port- 2 10G SFP+ LAN portsUSB: 4 USB 3.2 Gen1 port(s) (2 via header ,2 rear)Video Output: 1 VGA D-Sub Connector port(s)Serial Port: 1 COM Port(s) (1 header)TPM- 1 TPM Header- 1 TPM TPM 2.0 onboard |
| Form Factor |
Micro ATX |
| Dimensions W x L |
9.6" x 9.6" |
| First Listed on Newegg |
October 15 ,2024 |
