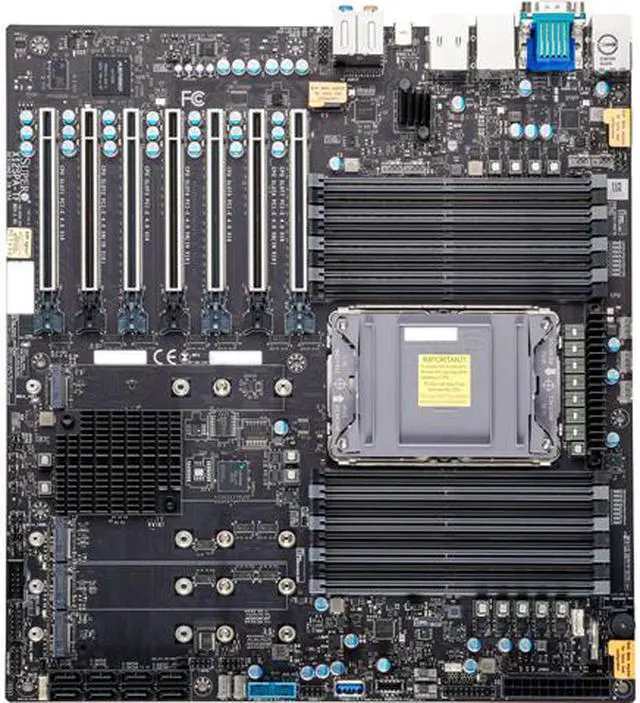

SUPERMICRO MBD-X12SPA-TF-O Extended ATX Server Motherboard
$635.80
SUPERMICRO MBD-X12SPA-TF-O Extended ATX Server Motherboard LGA 4189 Intel C621A
| Brand |
SUPERMICRO |
|---|---|
| Model |
MBD-X12SPA-TF-O |
| CPU Socket Type |
LGA 4189 |
| CPU Type |
Supports 3rd Gen Intel Xeon Scalable processors ,Intel Xeon W-3300 Processor |
| North Bridge |
Intel C621A |
| Number of DDR4 Slots |
16 x 288-pin |
| DDR4 Standard |
DDR4 3200 |
| Maximum Memory Supported |
4TB |
| ECC Supported |
Yes |
| PCI Express 4.0 x16 |
4 |
| PCI Express x8 |
3 x PCI Express 4.0 x8 (in x16 slot) |
| SATA |
8 x SATA 6.0Gb/s |
| SATA RAID |
0/1/5/10 |
| M.2 |
M.2 Interface: 4 PCI-E 4.0 x4Form Factor: 2260/2280/22110Key: M-KeyM.2 support to RAID 0,1 ,5 ,10 ,VROC key is required for RAID. |
| Onboard Video Chipset |
Aspeed AST2500 |
| LAN Chipset |
Intel I210-AT |
| Second LAN Chipset |
Marvell AQC113 |
| Third LAN Chipset |
Realtek RTL8211F PHY (dedicated IPMI) |
| Max LAN Speed |
10Gbps + 1Gbps |
| RJ45 |
1 x RJ45 Gigabit Ethernet LAN ports1 x RJ45 10GBase-T ports1 x RJ45 Dedicated IPMI LAN port |
| USB 1.1/2.0 |
2 x USB 2.0 |
| USB 3.0 |
4 x USB 3.2 Gen1 |
| USB 3.1 |
2 x USB 3.2 Gen2 (1 Type A ,1 Type C) |
| USB 3.2 |
1 x USB 3.2 Gen2x2 (1 Type C) |
| Onboard USB |
2 x USB 2.0 (via headers)2 x USB 3.2 Gen 1 (via headers) |
| Form Factor |
Extended ATX |
| Dimensions W x L |
12" x 13" |
| First Listed on Newegg |
May 20 ,2021 |
2 reviews for SUPERMICRO MBD-X12SPA-TF-O Extended ATX Server Motherboard
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Erik L. –
Pros: Stable a lot of feature Cons: no overclock option
dont support udimm only Reg Dimm
Must buy vroc key and module tpm-2.0 for my windows 11 enterprise $$$$$$ Overall Review: great board and superomicron great tech support
