SUPERMICRO MBD-X11SCL-IF-O Mini ITX Server Motherboard

(2 customer reviews)

$207.96

SUPERMICRO MBD-X11SCL-IF-O Mini ITX Server Motherboard LGA 1151 Intel C242

SKU: 91B16721 Category:
Additional information
Best Seller Ranking

#79 in Server Motherboards

Brand

SUPERMICRO

Model

MBD-X11SCL-IF-O

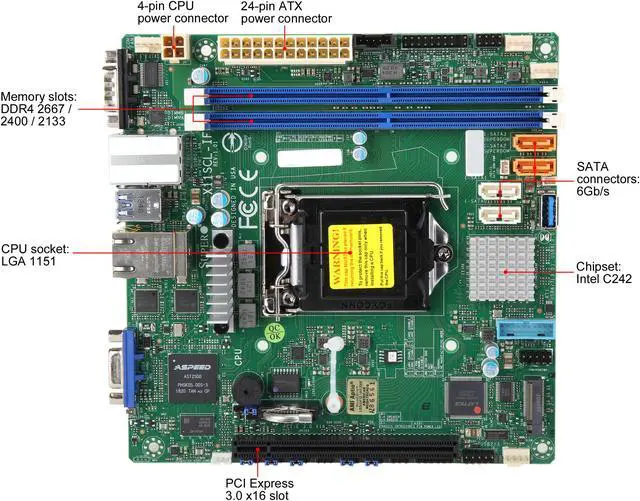

CPU Socket Type

LGA 1151

CPU Type

Supports:Intel Xeon E-2100 ProcessorIntel Xeon E-2200 Processor8th/9th Generation Intel Core i3

,

Pentium

,

Celeron Processor

North Bridge

Intel C242

DDR4 Standard

DDR4 2667

,

2400

,

2133 MHz ECC SDRAM 72-bit

Maximum Memory Supported

Up to 64GB Unbuffered ECC UDIMM

,

DDR4-2666 MHz

,

in 2 DIMM slots

PCI Express 3.0 x16

1 x PCI-E 3.0 x16 (in x16 slot)

SATA

4 x SATA 6.0Gb/s

SATA RAID

0/1/5/10

Onboard Video Chipset

Aspeed AST2500 BMC

LAN Chipset

Intel I210

LAN Speed

10/100/1000Mbps

Second LAN Chipset

Intel I210

Second LAN Speed

10/100/1000Mbps

Max LAN Speed

2 x 1Gbps

COM

1

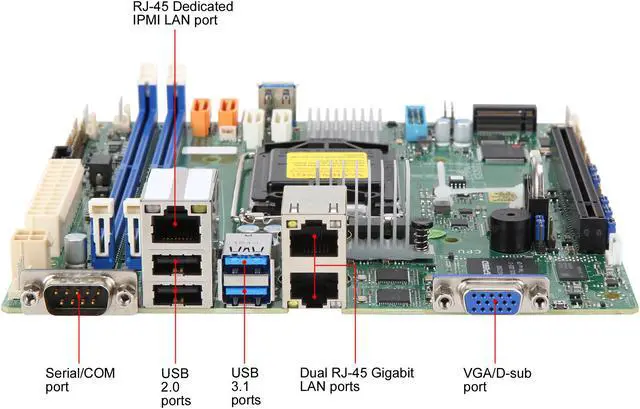

RJ45

2 x RJ451 x IPMI

USB 1.1/2.0

2 x USB 2.0

USB 3.1

2 x USB 3.1

Features

Single socket H4 (LGA 1151) supports Intel Xeon processor E-2100

,

Intel 8th Gen. Core i3 series

,

Intel Celeron and Intel PentiumIntel C242 chipsetUp to 64GB DDR4 2666 MHz ECC UDIMM

,

2 x DIMM slotsDual GbE LAN with Intel i210-AT4 x SATA3 (6 Gbps)

,

RAID 0

,

1

,

5

,

10M.2 NGFF connectorM.2 Interface: 1 x PCI-E 3.0 x4Form Factor: 2280Key: M-Key Double Height Connector

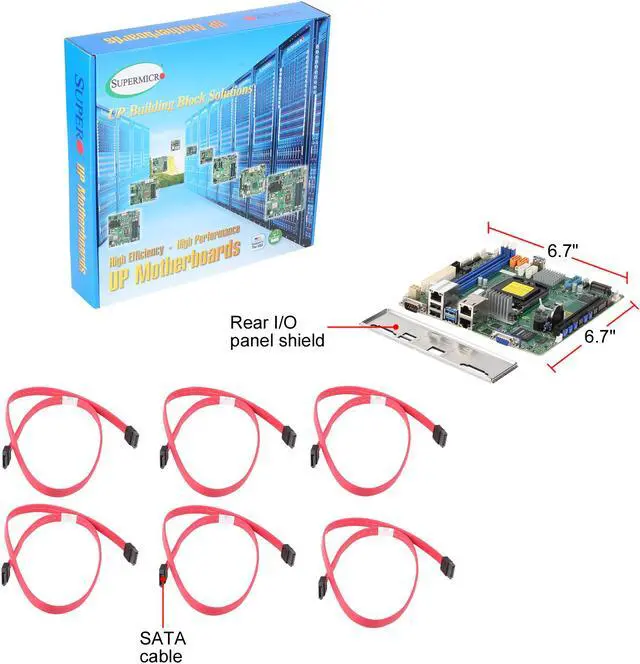

Form Factor

Mini ITX

Dimensions W x L

6.7" x 6.7"

First Listed on Newegg

February 19

,

2019

Reviews (2)

2 reviews for SUPERMICRO MBD-X11SCL-IF-O Mini ITX Server Motherboard

  1. gmg

    Pros: This is great little server board for Xeon E series processors. Supermicro boards have been easy for me to set up and this one is, too. It’s nice to have m.2 and be able to use ECC memory. Overall Review: This board is recommended for a small server for home or office. With a small case it doesn’t take up much room on my desk.
