Silverstone RM23-502 2U dual 5.25″ Drive Bay ATX Rackmount Industrial Storage Server Chassis with USB 3.1 Gen1 interface
$277.22
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content.css)
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content_responsive.css)

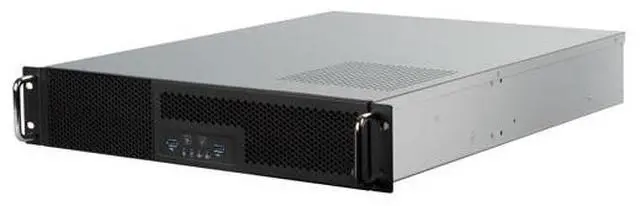

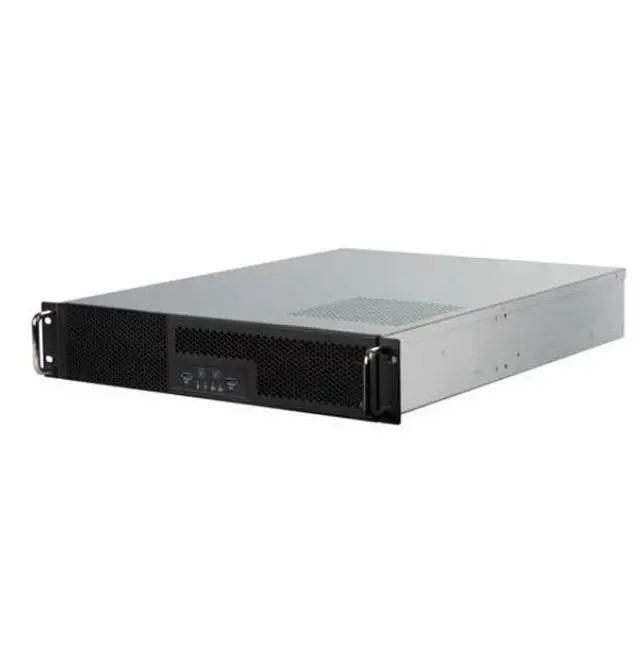

2U dual 5.25″ drive bay ATX rackmount industrial storage server chassis with USB 3.1 Gen1 interface
- Supports ATX power supplies of up to 180mm depth
- Supports 1 x 2.5″ SSD and up to 5 x 3.5″ HDD
- 5Gbps USB 3.1 Gen1 interface (downward compatible with USB 2.0 & USB 1.1)
- Dual 5.25″ expansion bay brings flexibility in installing 5.25″ devices
- Built-in fan bracket which supports up to three 80mm x 38mm fans
- Supports up to ATX (12″ x 9.6″) motherboard
- Supports 7 low profile expansion slots
- Reserved mounting holes for sliding rails which can be easily installed. Can be used with RMS03-26 rail (rail slide sold separately)
| Model No. | SST-RM23-502 |
|---|---|
| Motherboard | ATX (12″ x 9.6″), Micro-ATX (9.6″ x 9.6″), Mini-ITX (6.7″ x 6.7″) |
| Drive Bay | External – 5.25″ x 2, Internal – 3.5″ x 5,2.5″ x 1 |
| Cooling system | Front – 80mm x 3, Rear – 60mm x 1 |
| Expansion Slot | Low profile x 7 |
| Front buttons | Power On / Off, system reset |
| Dimension | 430mm (W) x 88.5mm (H) x 580mm (D), 22.07 Liters |
| Chassis form factor | 2U |
|---|---|
| Main metal thickness | 1mm |
| Power Supply | Standard PS2 (ATX), supports up to 180mm long |
| Limitation of CPU cooler | 65mm |
| Front I/O Port | USB 3.1 Gen 1 Type-A x 2 * |
| Indicators | Power status x 1, HDD activity x 1, LAN activity x 2 |
| Net Weight | 6.8 kg |
* RM23-502’s USB internal cable is 800mm long, so if you are connecting an external enclosure to the USB 3.1 port, we recommend using it with shorter cables to prevent performance loss.
| Model No. |
SST-RM23-502 |
|---|---|
| Motherboard |
ATX (12" x 9.6") ,Micro-ATX (9.6" x 9.6") ,Mini-ITX (6.7" x 6.7") |
| Drive Bay |
External – 5.25" x 2 ,Internal – 3.5" x 5,2.5" x 1 |
| Cooling system |
Front – 80mm x 3 ,Rear – 60mm x 1 |
| Expansion Slot |
Low profile x 7 |
| Front buttons |
Power On ,Off ,system reset |
| Dimension |
430mm (W) x 88.5mm (H) x 580mm (D) ,22.07 Liters |
| Chassis form factor |
2U |
| Main metal thickness |
1mm |
| Power Supply |
Standard PS2 (ATX) ,supports up to 180mm long |
| Limitation of CPU cooler |
65mm |
| Front I/O Port |
USB 3.1 Gen 1 Type-A x 2 * |
| Indicators |
Power status x 1 ,HDD activity x 1 ,LAN activity x 2 |
| Net Weight |
6.8 kg |
| Best Seller Ranking |
#60 in Server Chassis |
| Type |
Micro ATX |
| First Listed on Newegg |
May 30 ,2024 |
