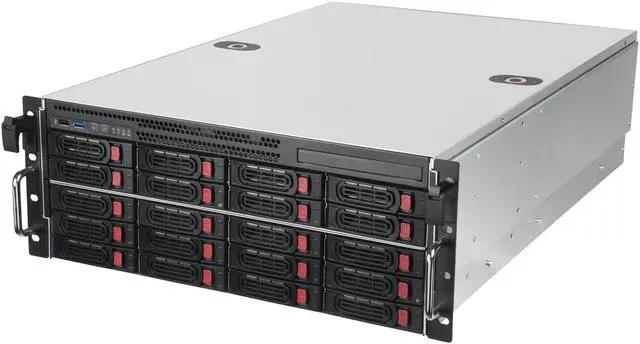

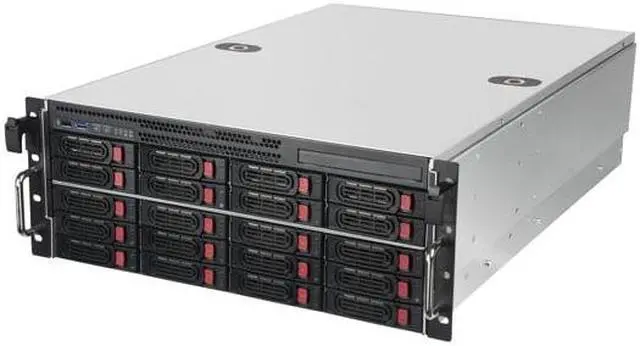

Silverstone 4U 20-bay 2.5″ / 3.5″ HDD / SSD rackmount storage server chassis with Mini-SAS HD SFF-8643 12 Gb/s interface
Original price was: $1,236.06.$1,222.42Current price is: $1,222.42.
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content.css)
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content_responsive.css)
4U 20-bay 2.5″ / 3.5″ HDD / SSD rackmount storage server chassis with Mini-SAS HD SFF-8643 12 Gb/s interface
- Backplane support for 20 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO

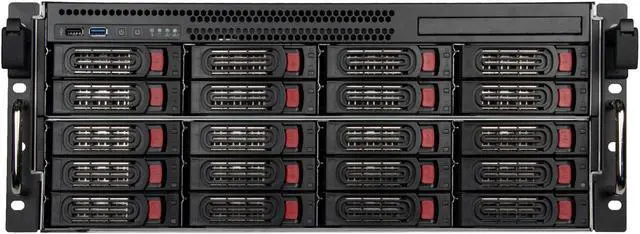

- Supports twenty 2.5″/3.5″ SAS/SATA HDD/SSD hot-swap trays

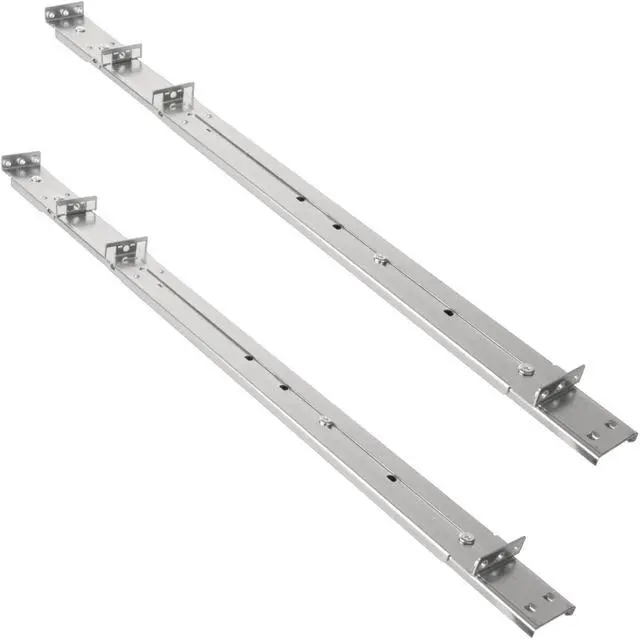

- Ball bearing sliding rails included for simple server rack integration
- Includes three 120mm x 38mm hot-swappable PWM fans
- Auto lock handle for convenient fixation of chassis into rack cabinet
- Supports ATX (PS2) / Mini Redundant PSUs*
- Supports E-ATX or SSI-EEB motherboards
- Supports 7 standard PCI / PCIe slots
- Independent drive status LED
| Model No. | SST-RM43-320-RS |
|---|---|
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Drive Bay: External | 3.5″ hot-swap x 20 |
| HDD backplane | 20 ports SAS / SATA to Mini-SAS HD SFF-8643 x 5 with SGPIO |
| HDD Interface | SAS III / II / I, SATA III / II / I |
| Cooling system: Rear | 80mm x 2 fan slots |
| Limitation of CPU cooler | 148mm |

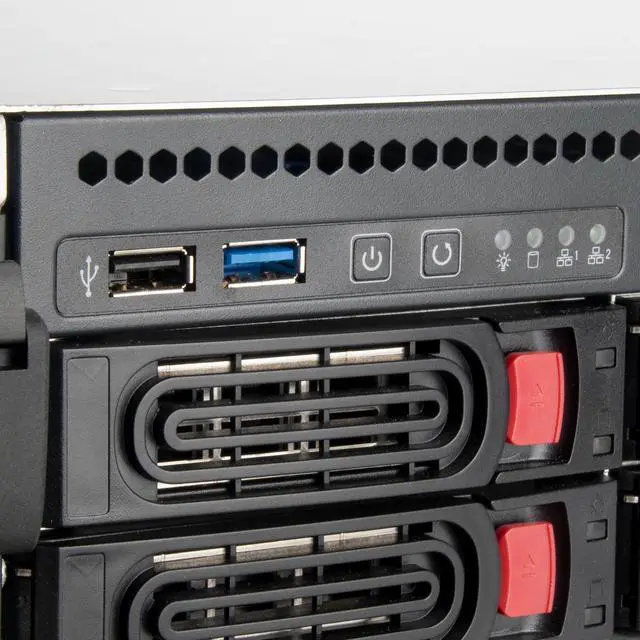

| Front I/O Port | USB 2.0 x 1, USB 3.1 Gen 1 Type-A x 1** |
| Chassis form factor | 4U |
|---|---|
| Main metal thickness | 1.0mm ~ 1.2mm |

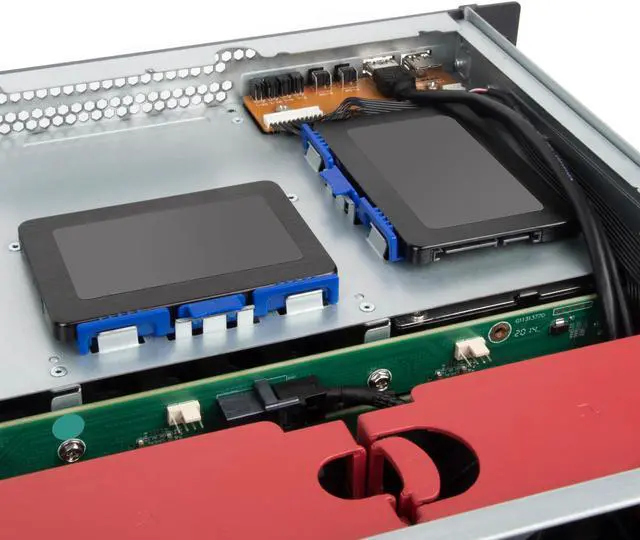

| Drive Bay: Internal | Slim optical drive x 1 (up to 12.7mm), 2.5″ x 2 (up to 15mm) |
| Power connector on HDD backplane | 4-Pin peripheral x 10 |
| Power Supply | ATX (PS2) / Mini Redundant* |

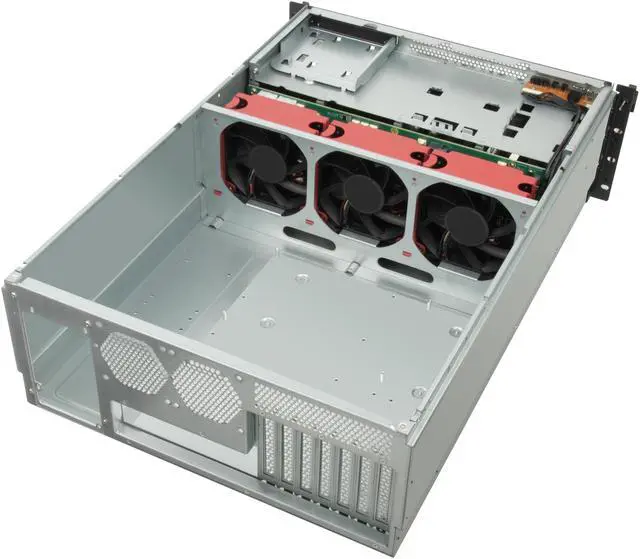

| Cooling system: Internal | Hot-swap 120 x 38mm PWM ball bearing fan x 3 |
| Expansion Slot | Standard profile PCI / PCIe x 7 |
| Front buttons | Power On / Off, system reset |
| LED indicator: Chasis | Power LED x 1: Blue, HDD Access x 1: Green , LAN LED x 2: Green |
|---|---|
| Dimension | 442mm (W) x 175mm (H) x 660mm (D), 51.1 liters |
| LED indicator: HDD Tray | HDD Power LED x 20: Yellow, HDD Access x 20: Blinking green |
|---|---|
| Net Weight | 16.2 kg |

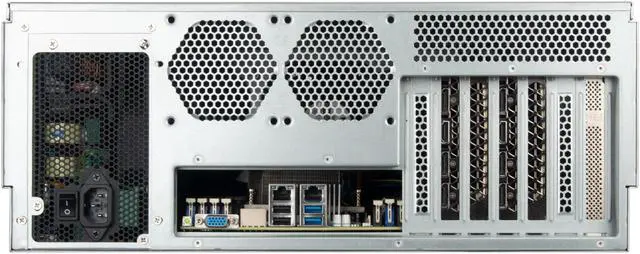

* Please make sure the mounting holes of your Mini Redundant PSU matches the mounting holes on the rear panel of RM43-320-RS (See below diagram)
** RM43-320-RS’s USB internal cable is 800mm long, so if you are connecting an external enclosure to the USB3.1 port, we recommend using it with shorter cables to prevent performance loss.
| Model No. |
SST-RM43-320-RS |
|---|---|
| Motherboard |
SSI-EEB ,SSI-CEB ,Extended ATX ,ATX ,Micro-ATX ,Mini-ITX |
| Drive Bay External |
3.5" hot-swap x 20 |
| HDD backplane |
20 ports SAS ,SATA to Mini-SAS HD SFF-8643 x 5 with SGPIO |
| HDD Interface |
SAS III ,II ,I ,SATA III ,II ,I |
| Cooling system Rear |
80mm x 2 fan slots |
| Limitation of CPU cooler |
148mm |
| Front I/O Port |
USB 2.0 x 1 ,USB 3.1 Gen 1 Type-A x 1** |
| Chassis form factor |
4U |
| Main metal thickness |
1.0mm ~ 1.2mm |
| Drive Bay Internal |
Slim optical drive x 1 (up to 12.7mm) ,2.5" x 2 (up to 15mm) |
| Power connector on HDD backplane |
4-Pin peripheral x 10 |
| Power Supply |
ATX (PS2) ,Mini Redundant* |
| Cooling system Internal |
Hot-swap 120 x 38mm PWM ball bearing fan x 3 |
| Expansion Slot |
Standard profile PCI ,PCIe x 7 |
| Front buttons |
Power On ,Off ,system reset |
| LED indicator Chasis |
Power LED x 1: Blue ,HDD Access x 1: Green ,LAN LED x 2: Green |
| Dimension |
442mm (W) x 175mm (H) x 660mm (D) ,51.1 liters |
| LED indicator HDD Tray |
HDD Power LED x 20: Yellow ,HDD Access x 20: Blinking green |
| Net Weight |
16.2 kg |
| Best Seller Ranking |
#38 in Server Chassis |
| Chassis Type |
Rackmount |
| First Listed on Newegg |
December 27 ,2024 |
