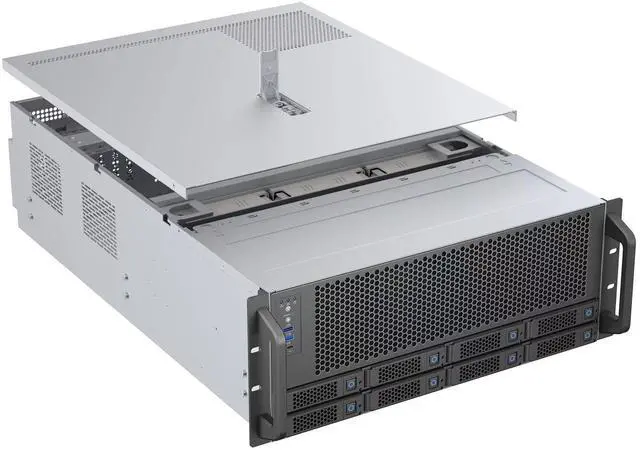

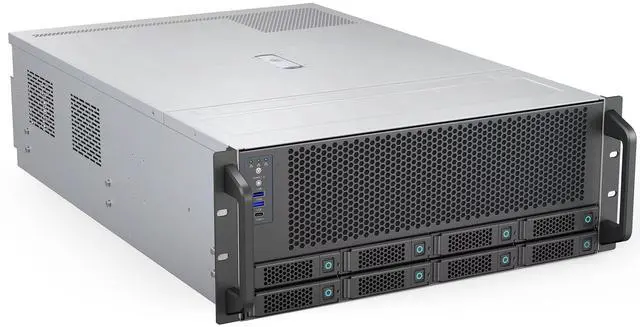

Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5″/2.5″ SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038
$619.36
| Best Seller Ranking |
#18 in Server Chassis |
|---|---|
| Brand |
Rosewill |
| Model |
RSV-AI01 |
| Chassis Type |
Rackmount |
| Form Factor |
4U |
| Color |
Black ,Silver |
| Case Material |
SGCC ,1.0mm |
| Motherboard Compatibility |
12" x 13" E-ATX ,12" x 9.6" ATX ,11.2" x 8.2" Mini-ATX and below |
| Power Supply |
Supports ATX power supply |
| LED Indicators |
Power status ,HDD activity ,2 x LAN activity |

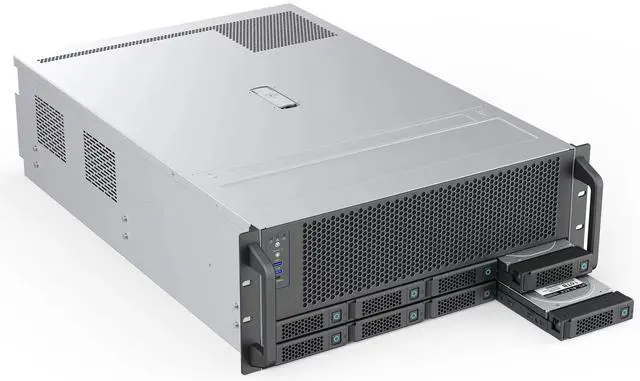

| Hot-Swap Drive Bays |
8 (SFF8643 with SGPIO and Temperature Control) |
| Internal 2.5 Drive Bays |
4 |
| Expansion Slots |
11 |
| Max CPU Cooler Height |
With GPU holder: 115mm ,Without GPU holder: 148mm |
| Max GPU Length |
Max. Length: With fan 330mm ,Without fan: 400mmMax. Height: With GPU holder: 117mm ,Without GPU holder: 154mm |
| Max PSU Length |
250 mm PS2 (ATX) |
| Front Ports |
2 x USB 3.0 ,1 x USB 3.2 Type C |
| Fan Options |

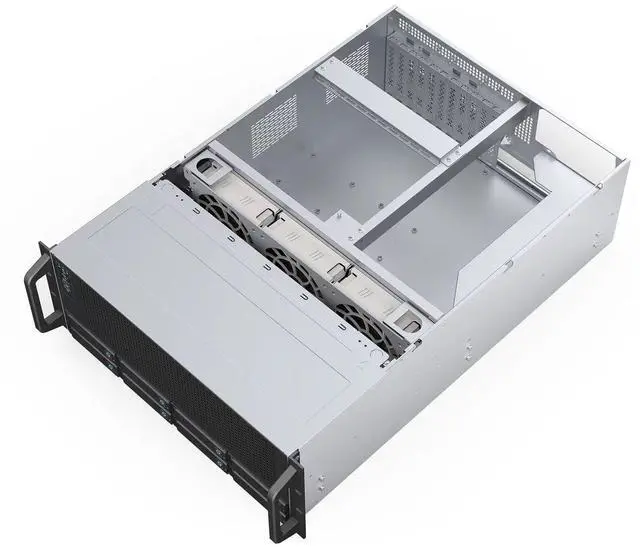

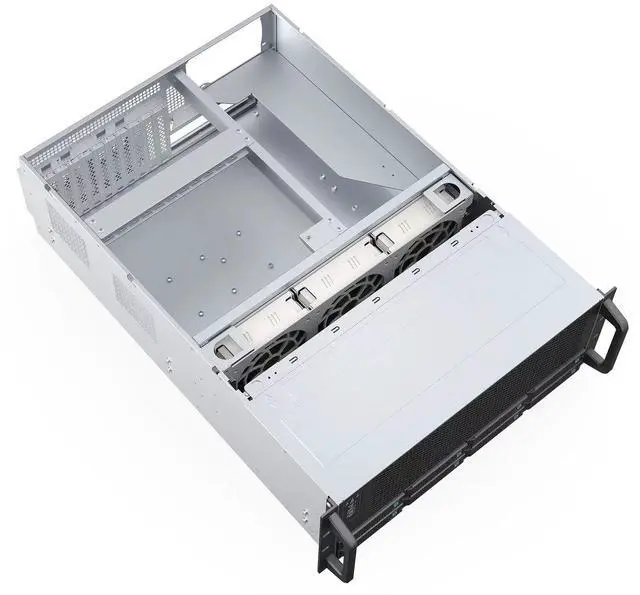

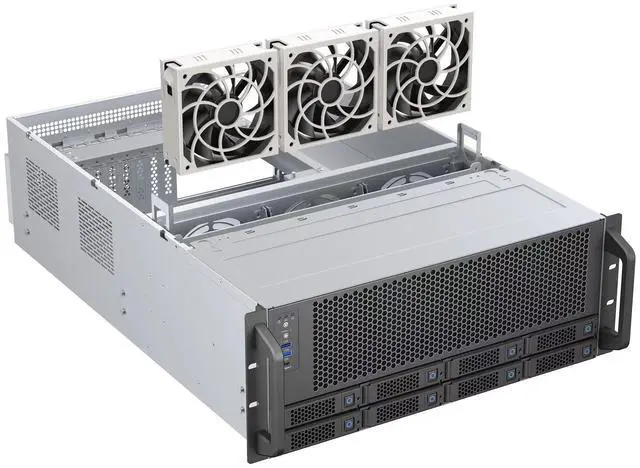

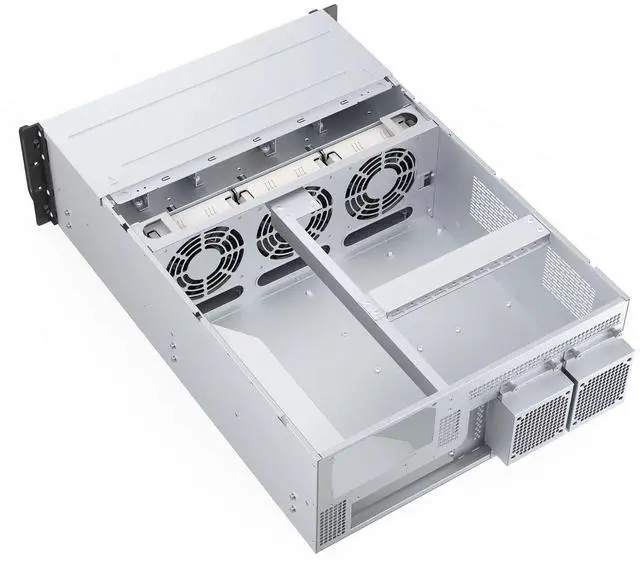

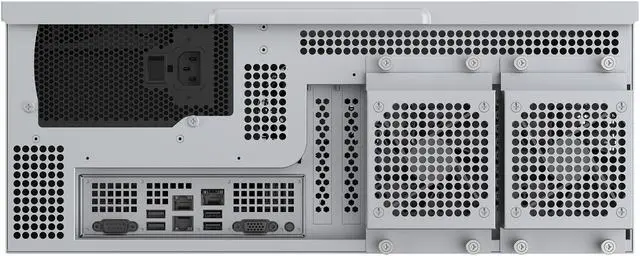

Middle: hot swap 3 x 12038 PWM (3 x two ball bearing fan included)Rear: 2 x 8038 (2 x two ball bearing fan included) |
| Features |

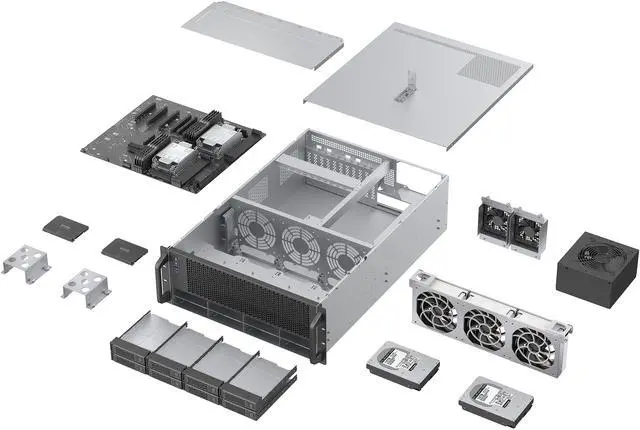

Rosewill 4U Server Chassis: A Powerful Platform for AI and GamingThe Rosewill 4U Server Chassis is a high-performance solution designed to handle demanding workloads ,particularly in AI and gaming applications. This robust 4U rackmount case supports up to four GPUs ,ensuring optimal performance for intensive AI training and inference tasks.Equipped with eight hot-swappable 3.5" SATA/SAS drive bays and four 2.5" SSD ,the chassis offers ample storage capacity for large datasets and virtual machines. The 12Gbps interface and SGPIO support enable high-speed data transfer and intelligent drive management.To keep components cool under heavy load ,the chassis features a robust cooling system with three 12038 hot-swap PWM fans and two 8038 fans. This ensures optimal airflow and temperature control ,preventing thermal throttling and system instability.The versatile connectivity options include USB 3.0 ,the latest USB 3.2 Type-C ports ,and front panel indicators for HDD and three LAN statuses ,providing flexible peripheral support and system monitoring.Designed for easy deployment ,the chassis comes with a pre-installed rail kit ,making it simple to mount in standard 19-inch racks. This all-in-one solution is ideal for AI servers ,game servers ,and small businesses seeking a powerful and reliable platform. |
| Dimensions H x W x D |
437.5mm x 176.5 mm x 650mm (17.22" x 6.95" x 25.60") |
| Weight |
17.00kg (37.48 lbs.) |
| First Listed on Newegg |
February 26 ,2025 |
2 reviews for Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5″/2.5″ SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Anonymous –
Overall Review: A large PC style ATX PSU will likely extend over the CPU socket (I was using a 1600w seasonic); meaning you will have to use an AIO/water cooling setup for the CPU, or at a minimum a 2u height cooler (this is on an ATX MB).
Overall the case has a ton of configuration options and will fit almost any setup you can dream up, its really well built and shipped/packaged excellently. Would reccomend this case to anyone who is trying to build a rack-mounted PC/Server using some consumer grade parts (i.e graphics cards).
jiehan –
Overall Review: Im disappointed in this product.
1/ The instructions for both the chassis and the include sliding rail are extremely lacking and confusing. It does not describe any port on the backplane.
2/ The chassis is 4U in total but its slightly offset, but not enough to move down 1 slot. So in reality it makes 5 rack units unusable for any else.

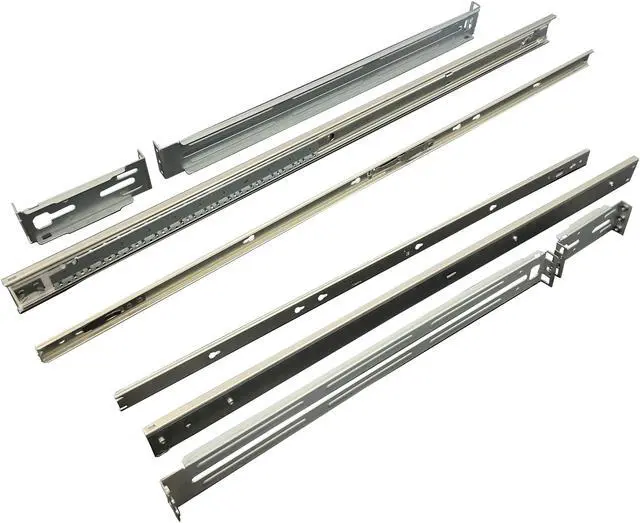

3/ The rails appear cheaply made and will bend after being mounted onto the rack. Its appears extremely unreliable.
4/ Fans are extremely loud and nonstandard
