PNY Quadro M6000 VCQM6000-24GB-PB 24GB 384-bit GDDR5 PCI Express 3.0×16 Dual Slot Workstation Video Card
$869.09
PNY NVIDIA Quadro M6000 24GB
REAL INTERACTIVE EXPRESSION
Workstation Graphics Card.
The NVIDIA M6000 24GB is the world’s most powerful workstation graphics card, giving you the extreme performance and on-board memory to take on your biggest visualization challenges.
Artists, animators, and editors can now work in real-time on their most complex projects with multiple layers and advanced effects. Plus, product designers and engineers don’t have to compromise on model complexity or image quality when working on large assemblies; they can now integrate interactive, physically based rendering and simulation to evaluate product design and functionality in entirely new ways. Geophysicists can also accelerate their time-to-insight in seismic exploration by holding substantially larger data sets in memory for faster processing and analysis.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
PNY provides unsurpassed service and commitment to its professional graphics customers. In addition, PNY delivers a complete solution that includes the appropriate adapters, cables, brackets, driver software installation disc, and documentation to ensure a quick and successful install.
- Support for any combination of four connected displays

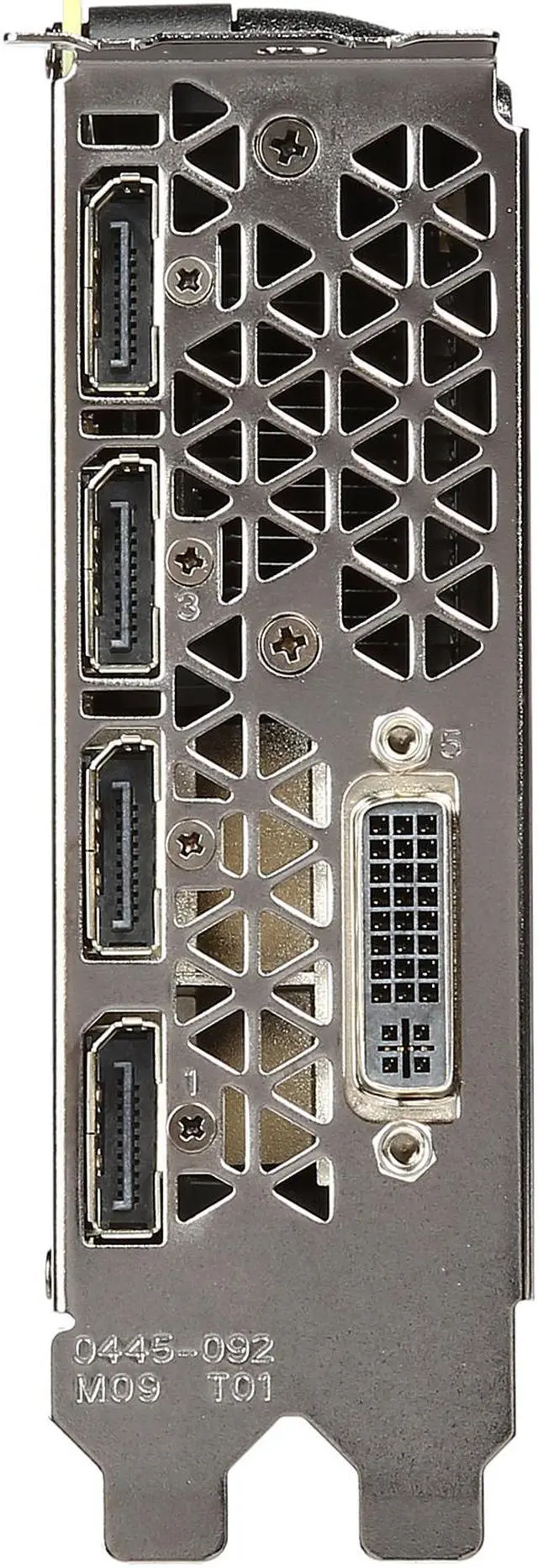

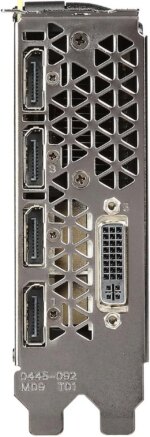

- Four DisplayPort 1.2 Connectors
- DisplayPort with Audio
- One DVI-I Dual-Link Connector
- VGA Support
- 3D Stereo Support
- NVIDIA GPUDirect™ Support
- Quadro Sync Compatibility
- Stereo Connector
- NVIDIA nView® multidisplay technology
- NVIDIA Mosaic
- 3-Year Warranty
- Pre- and Post-Sales Technical Support
- Dedicated Field Application Engineers
- Direct Tech Support Hot Lines

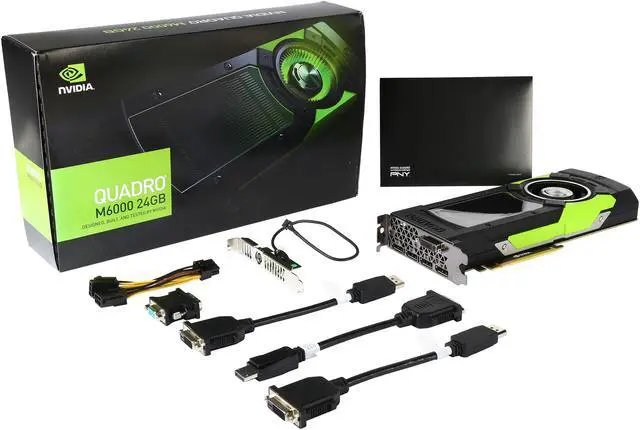

- NVIDIA Quadro M6000 24GB Professional Graphics Board
- Software Installation Disc
- Printed Quick Start Guide
- 8-Pin Auxiliary Power Cable
- Stereo Connector Bracket
- Three DisplayPort to DVI-D SL Adapters
- DVI to VGA Adapter
| Best Seller Ranking |
#70 in Workstation Graphics Cards |
|---|---|
| Brand |
PNY |
| Model |
VCQM6000-24GB-PB |
| Interface |
PCI Express 3.0 x16 |
| Chipset Manufacturer |
NVIDIA |
| GPU |
Quadro M6000 |
| CUDA Cores |
3072 |
| Memory Size |
24GB |
| Memory Interface |
384-bit |
| Memory Type |
GDDR5 |
| DirectX |
DirectX 12 |
| OpenGL |
OpenGL 4.5 |
| DisplayPort |
4 x DP 1.2 |
| DVI |
1 x DL DVI-D |
| Digital Resolution |
4096 x 2160 |
| Analog Resolution |
2048 x 1536@85Hz |
| Max Displays Per Board |
4 |
| 3D Vision Pro |
For Windows & Linux |
| Cooler |
Ultra-quiet active fansink |
| Dual-Link DVI Supported |
Yes |
| HDCP Ready |
Yes |
| Operating Systems Supported |
Microsoft Windows 10 ,8.1 ,8 ,7 ,Linux ,or Solaris |
| System Requirements |
Maximum Power Consumption: 250WPCIe x16 Gen 3 (preferred) expansion slot2GB or more of system memory ,8GB recommended200MB of available disk space for full driver installationBlu-ray or DVD-ROM driveInternet connection (if preferred for driver installation)DisplayPort ,DVI ,or VGA compatible display(s) |
| Features |
3D Graphics Architecture- Scalable geometry architecture- Hardware tessellation engine- NVIDIA GigaThread engine with dual copy engines- Shader Model 5.0 (OpenGL 4.5 and DirectX 12)- Up to 16K x 16K texture and render processing- Transparent multisampling and super sampling- 16x angle independent anisotropic filteringParallel Computing Capabilities- SMX architecture (streaming multi-processor design that delivers greater processing and efficiency)- HyperQ (allows multiple CPU cores to simultaneously utilize a single M6000 GPU to execute independent compute kernels)- Dynamic Parallelism (GPU dynamically spans new threads without going back to the CPU)- API support including: CUDA C ,CUDA C++ ,DirectCompute 5.0 ,OpenCL ,Java ,Python ,and Fortran- NVIDIA Parallel Data Cache hierarchy (per SM L1 and unified L2 caches)- Error-Correction Code (ECC) memory on graphics memory- 96KB of RAM (dedicated shard memory per SM)Advanced Display Features- 30-bit color (10-bit per each red ,green and blue channel)- Support for any combination of four connected displays- DisplayPort 1.2 (supporting resolutions such as 4096 x 2160 at 60Hz)- DVI-I Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)- DVI-D Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)- Internal 400MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85Hz)- DisplayPort to VGA ,DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables optionally available (resolution support based on dongle specifications)DisplayPort and HDMI Digital Audio- Dolby Digital (AC3) ,DTS 5.1 ,multi-channel (7.1) LPCM ,Dolby Digital Plus (DD+) ,and MPEG-2/MPEG-4 AAC- Data rates of 44.1KHz ,48KHz ,88.2KHz ,96KHz ,176KHz ,and 192KHz- Word sizes of 16-bit ,20-bit ,and 24-bit |
| Dimensions L x H |
10.50" x 4.40" |
| Package Contents |
NVIDIA Quadro M6000 24GB professional graphics boardStereo connector bracketThree DisplayPort to DVI-D SL adaptersDVI-I to VGA adapter8-pin to dual 6-pin auxiliary power cableSoftware installation disc for Windows 8.1 ,8 ,7 ,and Vista (32- and 64-bit)Printed QuickStart Guide |
| Slot Width |
Dual Slot |
| First Listed on Newegg |
November 18 ,2024 |
2 reviews for PNY Quadro M6000 VCQM6000-24GB-PB 24GB 384-bit GDDR5 PCI Express 3.0×16 Dual Slot Workstation Video Card
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
James P. –
Pros: A well designed graphics card for professional grade applications and graphical content creation with very high accuracy in rendering. Extremely high accuracy if you use the right driver. Please, make sure you get the right driver for your system BEFORE you use any applications. Nvidia has several tiers for things (Certified, Mainline, and Specialized) so get what the application vendor recommends ONLY. Cons: I acquired this card through another website, (sorry NewEgg!) but decided to review it anyway. Look, Quadro cards aren’t gaming cards on any level. These cards are for high accuracy in rendering from applications like Maya, Poser, AutoCAD, etc. where high precision is needed. You can use these for gaming, but be forewarned! Games will not run fast on a Quadro! They may actually render more accurately, but accuracy sacrifices speed. By fair comparison the 24GB Quadro M6000 is a GeForce GTX Titan X. If you want a gaming card, get a GeForce, but if you want a CAD and DCC behemoth workhorse, get a Quadro.
Dereatha C. –
Pros: I bought this for my Dell Precision Workstation R5910 Rack mount. I’ve been maximizing the hardware via NewEgg as I couldn’t afford to do it through Dell. I made sure I got the alternate riser card in the rack mount so this card would fit. The PCI card holder wouldn’t latch onto the top of the video card because of a metal plate on top of the video card but the video card is snug and it will not move anywhere without. I was also able to connect the power cables that came with the rack mount to this video card after figuring out I could connect one 6 and a 2 together to form an 8 connector. Nothing special after that other than plugging in the card into its slot.
It seems to work great with Windows 10 Pro and all of the 3D applications I use (with the correct video driver). Super high accuracy and great speed. Cons: The stereo connector cable is too short. I ended up not connecting it but left it installed in my rack mount simply so that I wouldn’t loose it. It is a feature I don’t use anyway so not a big deal. Overall Review: It came in factory wrap plastic with all the cables advertised here. It was definitely worth the money and I recommend it to anyone who needs to do a ton of high end 3D modeling and quick rendering.
