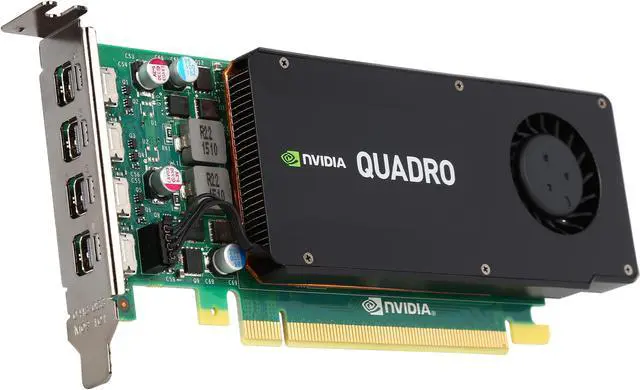

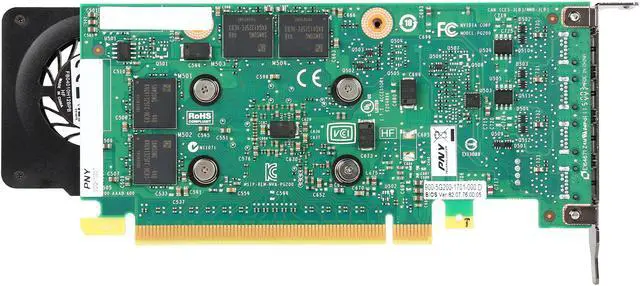

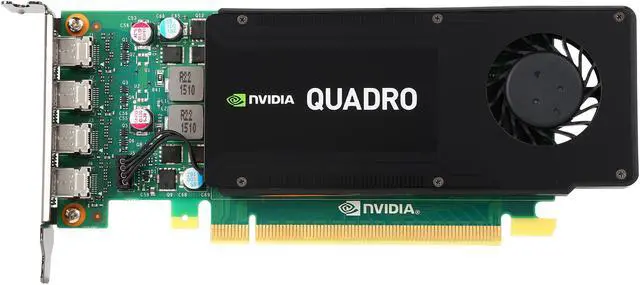

PNY Quadro K1200 VCQK1200DVI-PB 4GB 128-bit GDDR5 PCI Express 2.0 ATX or SFF Workstation Video Card for DVI
$256.91
PNY Quadro K1200 VCQK1200DVI-PB 4GB 128-bit GDDR5 PCI Express 2.0 ATX or SFF Workstation Video Card for DVI
| Brand |
PNY |
|---|---|
| Model |
VCQK1200DVI-PB |
| Interface |
PCI Express 2.0 x16 |
| Chipset Manufacturer |
NVIDIA |
| GPU |
Quadro K1200 |
| CUDA Cores |
512 |
| Memory Size |
4GB |
| Memory Interface |
128-bit |
| Memory Type |
GDDR5 |
| DirectX |
DirectX 12 |
| OpenGL |
OpenGL 4.5 |
| DisplayPort |

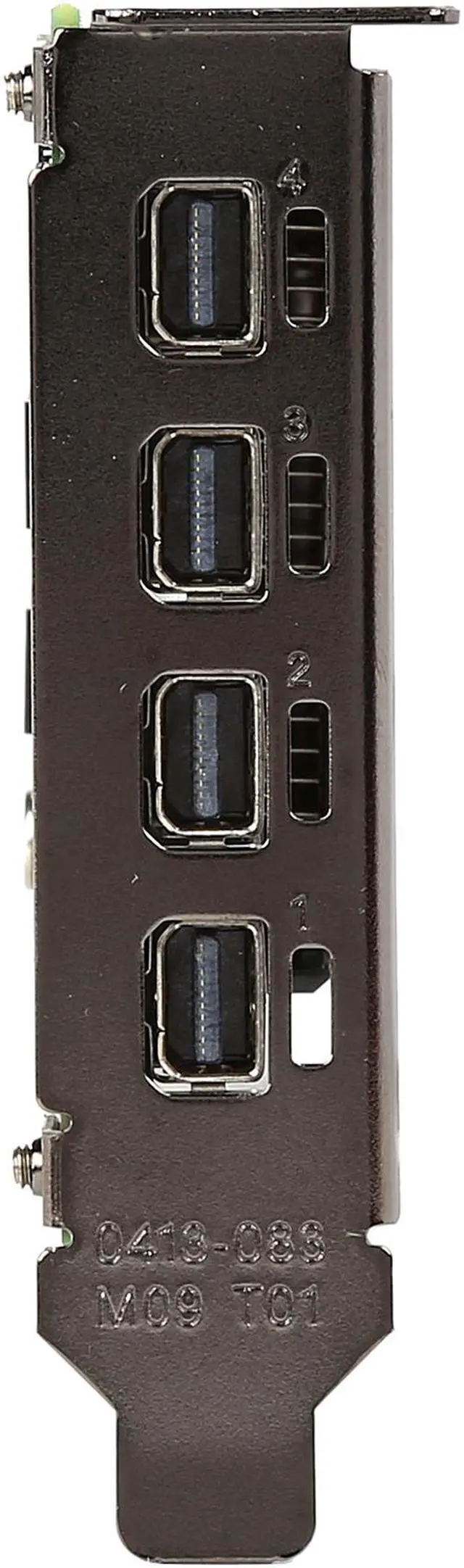

4 mini-DisplayPort (mDP) |
| Other Ports |
4 mini-DisplayPort to DVI-D SL (via included adapters) |
| Cooler |
With Fan |
| Operating Systems Supported |
Microsoft Windows 10 ,8.1 ,8 ,7 ,Vista ,XP SP3 ,Linux ,or Solaris |
| System Requirements |
PCIe x16 expansion slot2GB or more of system memory ,8GB recommended200MB of available disk space for full driver installationBlu-ray or DVD-ROM driveInternet connection (if preferred for driver installation)DisplayPort or DVI-D SL compatible display(s) |
| Features |
3D Graphics Architecture- Scalable geometry architecture- Hardware tessellation engine- FXAA/TSAA dedicated antialiasing engine- Bindless Textures- Shader Model 5.0 (OpenGL 4.5 and DirectX 12)- Up to 16K x 16K texture and render processing- Transparent multisampling and super sampling- 16x angle independent anisotropic filtering- 32-bit per component floating point texture filtering and blending- Up to 64X full scene antialiasing- Decode acceleration for MPEG-2 ,MPEG-4 Part 2 Advanced Simple Profile ,H.264 ,MVC ,VC1 ,DivX (version 3.11 and later) ,and Flash (10.1 and later)- Dedicated H.264 encoder (requires application support)- Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)- NVIDIA GPU Boost (Automatically increases GPU engine throughput to maximize application performance).Parallel Computing Capabilities- Streaming Multi-Processor Design (SM 5.0) delivers high performance and energy efficiency- Support for all the latest CUDA 6 features ,including Unified Memory ,Dynamic Parallelism and Dedicated Shared Memory)- Support for all the latest CUDA 6.5 features- Programming support for CUDA C ,CUDA C++ ,DirectCompute 5.0 ,OpenCL ,Python and FortranAdvanced Display Features- Simultaneously drive up to four displays when connected natively or when using DisplayPort MST- Quad DisplayPort 1.2 outputs including Multi-Stream and HBR2 support (capable of supporting resolutions such as 4096 x 2160 at 60 Hz)- Quad DVI-D SL outputs via included mDP to DVI-D SL adapters at 1920 x 1200 at 60 Hz- – Mix of up to four DP and DVI displays can be directly attached and driven simultaneously- DisplayPort to VGA and DisplayPort to HDMI cables available (resolution support based on dongle specifications)- 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels ,applications and connections) |
| Form Factor |
Full-Height or Low-Profile |
| Dimensions L x H |
6.30" x 2.70" |

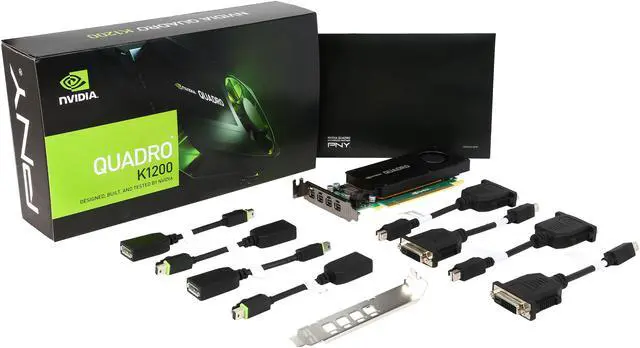

| Package Contents |
NVIDIA Quadro K1200 professional graphics boardAttached low-profile (SFF) bracketUnattached full-height (ATX) bracketFour mini-DisplayPort to DisplayPort adaptersFour mini-DisplayPort to DVI-D SL adaptersSoftware installation disc for Windows 10 ,8.1 ,8 ,7 ,and Vista (32- and 64-bit)Printed QuickStart Guide |
| Slot Width |
Single Slot |
| First Listed on Newegg |
July 26 ,2021 |
3 reviews for PNY Quadro K1200 VCQK1200DVI-PB 4GB 128-bit GDDR5 PCI Express 2.0 ATX or SFF Workstation Video Card for DVI
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
CHARLES N. –
Pros: Seems to be nice low profile workstation card with excellent specs. Cons: Comes with low profile (SFF) bracket only. Standard height bracket is not included and is also not available from manufacturer PNY.
Brian G. –
Pros: might work if you only have a Small form factor computer Cons: Worthless piece of garbage. I wanted to use this as it allowed 4 screen displays on one card instead of having to use dual K420s. The card does NOT fit in a standard PCIe location. The back plate is only small form factor. contacted PNY support, they do not offer a way to get the full height. FYI the NVS510 card has the identical rear plug layout.
Avoid at all costs
Shaun O. –
Pros: Good card for CAD system, not best but good. Capable of using four screens. Two cables for each port, DVI & HDMI. Cons: My customer had a slim system he wanted to use for CAD/CAM. It needed some memory and a better video card to meet specs. It seemed a bit sluggish for an i5. I added memory, SSD, and this card. It would still not perform as it should. We went to a larger box to accommodate a faster processor, newer mobo, and larger power supply as the slim was maxed out. After a thorough search, calls to PNY, etc. we had to manufacture a plate to put this in the large box. To date, this is the only pro video card I have seen that doesn’t provide both.
