PNY NVS 810 VCNVS810DP-PB 4GB 128-bit DDR3 PCI Express 3.0 x16 ATX Graphics Card
$837.11
PNY NVS 810 VCNVS810DP-PB 4GB 128-bit DDR3 PCI Express 3.0 x16 ATX Graphics Card
| Best Seller Ranking |
#32 in Workstation Graphics Cards |
|---|---|
| Brand |
PNY |
| Model |
VCNVS810DP-PB |
| Interface |
PCI Express 3.0 x16 |
| Chipset Manufacturer |
NVIDIA |
| GPU |
NVS 810 |
| CUDA Cores |
1024 (512 per GPU) |
| Memory Size |
4GB |
| Memory Interface |
128-bit |
| Memory Type |
DDR3 |
| DirectX |
DirectX 12 |
| OpenGL |
OpenGL 4.5 |
| DisplayPort |

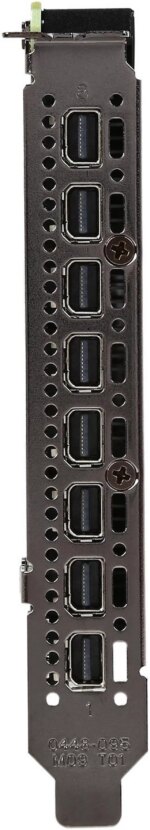

8 x mini DisplayPort 1.2 |
| Digital Resolution |
4096 x 2160 |
| Analog Resolution |
1920 x 1200 |
| 3D Vision Pro |
For Windows & Linux |
| Cooler |
Ultra-quiet active fansink |
| HDCP Ready |
Yes |
| Operating Systems Supported |
Microsoft Windows 10 ,8.1 ,8 ,Linux ,or Solaris |
| System Requirements |
Max Power Consumption: 68WPCIe x16 expansion slot1GB or more of system memory ,2GB recommended200MB of available disk space for full driver installationBlu-ray ,DVD-ROM or CD-ROM driveDisplayPort compatible displays (via the included mDP to DP adapters) |
| Features |
Eight Display OutputsThe NVS 810 leverages a dual GPU design to offer eight mini-DisplayPort 1.2 connectors capable of driving true 4K displays at 30 Hz. Plus ,it provides advanced features like multi-streaming and stream cloning that enable extremely efficient cable management in complex installations.Extreme ScalabilityThe NVS 810 gives you the best mix of performance ,single-slot form factor ,quiet operation ,and power efficiency. Simply combine multiple NVS 810 cards in a single system to create cost-effective ,massive signage walls with extreme screen resolution.Advanced Image ManagementTap into the NVIDIA DesignWorks suite of powerful tools to manage images on complex multi-display configurations. Technologies like NVIDIA Mosaic and Warp & Blend help you achieve even the most demanding display configurations with ease. |
| Form Factor |
ATX |
| Dimensions L x H |
9.50" x 4.40" |
| Package Contents |

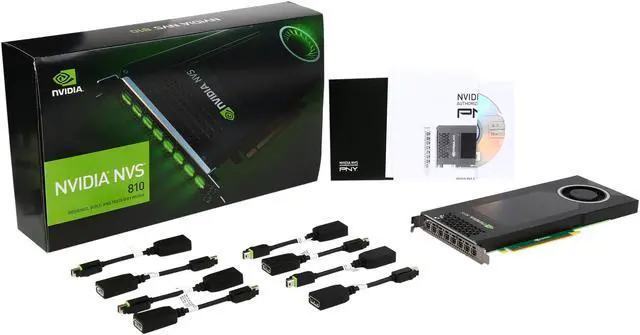

NVIDIA NVS 810 professional graphics board8 locking mini-DisplayPort to DisplayPort adaptersSoftware Installation Disc for Windows 10 ,8.1 ,8 ,7 (32- and 64-bit)Printed QuickStart Guide |
| Slot Width |
Single Slot |
| First Listed on Newegg |
September 13 ,2022 |
1 review for PNY NVS 810 VCNVS810DP-PB 4GB 128-bit DDR3 PCI Express 3.0 x16 ATX Graphics Card
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Tyler H. –
Pros: – I put this GPU in a new Lenovo Thinkstation P310. Performs amazingly while driving 4x LG ultrawide 34″ 4096 x 1440 @ 60FPS!!!
– The Lenovo Thinkstation P310 has a 250 watt PSU which supports most of the Quadro line from PNY! It also supports the Nvidia NVS 810!!
– Single slot design
– Comes with 8 x Mini Display port to full size Display for adapters Cons: – Absolutely no cons whatsoever.
