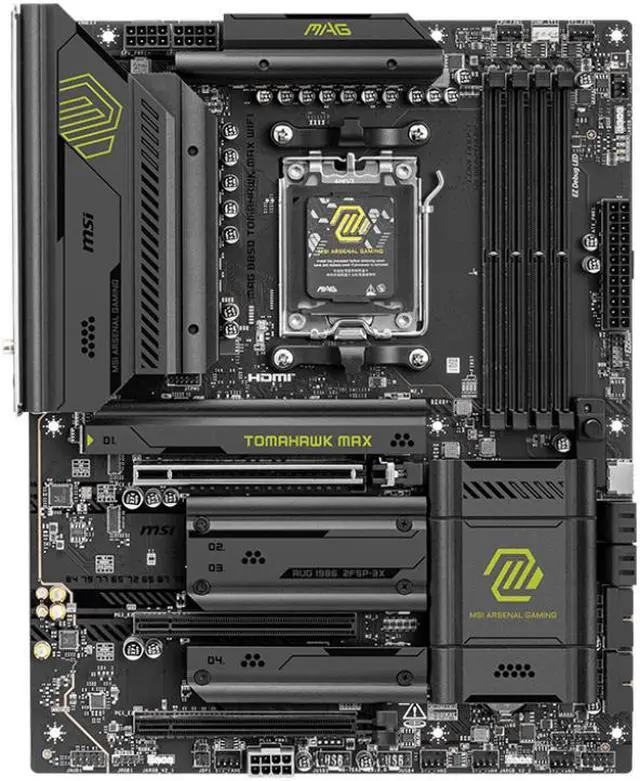

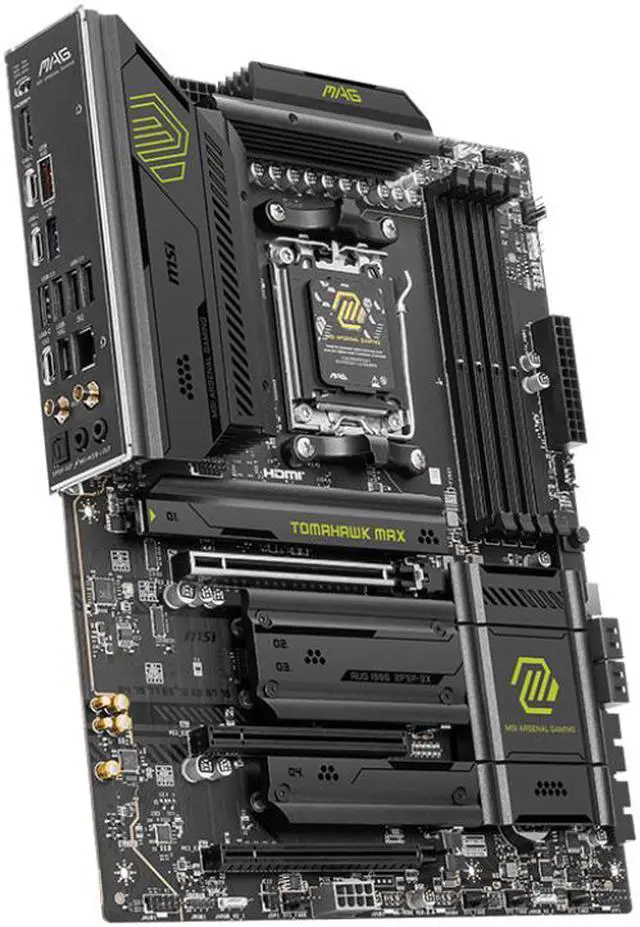

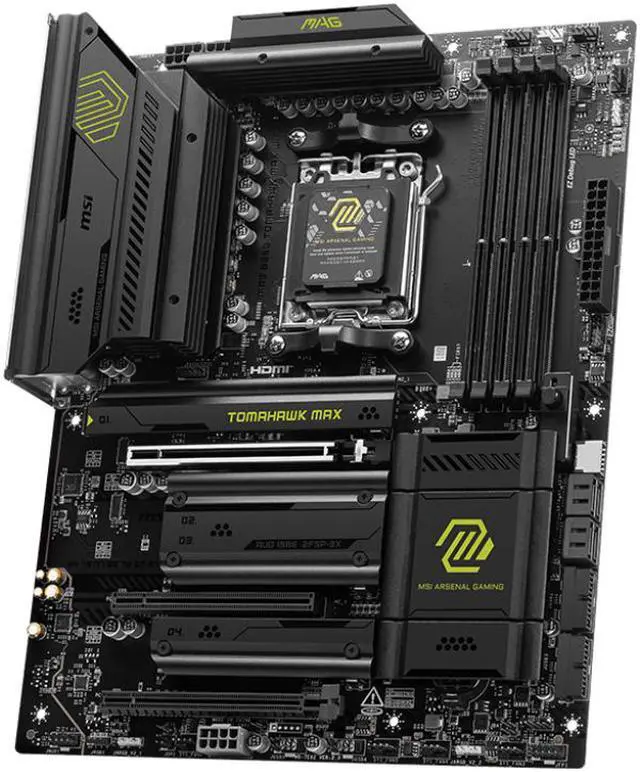

MSI MAG B850 TOMAHAWK MAX WIFI AM5 AMD B850 SATA 6Gb/s 5G Network Wi-Fi7 DDR5 Motherboard
$259.27
MSI MAG B850 TOMAHAWK MAX WIFI AM5 AMD B850 SATA 6Gb/s 5G Network Wi-Fi7 DDR5 Motherboard
| Best Seller Ranking |
#10 in AMD Motherboards |
|---|---|
| Brand |
MSI |
| Model |
MAG B850 TOMAHAWK MAX WIFI |
| CPU Socket Type |
AM5 |
| CPU Type |
Ryzen 7000 Series ,Ryzen 8000 Series ,Ryzen 9000 Series |
| Chipset |
AMD B850 |
| Number of Memory Slots |
4x288pin (DDR5) |
| Memory Standard |
Up to DDR5 8400+ MT/s (OC) |
| Maximum Memory Supported |
256GB |
| Channel Supported |
Dual Channel |
| ECC Supported |
Non-ECC |
| Memory Feature |
Memory Support DDR5 8400 – 5600 (OC) MT/s ,5600 – 4800 (JEDEC) MT/sRyzen 9000 Series Processors max. overclocking frequency:- 1DPC 1R Max speed up to 8400+ MT/s- 1DPC 2R Max speed up to 6400+ MT/s- 2DPC 1R Max speed up to 6400+ MT/s- 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOSupports Dual-Channel modeSupports Non-ECC ,Un-buffered memorySupports CUDIMM ,Clock Driver bypass mode only |
| PCI Express 5.0 x16 |
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| PCI Express x4 |
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS ,but this will disable the M2_3 slot |
| PCI Express x1 |
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Serial ATA SATA |
4 x SATA 6Gb/s |
| M.2 |
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,supports 22110/2280 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 ,supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 ,supports 2280/2260 devices*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS ,but this will disable the M2_3 slot.** Please refer to the manual for M.2 SSD heatsink restrictions |
| SATA RAID |
Supports RAID 0 ,RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Audio Chipset |
Realtek ALC4080 |
| Audio Channels |
7.1 Channels |
| LAN Chipset |
Realtek 8126VB |
| Max LAN Speed |
5Gbps |
| Wireless LAN |
Wi-Fi 802.11 be |
| Bluetooth |
Bluetooth 5.4 |

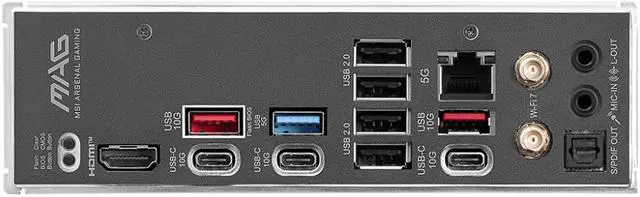

| Back I/O Ports |
1 x Clear CMOS Button ,1 x Flash BIOS Button ,1 x LAN (RJ45) ,2 x Antenna Bracket ,2 x Audio Jacks ,2 x USB 3.2 Gen 2 Type-A ,3 x USB 3.2 Gen 2 Type-C ,4 x USB 2.0/1.1 |
| Onboard USB |
4 x USB 2.0 ports4 x USB 5Gbps Type A ports1 x USB 20Gbps Type C ports |
| Other Connectors |
1 x CPU Fan1 x Combo Fan (Pump_Sys Fan)6 x System Fan1 x EZ Conn-header (JAF_2)2 x Front Panel (JFP)1 x Chassis Intrusion (JCI)1 x Front Audio (JAUD)3 x Addressable V2 RGB LED connector (JARGB_V2)1 x RGB LED connector(JRGB)1 x TPM pin header(Support TPM 2.0) |
| Form Factor |
ATX |
| LED Lighting |
4 x EZ Debug LED1 x EZ Memory Detection LED |
| Dimensions W x L |
12.0" x 9.6" |
| Power Pin |
1 x Power Connector(ATX_PWR)2 x Power Connector(CPU_PWR)1 x Power Connector(PCIE_PWR 8pin) |
| Windows 11 |
Windows 11 64-bit |
| First Listed on Newegg |
January 10 ,2025 |
75 reviews for MSI MAG B850 TOMAHAWK MAX WIFI AM5 AMD B850 SATA 6Gb/s 5G Network Wi-Fi7 DDR5 Motherboard
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Mike –
Overall Review: The B850 doesnt differ much from the B650, but this motherboard has still received many optimizations compared to the previous generation. It features a more refined and aesthetically pleasing design, and the BIOS has been completely revamped. The most noticeable improvement is the smoother boot experience.
Tracy L. –
Overall Review: It is a solid choice for builders seeking a high-performance platform for their AMD AM5 processors. The inclusion of WiFi 7 ensures ultra-fast and reliable wireless connectivity. The board’s ATX form factor offers a balanced combination of features and expandability, with a well-laid-out design that caters to enthusiasts and professionals alike. Whether you’re assembling a workstation or a high-end gaming rig, it proves to be a dependable, future-proof motherboard choice.
George L –
Overall Review: The design elements of this motherboard are very similar to the Z890P, but thats not a bad thing. Intel motherboards always have more robust specifications, and applying successful elements to AMD models is great. This motherboard features large heatsinks, and its BIOS is both user-friendly and visually appealing. Thumbs up!
EY1979 –
Pros: DDR5 up to 8200 , Wifi 7 and lightining Gen 5 are the top three benefits of this board. It also has Forzr AI cooling which monitors temperatures changes Overall Review: Paired with AMD Ryzen™ 5 8600G and 32GB G.SKILL Trident Z5 RGB , overall very happy with this purchase. The board has so many connectivity options at the back and it makes it so convenient. Another thing I like about this board is that, the ssd installation is very effortless.
Ian F. –
Pros: It is a motherboard and should do what it is supposed to do. Cons: usb 3.0 and 2.0 headers Overall Review: The board seems great but I had issues when i plugged in my usb3.0 and usb 2.0 cables to this motherboard. Usb2.0 ports on the front of my case were unable to detect anything at all and the usb 3.0 ports on the front of my case killed 2 usb sticks and caused a 3rd usb stick to ejecting every minute or so. Also the lan internet seems a bit slower than my old GA-AB350 Gaming 3.
The front usb 2.0 and 3.0 ports worked fine on my last motherboard and are now working fine with the b850 tomahawk as I am returning the b850 gaming plus wifi.
Greg –
Pros: Arrived undamaged. Cons: – Tons of USB interference. Only the USB 2.0 ports put out a clean signal. Every other USB port has random disconnects and cannot be used with wireless headphones. I was getting a ton of digital audio corruption. This was already a deal breaker but theres more.
– Only the top M.2 slot works as intended. The bottom 3 make the drive show up as removable in Windows. Normally, this can be fixed by turning off hot swap, but MSI has removed this setting in their bios.
– Disabling your audio in bios does absolutely nothing, windows still tried to install drivers for it. Ive never seen that before. Overall Review: I replaced this board with a competitors, and magically every issue went away. Maybe I got a lemon, its possible. But its more likely this model has some serious issues. Be careful with your purchase. MSI also had Newegg delete my previous review which is extremely concerning.
Jordan B. –
Pros: The B850 Motherboard is a very good motherboard for the price. Works well in my Montech X3 mesh case. Very nice colouring, silver goes very well with the black. Overall Review: The B850 Motherboard is a very good motherboard for the price. Works well in my Montech X3 mesh case. Very nice colouring, silver goes very well with the black. I would recommend this product to anyone. The only thing bad is not the boards fault but the msi logo on the board is covered by the exhaust fan I have.
Anonymous –
Overall Review: I had a problem with only one stick being detected by my board(troubleshot different RAM). While removing the CPU to reseat it to test if that was the problem from troubleshooting, I accidentally bent some pins. My screw up, so I reached out to their support to send it in for the repair, where over two weeks they gave vague answers and wouldn’t provide any real number or even an estimate. Looking at paying anywhere from 65 for base plus shipping to 70% of “Retail”, they wouldn’t give me an average so I could be looking at spending same amount on a new board. They also wouldn’t even consider a discount since I’d spent over 1500 on a MSI 5080 and MSI power supply as well. They went ahead and closed my ticket after I had requested to speak with a manager or supervisor as well.
If you want a take a chance with them if everything is working do so, I wish I wasn’t past my return time on their other products to send them back as I don’t want to support their company anymore after this.
