Matrox C680 C680-E4GBF 4GB GDDR5 PCI Express 3.0 x16 Full Height / Half Length Graphics Card
€530.46
Matrox C680 C680-E4GBF 4GB GDDR5 PCI Express 3.0 x16 Full Height / Half Length Graphics Card
| Best Seller Ranking |
#80 in Workstation Graphics Cards |
|---|---|
| Brand |
Matrox |
| Series |
C680 |
| Model |
C680-E4GBF |
| Interface |
PCI Express 3.0 x16 |
| Chipset Manufacturer |
AMD |
| Memory Size |
4GB |
| Memory Type |
GDDR5 |
| DirectX |
DirectX 12 |
| OpenGL |
OpenGL 4.4 |
| DisplayPort |

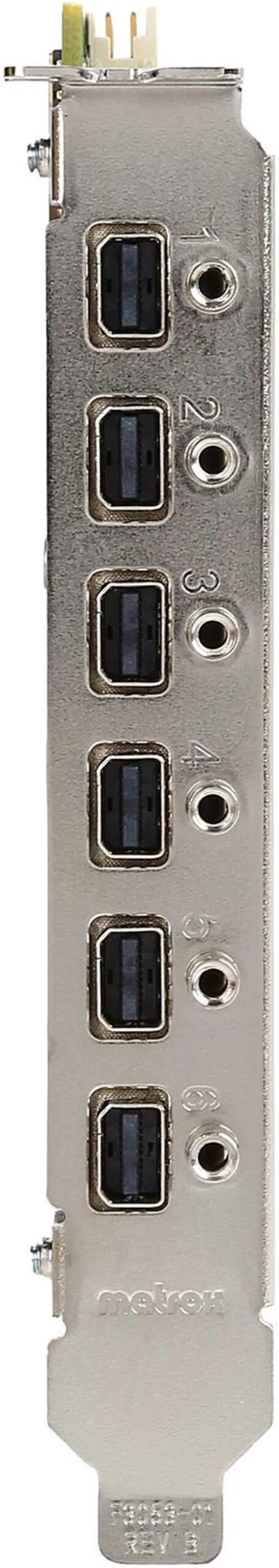

6 x Mini DisplayPort 1.2 (secure) |
| Digital Resolution |
4096 x 2160 |
| Max Displays Per Board |
6 |
| Cooler |
With Fan |
| Dual-Link DVI Supported |
Yes |
| HDCP Ready |
Yes |
| Operating Systems Supported |
Windows 10 32-bitWindows 10 64-bitWindows 8.1 32-bitWindows 8.1 64-bitWindows 7 32-bitWindows 7 64-bitWindows Embedded Standard 7 32-bitWindows Embedded Standard 7 64-bitWindows Server 2012 R2 64-bitWindows Server 2008 R2 64-bitLinux |
| System Requirements |
Single available PCIe x16 lane2GB of system memoryInternet access for software installationCompatible operating system |
| Features |
Drive up to six displays or projectorsSupports a maximum resolution of 4096 x 2160 per outputExperience smooth video playback and graphics performance with 4GB of memoryMinimize power consumption with an energy efficient board designExpand your desktop space with multi-board support to drive up to 12 displays from a single computerFramelock two Matrox C680 cards together and synchronize the refresh rate across all monitors to reduce tearingSimplify cabling by daisy-chaining DisplayPort 1.2 MST-capable displaysCustomize your setup with the easy-to-use Matrox PowerDesk multi-display configuration and desktop management softwareConfigure displays independently from one another or select stretched desktop mode to create as a single ultra-large desktop across multiple displaysClone content to show the same information on all displaysSelect any combination of portrait or landscape and set the orientation that works best for youSimplify A/V installations with advanced EDID ManagementPrevent loose cabling with secure Mini DisplayPort connectorsAdjust the number of overlapping pixels with Edge Overlap to create a seamless ,unified image on up to six edge blending projectorsFacilitate enterprise-wide deployments by installing Matrox PowerDesk & drivers across many systems without any user interactionPair C680 with Matrox Mura IPX Series for 4K capture and IP encode & decodeManage video wall layouts ,sources and more with the MuraControl for Windows software (sold separately) or the MuraControl for iPad appSupports Microsoft DirectX 12 ,OpenGL 4.4 ,and OpenCL 1.2 to run the latest professional applicationsProtect your investment with Matrox long product life-cyclesSupports Mura Control for Windows and Mura Control for iPad |
| Form Factor |
Full Height ,Half Length |
| Dimensions L x H |
6.60" x 4.05" |
| Package Contents |

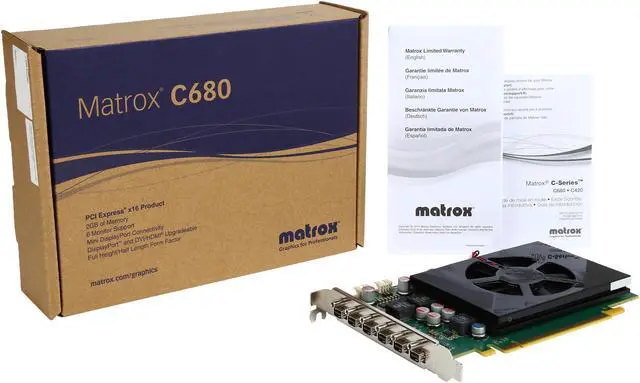

Matrox C680 graphics cardQuick start-up guideDisplay drivers and Matrox PowerDesk desktop management software available for download from Matrox website |
| Slot Width |
Single-slot |
| First Listed on Newegg |
July 26 ,2021 |
