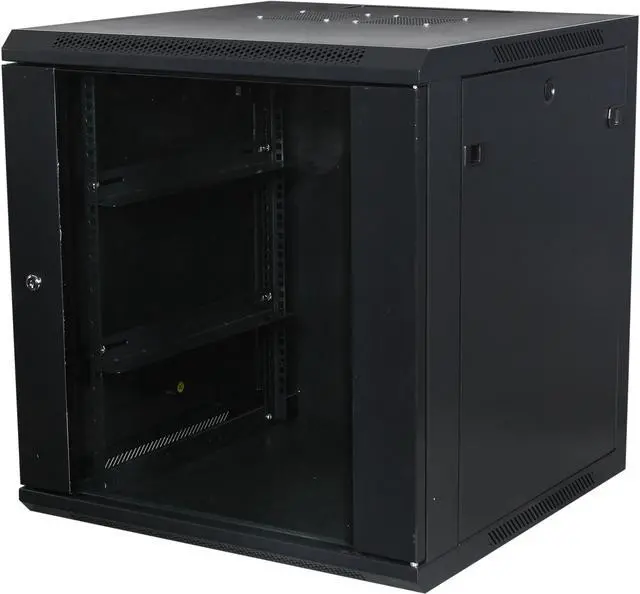

iStarUSA Wallmount Server Cabinet

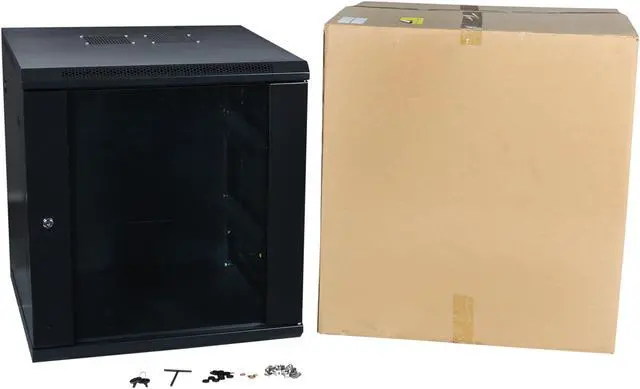

Introducing the elegant and secured iStarUSA WM1260B Wall Mount Cabinet by CLAYTEK. The easy side panel access is convenient for routine maintenance, but also can be locked to prevent unauthorized access. Three-way cabling tunnels – top, bottom, and rear – enable data and cable routing. The WM Series incorporates an optimal cooling design. The partially vented frames and two optional AC fans that can be put on the top panel give the wall-mount cabinet excellent air ventilation. A heat-treated glass door provides extra strength, and you can silkscreen company logos, marks, and labels to boost product image.
Features
- Sturdy and Rugged Welded Frame Structure Comes Pre-Assembled
- Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
- Three-Way Cabling Tunnels – Top, Bottom, and Rear
- Wallmount or Desktop Standalone

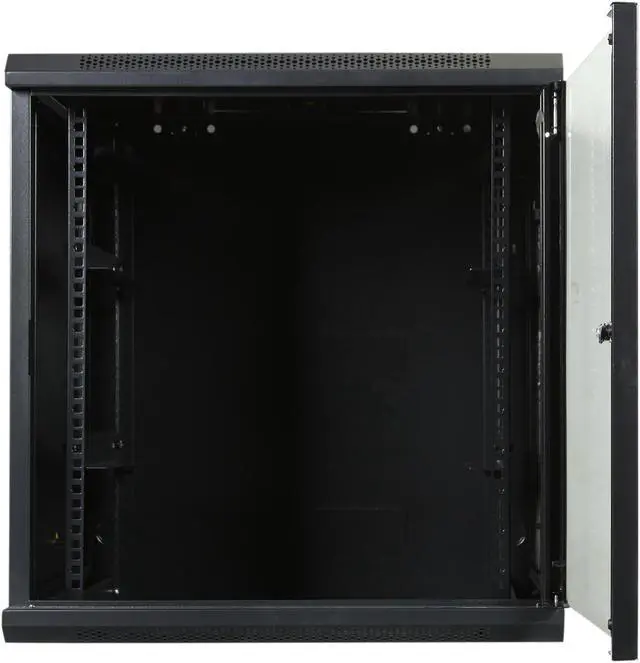

- Reinforced & Strengthened Glass Front Door with Security Key Lock

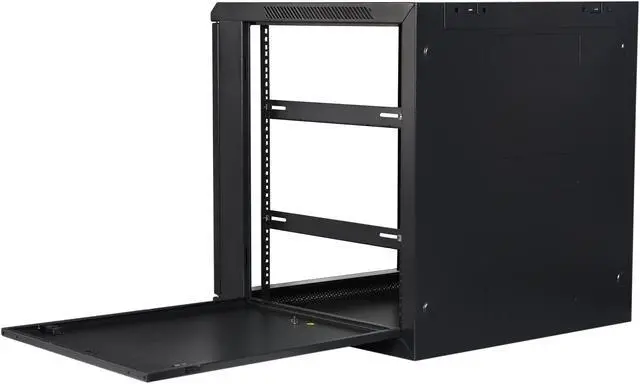

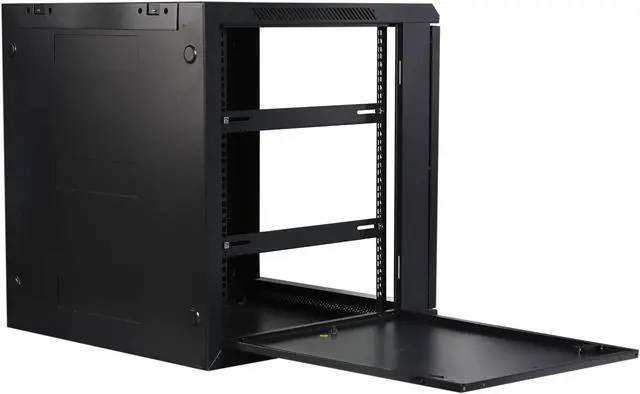

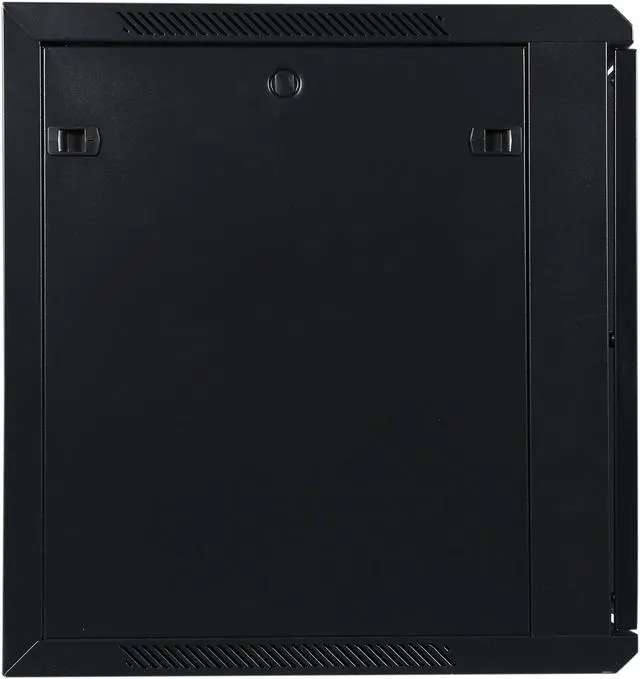

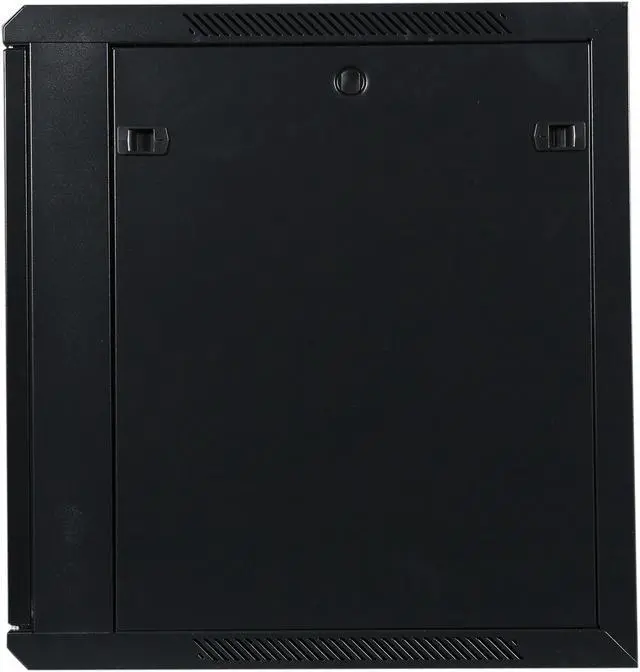

- Removable Side Panels with Easy Handy Latches
- 2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2mm for Enclosure
- Degreasing, Acidification, Phosphoric, Static Electricity or Powder Coat Surface Finish
- Front Lock (side panel key lock)
- Comes with M6 Mounting Screws and Cage Nuts
- Easily to Switch Door Side and Door Opens 230 Degrees
Specifications
| Model Number | WM1260B |
|---|---|
| RoHS Compliance Version | Yes |
| Form Factor | 12U |
| Material | Posts: 2.0mm SPCC High-Quality Cold Roll Steel Enclosure:SPCC 1.2mm |
| Loading Capacity | 130 lbs |
| Supported Chassis Depth | 22″ and under |
| Internal Dimensions | Depth: 22″ max. |
| Cooling | Optional 2 x 120mm 120VAC fan can be installed on the top (p/n: WA-FANAC120) |
| Dimensions (W x H x D) | 23.62 x 25 x 23.62″ 600 x 635 x 600mm |
| Notes | – HTS code: 8473.30.5100 (ECCN is not applicable). |
4 reviews for iStarUSA WM1260B 12U 600mm Depth Wallmount Server Cabinet
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Patricio R. –
Pros: I got this Case as a replacement for my old noisy 10U Rack, It feels spacious and good build up.
I will wish to have extra fan holes on the floor for extra air intake, but is fine.
– Good Price.
– Acceptable finish.
– Lot of space for small server applications.
– Easy access from sides.
– Rack columns are ajustable.
– Wall mount easy.
– Feels strong.
– Two insertion rails.
– Fits small to medium size cases.
– square holes on racking columns.
– brings some screw and extra hardware. Cons: Be careful with deep cases close to the limit they maybe fit but without any plugged wire on the back, and removing the handlers on the front.
– I think that extra holes for fans in the floor like the ones in the top will be a plus.
– The insertion rails only fit one size but adding a re-sizable one may increase the price.
– No grommets, if you need to insert wires from outside through any of the holes you will need to get something to avoid wire damage. Overall Review: I really recommend this rack if you need a small (12U or less) rack
If you have a lot of stuff to rack, you will need to get extra hardware, the bag that comes with the product provides only few screws, but is not a contra.
You will need fans if you have lot of heat generating elements but careful there is only two designated holes for 120 mm fans.
Anonymous –
Pros: Simple, affordable, easy to use. Cons: lack of locks on side doors, somewhat flimsy material.
John F. –
Pros: -Extremely well packed when it arrived.
-Well built. Better quality than I was expecting for this price.
-Lots of copper grounding lugs in the cabinet.
-Attractive design. Cons: -Wall mount bracket seemed a little weak. However, I put in a 50lb UPS + switches and it seems fine. Overall Review: -I would purchase this again.
Anonymous –
Pros: Low price
Nice for routers/switches & patch panels Cons: Too shallow for my 600mm shelves
Tight fit for 20″/520mm deep servers
150mm shallower than expected
Vertical supports default to 450mm Overall Review: Depth as outlined in specs represents overall outer dimension of rack not internal vertical rail mount depth. Max depth of equipment to be usable should be more like 450mm to allow room for cabling on front & rear. I might be able to make this work but it will be tight at best.
Solid product wish it was 150mm deeper or 600mm between vertical rails
