iStarUSA D-400L-7 Black 4U Rackmount High Performance Chassis – Black Bezel
$371.59
iStarUSA Sever Rackmount Chassis D-400L-7
iStarUSA 4U industrial rackmount chassis D Storm D-400L-7. Combine with BPU or T Series enable hot-swappable JBOD and RAID configuration. It also supports up to seven full-length full-height add-on cards. Total capacity up to 3.5″ x12 or 2.5″ x36 HDD drives for high density data storage. Center hot-swappable 120mm fan provides excellent thermal cooling solution. Achieve ultimate uninterrupted operation with support of iStarUSA redundant power supply. D-400L-7 provides your server or cluster maximum flexibility and performance.
Product Features
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 120mm x3, 80mm x1 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
Specifications
| Model Number | D-400L-7 |
|---|---|
| RoHS Compliance Version | Yes |
| Form factor | 4U |
| Standard Drive Bays | 3.5″ Drives: 1 3.5″ Drive (internal): 1 5.25″ Drives: 7 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | PS2, Mini Redundant |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel ( Japan Made ) |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
| Cooling Fan | 1x80mm, 3x120mm |
| Optional Fan | 80mm x1 |

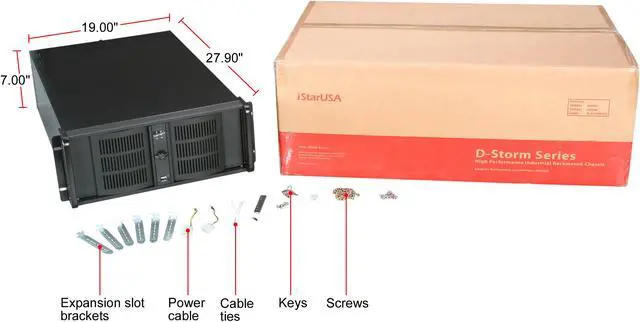

| Dimensions (WxHxD) | 19.00″ x 7.00″ x 27.90″ |
4 reviews for iStarUSA D-400L-7 Black 4U Rackmount High Performance Chassis – Black Bezel
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Noel S. –
Pros: Plenty of room, almost everything inside can be removed via screws, it is of solid construction and quality parts! Cons: No real complaints about this case. Overall Review: I would recommend this to anyone looking for a solid 4U rack mount case that has plenty of options for “odd-ball” configurations…this case is a very good place to start.
Richard L. –
Pros: Big, strong, well-built. Hot-plug fans. Cons: No USB 3.0 ports on front-panel. Hot plug fans are 3-pin (non-PWM).
Jacob C. –
Pros: -Case is strong
-Case has enough space, for example, the Noctua NH-D9L fits fine
-Front panel mounting system works well, I put in an Anker 2-Port USB 3.0 Hub in the 3.5 inch slot
-I can use a standard PC power supply
-I can move plenty of air though the case. The case always feels cool Cons: – I swapped out the fans for Noctua
– Case could use a refresh, like USB 3.0 on the front panel Overall Review: I would recommend this product to others and will be purchasing a second soon
I used this case, a TC-RAILS-26 rails kit, and a StarTech 4 post rack to centralize computer stuff in my office
