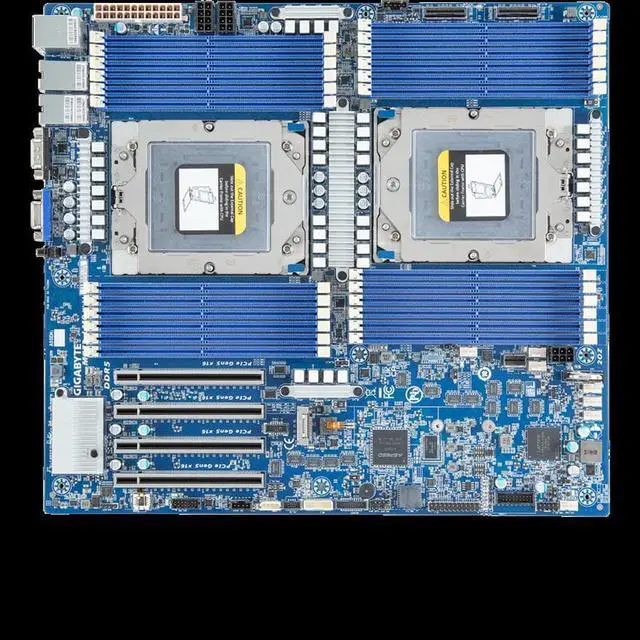

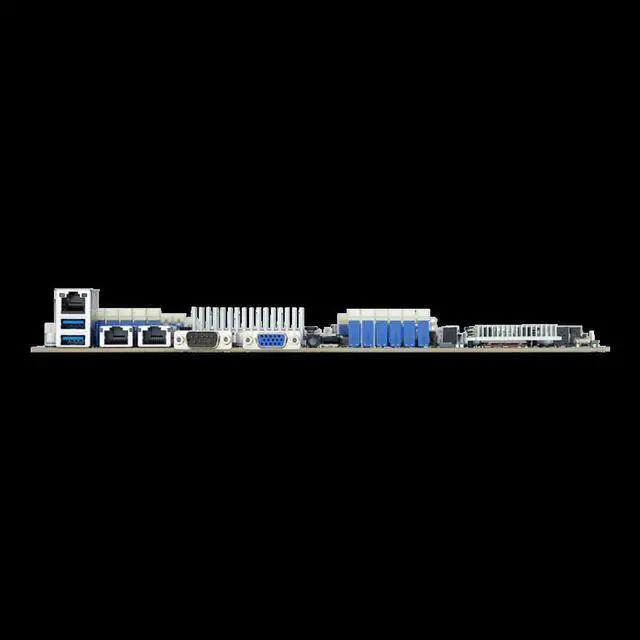

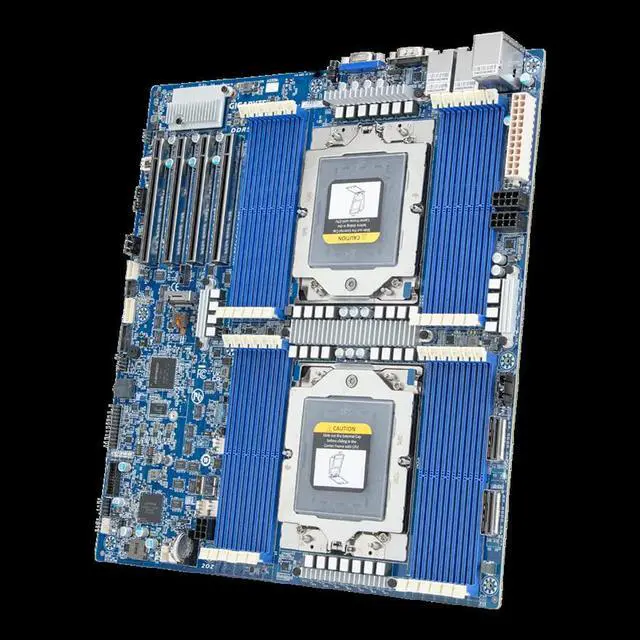

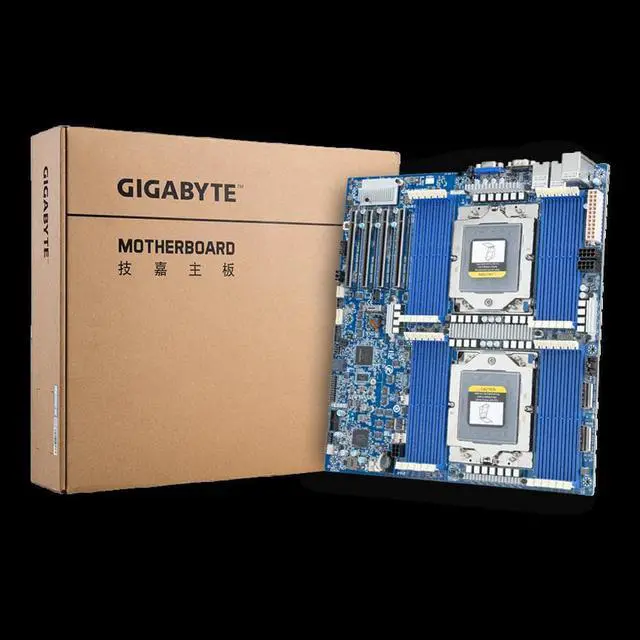

GIGABYTE MZ73-LM0 Rev. 3.x Motherboard – AMD EPYC™ 9005/9004 – E-ATX DP PCIe Gen5 cTDP 400W

The path to AMD’s 5nm ‘Zen 4’ architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

5nm architecture

Compute density increased with more transistors packed in less space

128 CPU cores

Dedicated cores and targeted workloads for Zen 4c & Zen 4 cores

Large L3 cache

Select CPUs have 3x or more L3 cache for technical computing

SP5 compatibility

All 9004 series processors are supported on one platform

12 channels

Memory capacity can achieve 6TB per socket

DDR5 memory

Increased memory throughput and higher DDR5 capacity per DIMM

PCIe 5.0 lanes

Increased IO throughput achieving 128GB/s bandwidth in PCIe x16 lanes

CXL 1.1+ support

Disaggregated compute architecture possible via Compute Express Link


For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

• Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
• Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
• Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom MegaRAID adapters.


GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM includes a complete range of system management functions that includes the following utilities:

• GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
• GSM CLI: A command-line interface for monitoring and managing remotely.
• GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
• GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
• GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
