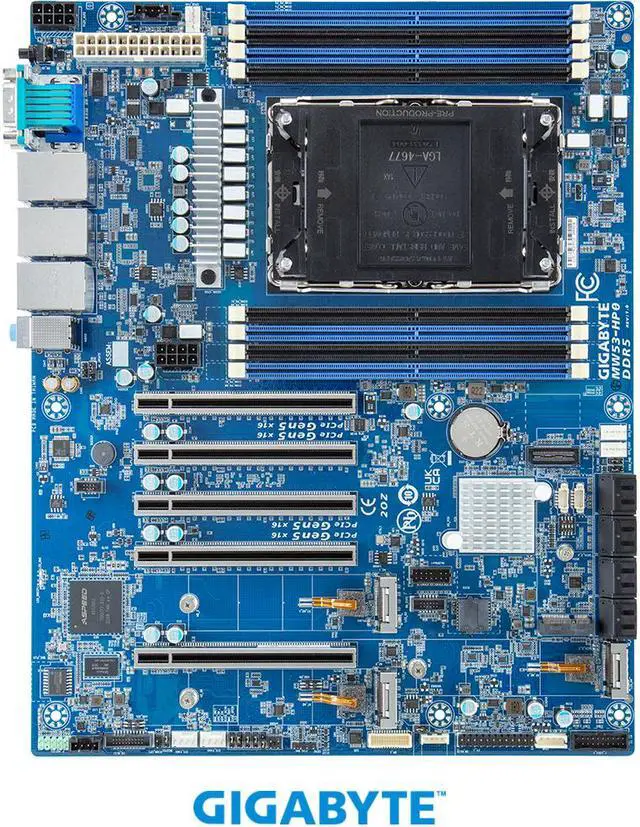

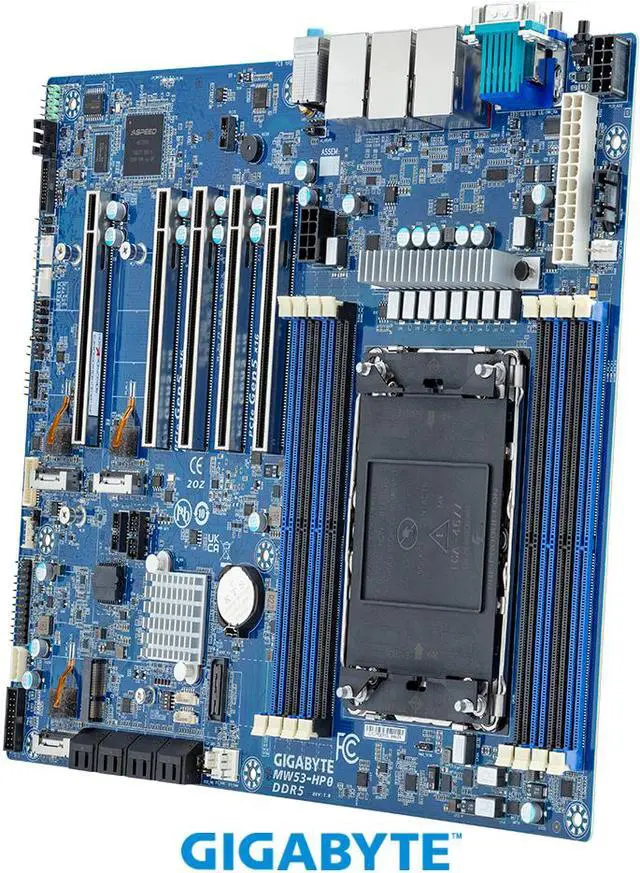

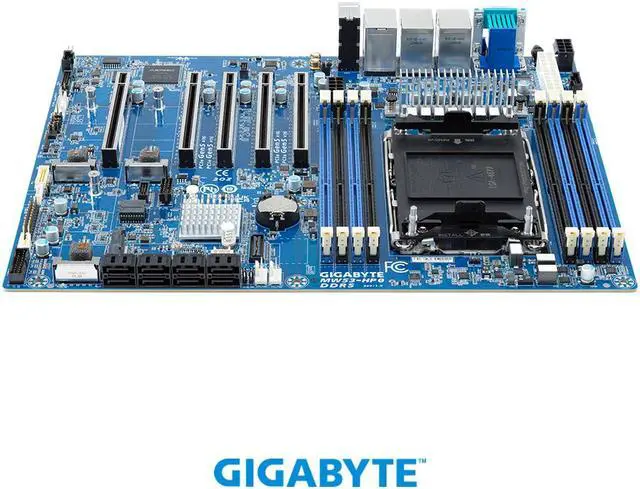

GIGABYTE MW53-HP0 Intel® Xeon® W Workstation Motherboard Board, Single processor, LGA 4677, Intel® W790 Chipset.

Intel Xeon W-2500/2400 with up to 64 PCIe 5.0 lanes for multi-GPU support gives creators more configuration flexibility to equip the variety combination of hardware accelerators.

MW53-HP0 equips several new components to ensure the best PCIe 5.0 signal bandwidth and quality, including low-loss PCB, PCIe Slots, Re-drivers, Switches that are specifically designed for PCIe 5.0. There will be no compromise on PCIe 5.0 performance on PCIe interface.

Plentiful NVMe and SATA Storage interface can fulfill your hot and cold data processing requirement at once.

• 3 x M.2 2280 SSD slots (PCIe 4.0×4)
• 8 x SATA III 6Gb/s ports

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

• Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
• Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
• Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

• GSM Server
• GSM CLI
• GSM Agent
• GSM Mobile
• GSM Plugin

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
