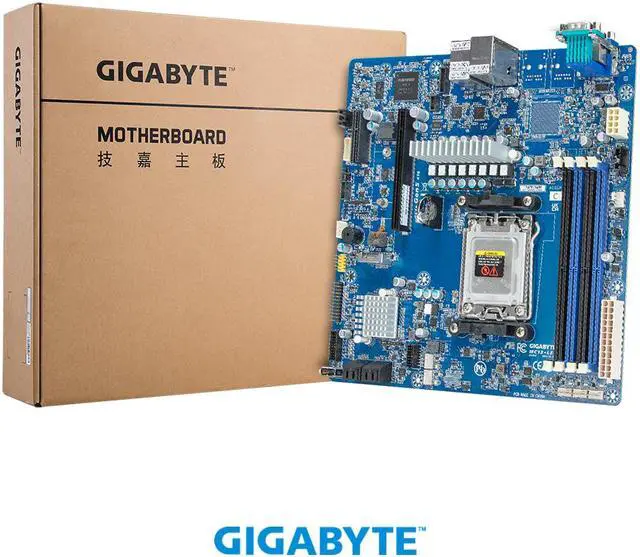

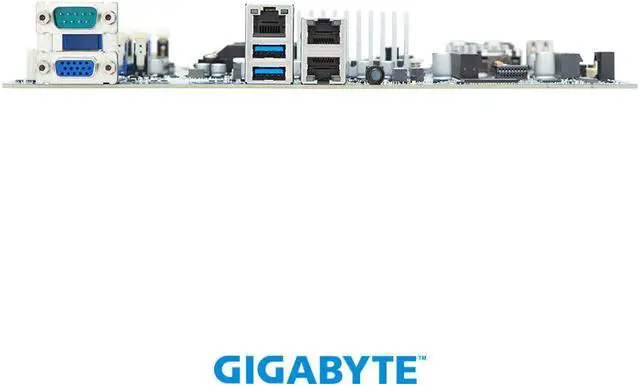

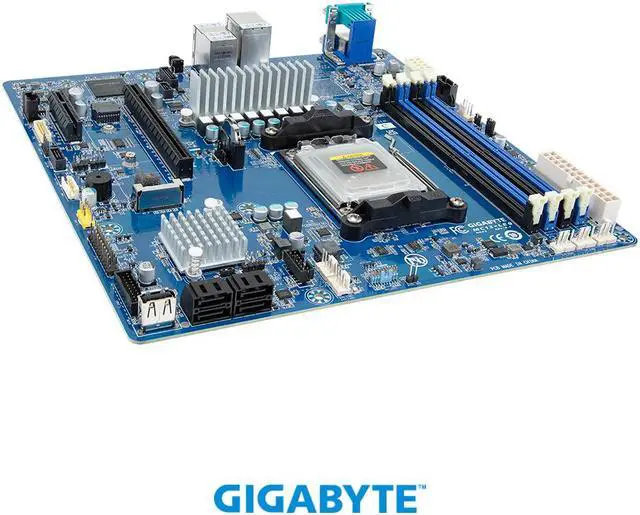

GIGABYTE MC13-LE0 Motherboard – AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 – microATX UP 1Gb/s LAN

AMD AM5 Socket is versatile as it can support the consumer platform yet is able to step into the field of enterprise-level applications, and GIGABYTE has motherboards, workstations, and servers to support it. Taking advantage of its low cost per core and high core count options, the first processor on this platform, the AMD Ryzen 7000 Series, has proven its value in the enterprise server market. Its successor, the AMD EPYC 4004 Series, now further expands capabilities by including even more enterprise features. These “Zen 4” architecture processors can easily handle compute-heavy workloads yet are versatile enough for users to find an optimal choice for applications where performance, productivity, and efficiency matter.

• Zen 4 architecture
• Up to 16 cores
• 5nm technology
• AM5 socket
• B650E chipset
• PCIe 5.0 support
• DDR5 memory

• 4 unbuffered DIMMs memory socket with 2-Channel
• ECC/Non-ECC; DDR5 support
• Up to 5200MHz for 1DPC; up to 3600MHz for 2DPC

MC13-LE0 and MC13-LE1 equip several new components to ensure the best PCIe 5.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, Switches that are specifically designed for PCIe 5.0.

There will be no compromised on PCIe 5.0 performance on PCIe and M.2 interface.

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

• Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
• Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
• Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

• GSM Server
• GSM CLI
• GSM Agent
• GSM Mobile
• GSM Plugin
