CHENBRO RM24100-L2 2U Rackmount Advanced Industrial Server Case
$221.81
CHENBRO RM24100-L2 1.0mm SGCC 2U Rackmount Advanced Industrial Server Case 1 External 5.25″ Drive Bays
| Best Seller Ranking |
#34 in Server Chassis |
|---|---|
| Brand |
CHENBRO |
| Model |
RM24100-L2 |
| Chassis Type |
Rackmount |
| Form Factor |
2U |
| Case Material |
1.0mm SGCC |
| Motherboard Compatibility |
ATX |
| External 5.25 Drive Bays |
1 |
| External 3.5 Drive Bays |
1 |
| Internal 3.5 Drive Bays |
2 |
| Internal 2.5 Drive Bays |
2 |
| Expansion Slots |
7 |
| Front Ports |
2 x USB 2.0 |
| 80mm Fans |
1 |
| Features |
18" short depth for missions critical in telecommunication ,health care ,surveillance and other industriesModular 3-slot full height or 7-slot low profile rear window for flexible configuration Cushion on 3.5" and 2.5" HDD holders for minimized HDD vibration Slideway design for HDD cage installation and removal Cushion on 2.5" HDD holders for minimized HDD vibration Support standard components on motherboard ,PSU ,and 5.25" drive bay for an economical buildup Front Control Power On/OffSystem ResetIndicator Power LEDHDD Activity LEDLAN Activity LED(x2) |
| Dimensions H x W x D |
18" x 16.9" x 3.5" |
| Weight |
15.28lbs |

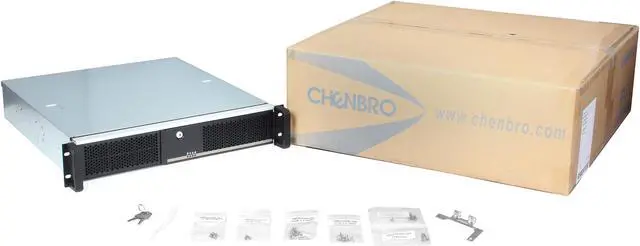

| Package Contents |
1 x 2U chassis base1 x 80mm(T32) ,3P3C Fan1 x For display and control switch ,800mm Cable1 x AC-IN2 x USB 2.0 ,750mm1 x For PS2 PSU Bracket 1 x 3.5" HDD holder1 x 2.5" HDD holder1 x 5.25" + 1 x 3.5" drive bay HDD Cage1 x Single carton with Chenbro logo1 x 2-door type front door with key lock |
| First Listed on Newegg |
April 01 ,2014 |
4 reviews for CHENBRO RM24100-L2 2U Rackmount Advanced Industrial Server Case
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Anonymous –
Pros: Low cost is the main attraction but it’s not cheap or flimsy
Drive bay supports two hard drives and has shock reducing bushings included
Chenbro was easy to deal with online and on the phone. I got the 3FH slot plate with in a few days Cons: It’s a bare bones case without power supply and only has one fan
The description suggested it comes with slots for 3FH or 7LP.
This model only has the 7LP slots the FH cage can be bought separately Overall Review: I bought one and then went back for a second. My application was industrial so I can’t speak for other applications but it is a nice case.
Anonymous –
Pros: – Locking front door has all the locking
– Front mount standard ATX PSU allows for commodity PSU and leaves space for an 80mm rear exhaust fan.
– Included exhaust fan is actually good, not too loud in my bedroom and moves air even at lower speeds. Fan is loud at full speed but my BIOS allows setting the speed (GA-H110M-S2H)
– Option for rails, front fan, and intrusion detection switch
– Case is very sturdy and feels awesome, not too heavy either Cons: – Airflow to CPU cooler is really poor. Struggles to keep an i3-6100 below listed max temp of 65*, with both horizontal and vertical aftermarket coolers tried. Front mounted PSU seems like it’s going to help airflow, it’s not, get a case with intake fans in the front
– Front fan listed as optional is kind of a gotcha. For one, you have to order a bracket which you can only get directly from Chenbro and is not included. Also, I was unable to install the fan as the positioning of the front mount PSU puts the PSU wire bundle where the fan would have to go
Serhii –
Pros: Nice looking case, solid build quality, locking hot swap bays, reasonable price. Cons: Modern ATX power supplies do not fit into this case! I’ve uploaded pictures for the details:
1. Zip tie dimples in the power supply compartment prevent the PSU from sitting correctly, so the case cover won’t close.
2. PSU mounting bracket holes are in the wrong place.
3. There are no vents in the top cover above the PSU compartment; the case cover completely blocks top PSU vents. Overall Review: Will only work with outdated PS2 power supplies with rear fans. Pay attention to the PS depth too; only short ones will fit.
This could be a very nice case if they added vent holes, removed the dimples, and added another set of PSU bracket holes to accommodate modern PSUs.
Anonymous –
Pros: Solidly built.
Thoughtful design.
Best drive cages I’ve ever seen. Cons: Difficult to locate compatible power supply Overall Review: This is the best rackmount computer/server chassis that I’ve seen to-date. It’s very solidly built, has wonderfully intuitive and secure drive cages, and the metalwork is outstanding.
