ASUS RS700-E11-RS12U-16W10G 1U Rackmount Server Barebone – Newegg.com
$2,799.26
RS700-E11-RS12U
1U dual-socket server powered by 5th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 4 PCIe 5.0 slots, 12 NVMe, 1 dual-slot GPU, OCP 3.0, ASUS ASMB11-iKVM
- Powerful performance: Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training
- Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, and 4 PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Ready for AI and HPC workloads: Supports 1 dual-slot GPU, including Intel Data Center GPU Flex series and NVIDIA A100
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
System Layout
* SAS support only from optional SAS HBA/RAID card.
Panel Layout

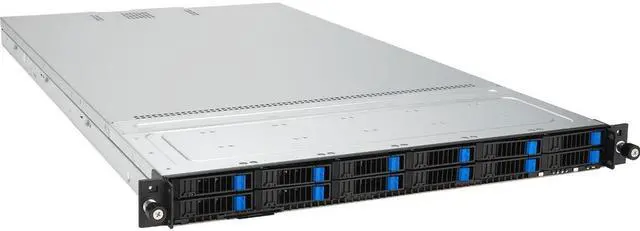

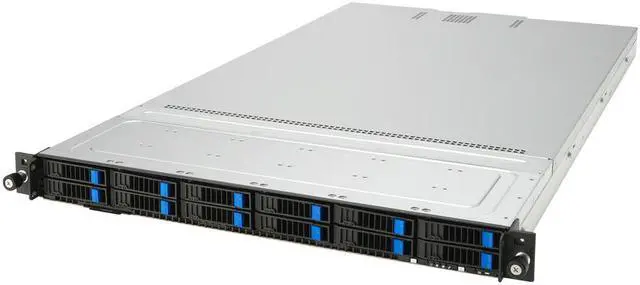

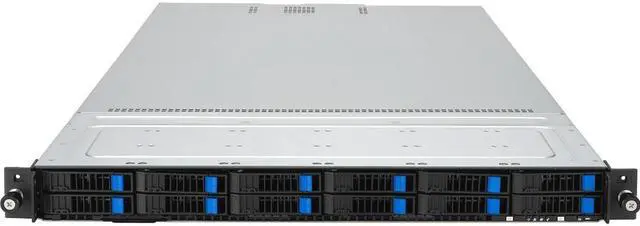

Front Panel
12 x NVMe/SATA/SAS*
* SAS support only from optional SAS HBA/RAID card.

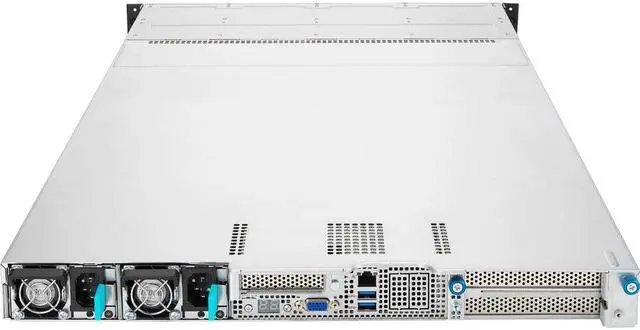

Rear Panel
* SAS support only from optional SAS HBA/RAID card.
Block Diagram
5th Gen Intel® Xeon® Scalable Processors
5th Gen Intel® Xeon® processors unleashes up to 21% average general-purpose performance gain, significantly improving AI inference and training, all via the drop-in-compatible LGA-4677 socket. This innovation powerhouse accelerate AI, HPC, Analytics, Networking, Storage and offer eight DDR5-5600 memory channels for up to 2 TB capacity, 80 PCI Express® 5.0 lanes with CXL 1.1 support, and a 350 W TDP for 1P and 2P configurations — ready for the future of computing.
CPU-balanced Architecture
The new 5th Gen Intel® Xeon® Scalable Processors excel at providing full features and functionality for both dual-socket and single-socket platforms, but our new servers ASUS is introducing an CPU-balanced architecture to enable secure and optimal CPU-performance efficiency.
This architecture extends the full bandwidth to either dual- or single-CPU configurations, enabling more computing capability and much-improved overall power efficiency for compute-intensive workloads. This architecture allows customers to take full advantage of bandwidth capabilities of the dual-CPU architecture with a single CPU, while offering the flexibility to upgrade later with the addition of a second CPU.
* Features, specification and design vary by models and configuration.
World Records Leadership
ASUS holds the most amount of records in dual-socket (2P) and single-socket (1P) on SPEC CPU 2017 benchmark and dominate the computing performance. These top performance results provide a useful insight into compute-intensive workloads on different computer systems, enabling our customers to reduce complexity, tackle challenging workloads and accelerate system validations.
Computing Performance
ASUS servers feature Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for timesensitive applications such as financial services or data center operations.
Core Optimizer
Maximizes the processor frequency in multi-core operations, avoiding frequency shifting for reduced latency.
Engine Boost
Automatic power acceleration with an innovative voltage design to increase server overall performance.
Workload Presets
Preconfigured BIOS server profiles based on workloads and benchmarks for improved performance and efficiency.
* SPEC is a corporation formed to establish and endorse standardized benchmarks and tools to evaluate performance and energy efficiency of computer systems.
Power Efficiency
ASUS select servers achieved most power efficiency positions on the SPEC Power benchmark for energy efficiency and demonstrate to customers how they can achieve faster deployments and higher energy efficiency for their IT infrastructure.
ASUS Power Balancer
Adjust overall loading automatically based on real-time monitoring to decrease overall power consumption for Improved efficiency and cost/performance optimization.
Thermal Radar 2.0
Features intelligent fan-curve adjustments to fit the real-time server usage patterns and lower fan power consumption.
Scalable Storage Solution
This server features scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security.
RS700-E11-RS12U
12 x NVMe/SATA/SAS*
12 x 2.5″ hot-swap drive bays
RS700-E11-RS4U
4 x NVMe/SATA/SAS*
4 x 3.5″ hot-swap drive bays
* SAS support only from optional SAS HBA/RAID card.
* The 2 x NVMe configuration in rear bay will require two PCIe slots.
Accelerating performance for AI workloads
One dual-slot GPU
This server features multiple PCIe 5.0 slots to meet the demands of AI and high-performance computing (HPC) workloads, including supporting one Intel latest data center GPU or NVIDIA GPU. The scalable configurations in one 2U system provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.
* The total number of NVMe drives installed will affect the total number of GPUs that can be installed.
* Refer to GPU compatible list by models.
NVIDIAOmniverse
3D design collaboration and simulation
ASUS solutions for Omniverse give your organization a comprehensive package for Omniverse Enterprise. The diverse portfolio allows us to tailor a package to be fully compatible with your design environment and needs. As our long-term partnership with NVIDIA and ISV certifications, we’re fully invested in the Omniverse ecosystem and ready to help our partners develop new segments on this exciting platform.
Front Bezel Protection
ASUS servers are designed with optional front bezel with a lock that has been tested and supported by our technical team to avoid accidental usage or removal and ensure your data center is fully safe.
Server-management Solution
BMC
Remote server management
ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
IT Infrastructure Management Software
Streamline IT operations via a single dashboard
ASUS Control Center (ACC) is remote IT management software designed for monitoring your hardware and software IT assets and inventory status and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with Hotfix updates, allowing easier server management for any IT infrastructure.
Enhanced Security
Hardware Root-of-Trust Solution
Detect, recover, boot and protect
ASUS servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
* Platform Firmware Resilience (PFR) module must be specified at time of purchase and is factory-fitted. It is not for sale separately.
Trusted Platform Module 2.0
ASUS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
| Best Seller Ranking |
#33 in Server Barebones |
|---|---|
| Brand |
ASUS |
| Model |
RS700-E11-RS12U-16W10G |
| Form Factor |
1U Rackmount |
| Workload |
General Purpose Server |
| CPU Type |
Intel Xeon Processor Scalable Family |
| CPU Socket |
LGA 4677 |
| Installed CPU |
No CPU Installed |
| North Bridge |
Intel C741 |
| Memory Slots |
32 x 288Pin |
| Installed Memory Size |
No Memory Installed |
| Memory Type Supported |
DDR5 4800 (1DPC)/4400(2DPC) |
| Installed HDD |
No Storage Installed |
| Serial ATA |
12 x NVMe/SATA/SAS*(HBA/RAID is required to support SATA/SAS hard drives) |
| M.2 |
2 |
| PCI Express |
Up to 3+1 PCIe slot1 x OCP 3.0 or PCIe G5 x16 FHFL1 x PCIe G5 x16 FHFL1 x PCIe G5 x8. LP (Internal)1 x PCIe G5 x16 ,LP |
| First LAN |
Intel I710-AT2 |
| Max. LAN Speed |
10 Gigabit |
| 2.5 Bays |
12 x 2.5" hot-swap bay |
| Front USB |
2 x USB 3.2 Gen1 |
| VGA |
1 x VGA (Rear) |
| Rear USB |
2 x USB 3.2 Gen1 |
| RJ45 |
2 x 10GbE LAN ports (RJ45) |
| Other Ports |
1 x RJ-45 Management LAN port |
| Max. Power |
1600W Redundant 1+1 ,80 Plus Platinum |
| Dimensions |
33.17" x 17.3" x 1.73" |
| Weight |
49.74 lbs. |
| First Listed on Newegg |
December 04 ,2023 |
