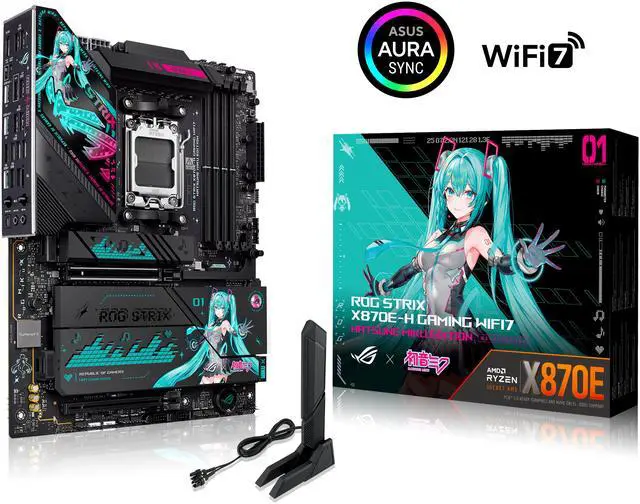

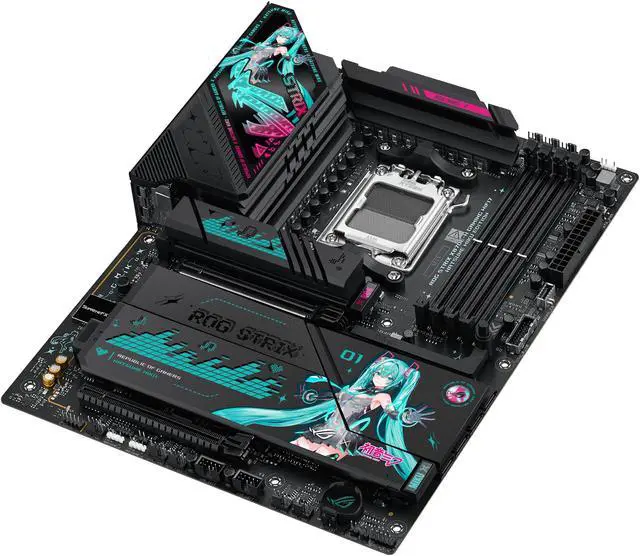

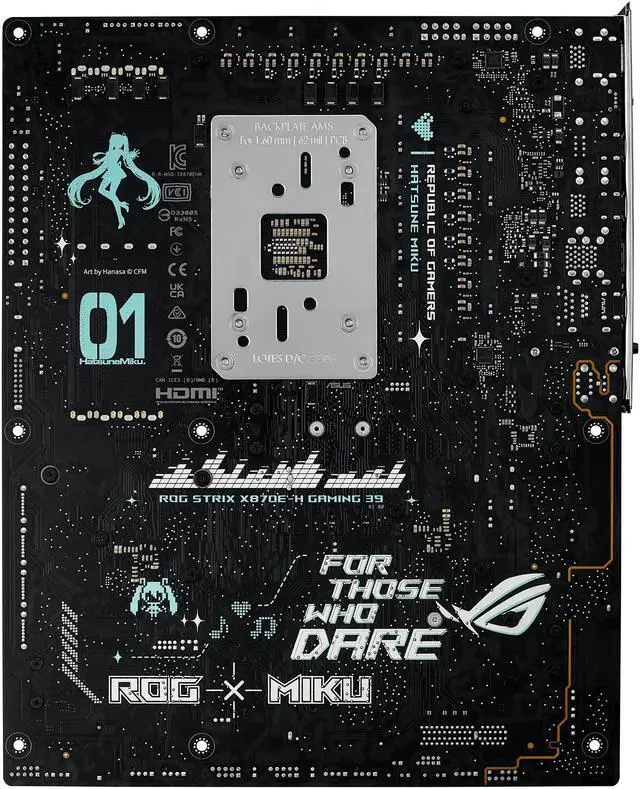

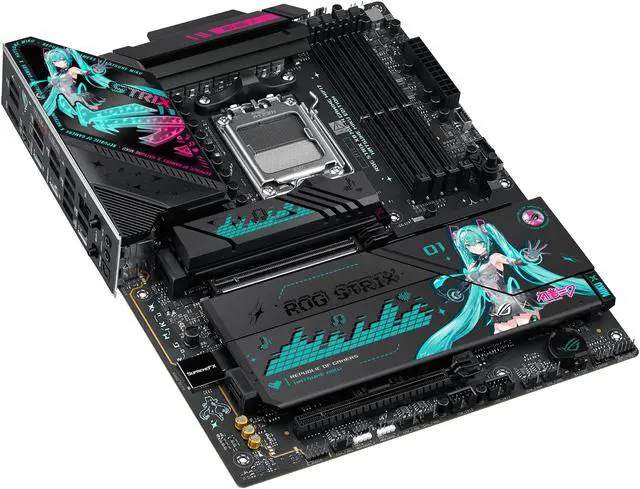

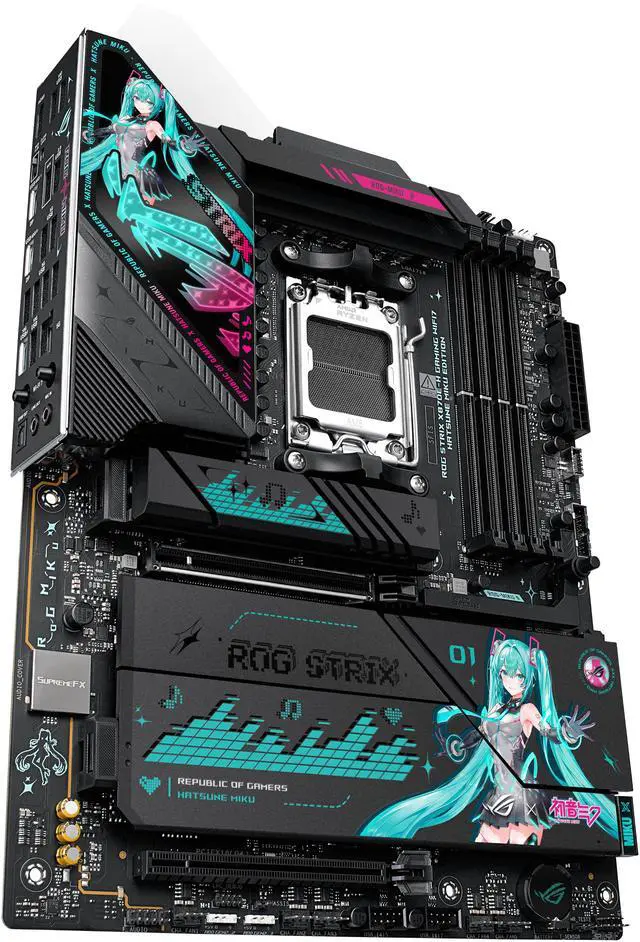

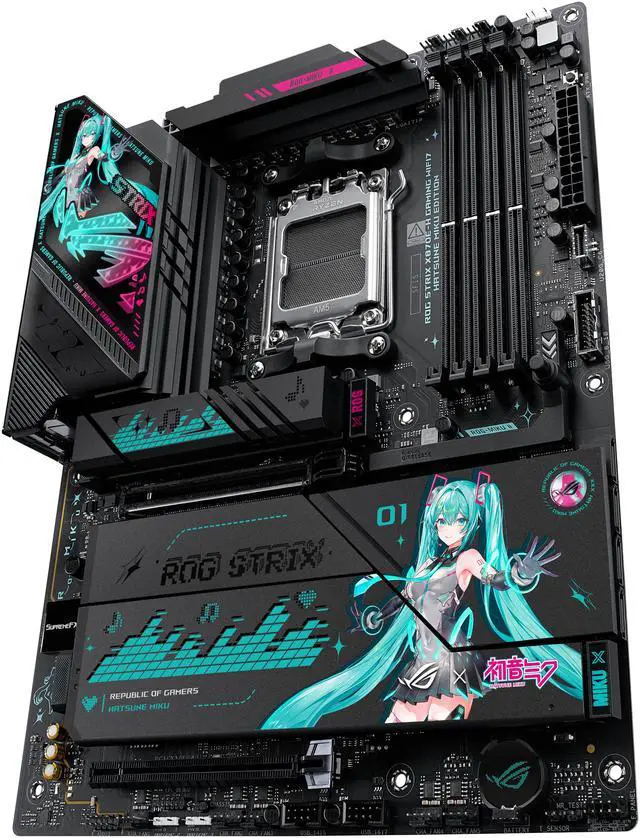

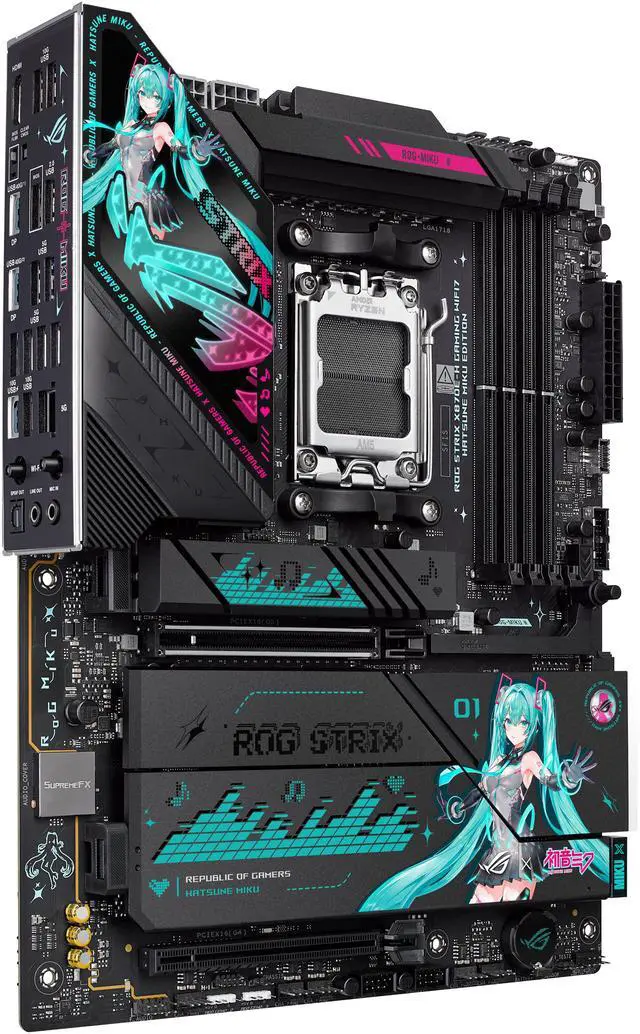

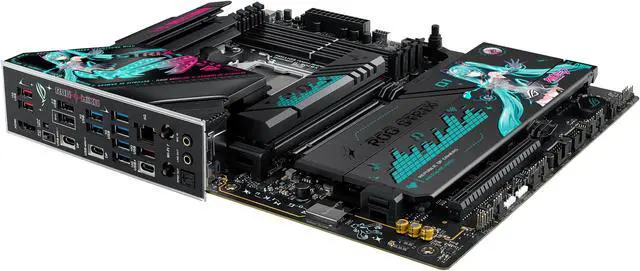

ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION AMD X870E ATX motherboard, 16+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5, WiFi 7, 4x M.2, PCIe 5.0, dual…
$536.78
| Brand |
ASUS |
|---|---|
| Model |
ROG STRIX X870E-H GAMING WIFI7 |
| Part Number |
90MB1MA0-MVAAY0 |
| CPU Socket Type |
AM5 |
| CPU Type |
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset |
AMD X870E |
| Number of Memory Slots |
4x288pin (DDR5) |
| Memory Standard |
Supports up to 8000+MT/s(OC) |
| Maximum Memory Supported |
256GB |
| Channel Supported |
Dual Channel |
| PCI Express 5.0 x16 |
AMD Ryzen 9000 & 7000 Series Desktop Processors*1 x PCIe 5.0 x16 slot (supports x16 mode)AMD Ryzen 8000 Series Desktop Processors*1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** |
| PCI Express 4.0 x16 |
1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Serial ATA SATA |
4 x SATA 6Gb/s |
| M.2 |
Supports 4 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M) ,type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M) ,type 2280/22110 (supports PCIe 5.0 x4 mode)*AMD Ryzen 8000 Series Desktop Processors*M.2_1 slot (Key M) ,type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)M.2_2 slot (Key M) ,type 2280/22110 (Not supports)**AMD X870E ChipsetM.2_3 slot (Key M) ,type 2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M) ,type 2280 (supports PCIe 4.0 x4 mode)* M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device ,PCIEX16(G5) will run x8 only.** M.2_2 will be disabled when using AMD Ryzen 8000 Series Desktop Processors. |
| SATA RAID |
AMD RAIDXpert2 Technology*Ryzen 9000 Series Processors: RAID 0/1/5/10Ryzen 8000 Series Processors: RAID 0/1Ryzen 7000 Series Processors: RAID 0/1/10 |
| Audio Chipset |
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection ,Multi-streaming ,Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*Audio Features – SupremeFX Shielding Technology- Savitech SV3H712 AMP – Rear optical S/PDIF out port- Premium audio capacitors- Audio cover |
| Audio Channels |
7.1 Channels |
| Max LAN Speed |
5Gbps |
| Wireless LAN |
Wi-Fi 802.11 be |
| Bluetooth |
Bluetooth 5.4 |

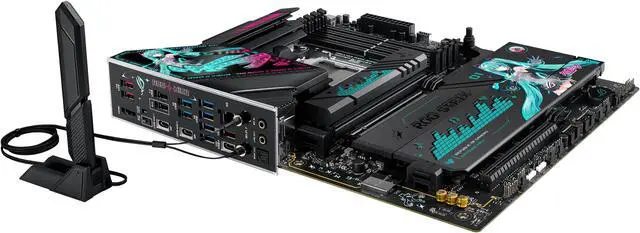

| Back I/O Ports |
2 x USB4 (40Gbps) ports(2 x USB Type-C)4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)6 x USB 5Gbps ports (6 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x HDMI port1 x Wi-Fi module1 x Realtek 5Gb Ethernet2 x Audio jacks 1 x Optical S/PDIF out port1 x BIOS FlashBack button 1 x Clear CMOS button |
| Onboard USB |
1 x USB 20Gbps connector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Other Connectors |
Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersMiscellaneous3 x Addressable RGB Gen 2 headers1 x Chassis Intrusion header1 x CPU Over voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x Start button1 x 10-1 pin Front Panel System header1 x Thermal Sensor header |
| Form Factor |
ATX |
| Dimensions W x L |
12.0" x 9.6" |
| Power Pin |
1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connector |
| BIOS Feature |
256 Mb Flash ROM ,UEFI AMI BIOS |
| Software |
ROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirstASUS AI AdvisorASUS DriverHub- AIDA64 Extreme (60 days free trial) – HWiNFOASUS GlideXUSB Wattage WatcherTurboV Core Adobe Creative Cloud (Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideAI Cache BoostASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyFlexKey |
| Windows 11 |
Supported |
| Features |
Extreme Engine Digi+- 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Latch- M.2 Q-Release- PCIe Slot Q-Release- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red] ,DRAM [yellow] ,VGA [white] ,Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync-Addressable RGB Gen 2 headers |
| First Listed on Newegg |
September 04 ,2025 |
