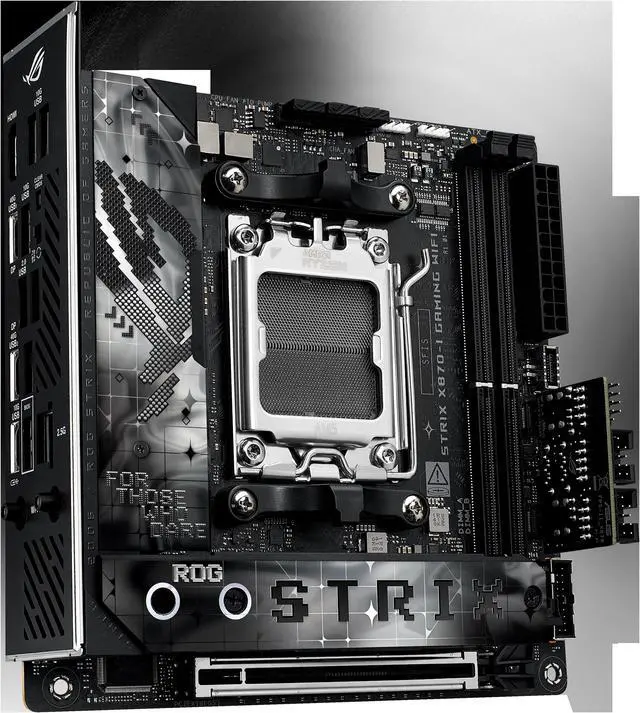

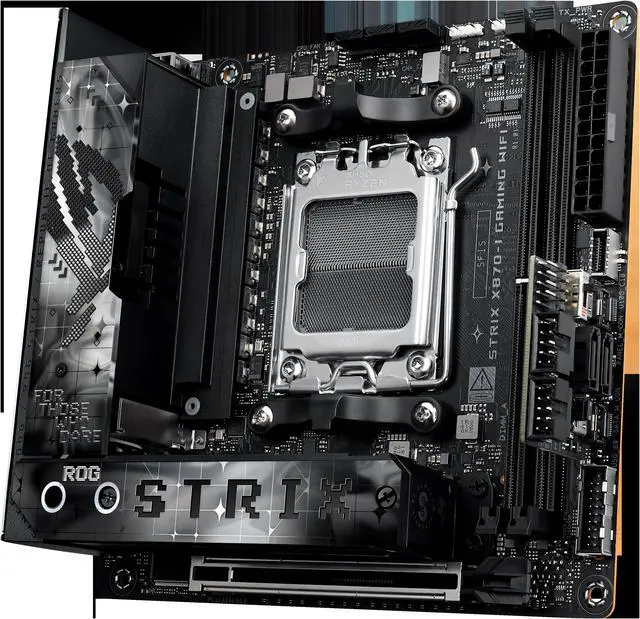

ASUS ROG STRIX X870-I GAMING WIFI AMD AM5 X870 Mini ITX mITX motherboard 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 2x
Original price was: $610.07.$564.01Current price is: $564.01.
ASUS ROG STRIX X870-I GAMING WIFI AMD AM5 X870 Mini ITX mITX motherboard 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 2x M.2, PCIe® 5.0, Q-Release Slim, USB4®, AI OCing & Ne
| Best Seller Ranking |
#98 in AMD Motherboards |
|---|---|
| Brand |
ASUS |
| Series |
ROG |
| Model |
STRIX X870-I GAMING WIFI |
| CPU Socket Type |
AM5 |
| CPU Type |
Ryzen 7000 Series ,Ryzen 8000 Series ,Ryzen 9000 Series |
| Chipset |
AMD X870 |
| Number of Memory Slots |
4x288pin (DDR5) |
| Maximum Memory Supported |
96GB |
| ECC Supported |
Non-ECC |
| Buffer Supported |
Un-buffered |
| Memory Feature |
2 x DIMM slots ,max. 96GB ,DDR5Supports up to 8400+MT/s(OC) with Ryzen™ 9000 Series Processors,8600+MT/s(OC) with Ryzen™ 8000 Series Processors,8000+MT/s(OC) with Ryzen™ 7000 Series Processors,ECC and Non-ECC Un-buffered DIMM*"Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO)ASUS Enhanced Memory Profile (AEMP)* Supported memory types ,data rate (speed) ,and number of DRAM modules vary depending on the CPU and memoryconfiguration ,for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.* Non-ECC ,un-buffered DDR5 memory supports On-Die ECC function. |
| PCI Express 5.0 x16 |
AMD Ryzen 9000 & 7000 Series Desktop Processors1 x PCIe 5.0 x16 slot |
| PCI Express 4.0 x16 |
AMD Ryzen 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
| Serial ATA SATA |
2 x SATA 6Gb/s |
| M.2 |
AMD Ryzen 9000 & 7000 Series Desktop Processors*M.2_1 slot (Key M) ,type 2280(supports PCIe 5.0 x4 mode)AMD Ryzen 8000 Series Desktop Processors*M.2_1 slot (Key M) ,type 2280(supports PCIe 4.0 x4 mode)AMD X870 ChipsetM.2_2 slot (Key M) ,type 2242/2260/2280 (supports PCIe 4.0 x4)*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports. |
| SATA RAID |
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1 |
| Max LAN Speed |
2.5Gbps |
| Wireless LAN |
Wi-Fi 7*2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band**Support Wi-Fi 7 320MHz bandwidth ,up to 6.5Gbpstransfer rate.*Wi-Fi features may vary depending on the operating systemFor Windows 11 ,Wi-Fi 7 will require24H2 or later version for full functions ,Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10 ,please note that no driver is available ,refer to the Wi-Fi chipset vendor's website for details.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
| Bluetooth |
Bluetooth v5.4****** The Bluetooth version may vary ,please refer to the Wi-Fi module manufacturer's website for the latest specifications. |

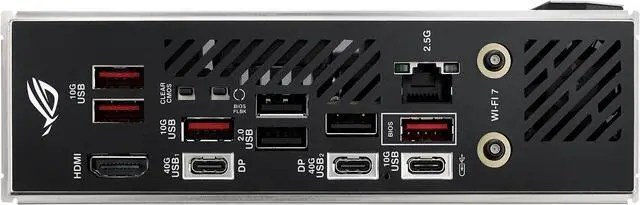

| Back I/O Ports |
1 x Antenna Bracket ,1 x Clear CMOS Button ,1 x HDMI ,1 x LAN (RJ45) ,1 x Q-Flash Plus Button ,1 x USB 3.1 Gen 2 Type-C ,2 x USB 3.2 Gen 2×2 Type-C ,3 x USB 2.0/1.1 ,4 x USB 3.1 Gen 2 Type-A |
| Onboard USB |
USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header support(s) 2additional USB 5Gbps ports |
| Other Connectors |
Fan and Cooling Related 1 x 4-pin CPU Fan header(s)1 x 4-pin AIO Pump header(s)1 x 4-pin Chassis Fan header(s)Power Related 1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage Related 2 x M.2 slots (Key M) Miscellaneous2 x Addressable Gen 2 headers1 x 2-pin Power Button header1 x Thermal Sensor header2 x USB Type-C® connectors to install ROG FPS cardROG FPS card 2 x SATA 6Gb/s ports1 x CPU Over Voltage jumper1 x Front Panel header1 x Alteration PCIe Mode switch2 x USB 2.0 headers support 3additional USB 2.0 ports |
| Form Factor |
Mini ITX |
| Dimensions W x L |
6.7" x 6.7" |
| BIOS Feature |
256 Mb Flash ROM ,UEFI AMI BIOS |
| Software |
ROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmoury Crate- AIDA64 (60 days free trial) – Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirst- HWiNFO- Power SavingASUS Driver HubASUS GlideXAdobe Creative Cloud (Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFIBIOS EZ Mode- ASUSMyHotkeyFlexKeyDynamic OC Switcher |
| Features |
ASUS Q-Design – M.2 Q-Latch- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Code- Q-DIMM- Q-LED (CPU [red] ,DRAM [yellow] ,VGA [white] ,Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- Aluminum backplateASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 header(s)ROG STRIX HIVE II1 x USB Type-C® connects to motherboard2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®) 1 x Headphone jack with mic in1 x Power button 1 x FlexKey button 1 x Volume control knob with mute button Q-LED (CPU [red] ,DRAM [yellow] ,VGA [white] ,Boot Device [yellow green]) |

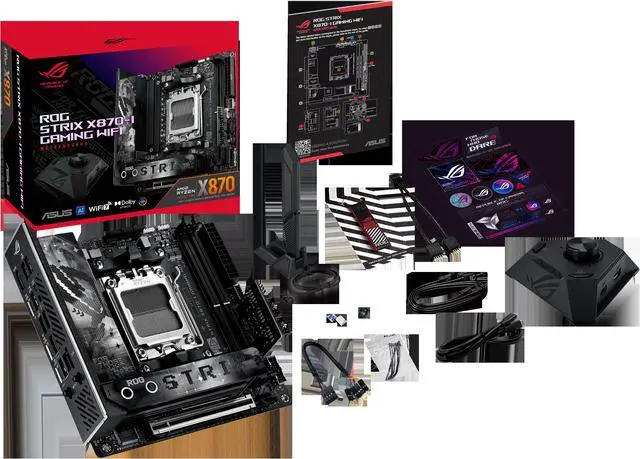

| Package Contents |
Cables1 x Panel cable1 x ROG USB2.0 splitter cable2 x SATA 6Gb/s cables ROG FPS Card1 x ROG FPS CardROG STRIX HIVE II1 x ROG STRIX HIVE II1 x USB Type-C® power connection cableMiscellaneous1 x ASUS WiFi Q-Antenna1 x Cable ties package1 x M.2 Q-Latch package(s)1 x ROG key chain1 x ROG Strix stickers1 x M.2 rubber package(s)Documentation1 x Quick start guide |
| First Listed on Newegg |
September 29 ,2024 |
6 reviews for ASUS ROG STRIX X870-I GAMING WIFI AMD AM5 X870 Mini ITX mITX motherboard 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 2x
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Anonymous –
Cons: DOA Overall Review: Purchased many PCs in life and this one has been a complete waste of my time. Solid yellow dram light with trouble shooting including purchasing new ram and trying an older CPU. Flashed to the latest BIOS, full cmos reset etc etc. not my first rodeo but my last one with Asus. Read all the reviews online and people warning against Asus. Should have listened.
Anonymous –
Pros: Small and works good
Bios flashback was a nice
Its a motherboard Cons: The m.2 stack and FPS card may be a problem with air coolers.
The hive adapter was helpful on first boot for post lights but its not staying connected.
It does have tiny fans for the VRM and chipset but I personally did not find them annoying at all, they ramp up when you hit the power button but stay off until needed. Reddit complaints are a little overblown. Overall Review: Installed with a 9800X3D and a 64 gig kit of 6000 CL32 from the QVL with no issues. Memory context restore dropped post time to about 5 seconds.
david k. –
Pros: solid board Cons: Doing a brand new install. Installed the CPU, Ram and the primary m2 (primary slot is closest to the motherboard, super hard to figure out which one is m2_1 or m2_2). Connect a monitor to the built in hdmi. Hit power, orange light on immediately, small backplate fan at full rpm. Nothing on screen. Reseat ram, install 1 stick in both slots, install other stick in both slots, reset power cables. Flash bios successfully with the back of case buttons and ports. No change in the system, won’t post to bios, nothing out of hdmi. Go to Best buy and get different ram (both ram was on the recommended list). Nothing different. clear cmos, again and again, reset using the back of the motherboard. Now we are down to it is the cpu or the motherboard. Finally try to start it and leave it on while searching the internet for anything but board replacement. After 5 minutes, the small fan cycles down, then the system powers down and restarts. Bios now opens.
Orange is the system color when there is a problem with Memory. They use that same indicator the first time ram is attached to the system and it runs a ram check. No flashing lights or any documentation.
The On first startup documentation should say that the initial ram check can take 2-5 minutes and to leave your pc running.
What a stressful waste of time. Overall Review: I have built many PCs and my friend has too. The behavior of this board on first startup was unknown to me and totally undocumented. What a pain.
Anonymous –
Pros: Honestly, I purchased this product due to its small form factor and numerous features.
Its a bit overkill for what I need but its great.
I was worried the HIVE may not have been a good idea but its a niche novelty. The light features during boot allows for quicker troubleshooting(assuming you can remember what each color means without looking it up each time LOL) and ports allow quick input for external usb-based storage and peripherals. Cons: The hive was worrying me as after my first few restarts of the PC, it wasn’t recognizing my speakers via 3.5mm jack and you can’t just plug it into the PC case as there is no connection for that port to the motherboard..but I had read somewhere it was behind a VRM FAN…
ANYWAYYY, THE fix was for me to go to Bluetooth settings page on windows 11 and I saw “Audio Dongle” driver error, I had windows update the driver, restarted and my week of no music came to an end.
The product is great on its own, but those who want to use Artic III AIO will have to flip the orientation of the cooler, as it will rub against the OEM SSD Heat Dissipation Air Cooler block. It has a VRM fan, so you can just direct the AIO VRM fan to the SSD side anyway since the GPU will be there heating up that side of the motherboard. However, you can remove it and squeeze a PNY CS3150 Forced Air cooler, which works but sounds like a jet engine. I’m currently running an MP700 Pro and going to hold on to the hydro block for a later build for a custom water loop. Overall Review: Its not necessary unless youre building a small form factor PC and the HIVE is a nice touch, you only need it if you want to plug in 3.5mm headphone jack and its gives you the PC power up test colors next to its remote power button. But WIFI 7, Bluetooth 5.2, plenty of ports, i’d pay a lil extra for this future proof motherboard, especially since AM4/AM5 are going to be supported for yearssss unlike INTEL.
Anonymous –
Overall Review: (Direct purchase from Newegg) Never received the product. Someone in Newegg’s warehouse swapped the product out with another product and newegg refused to honor the return / replacement.
Anonymous –
Pros: lots of features Cons: expo is not stable Overall Review: should have went gigabyte.
