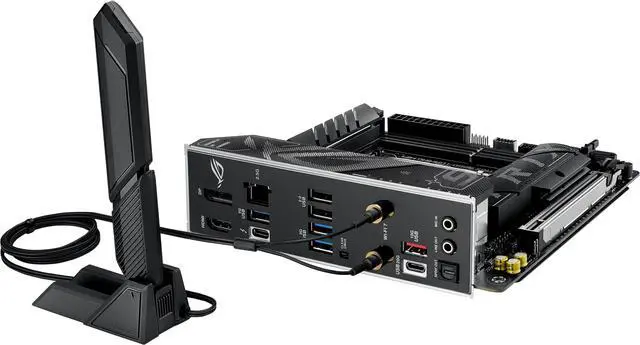

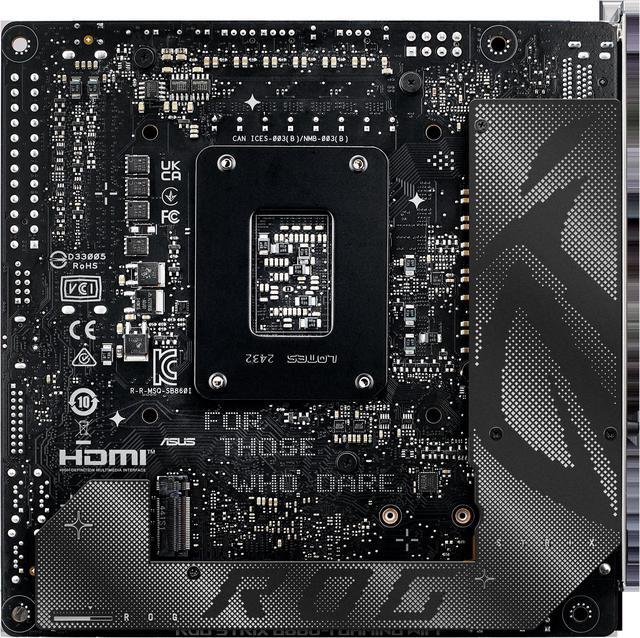

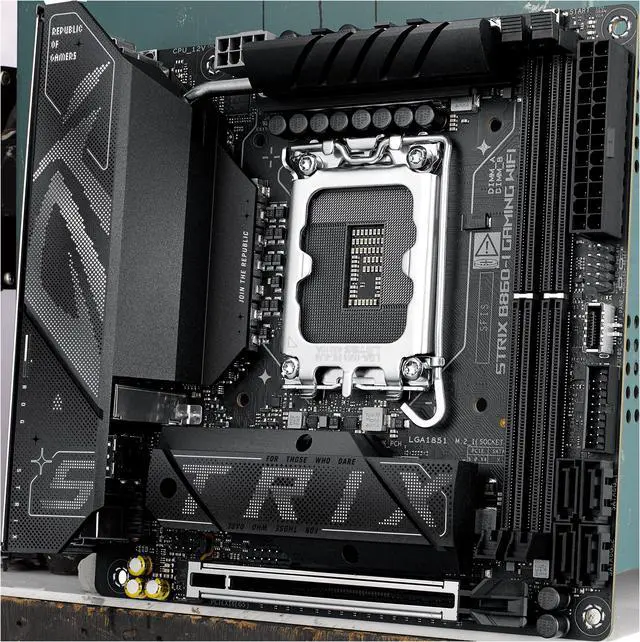

ASUS ROG STRIX B860-I GAMING WIFI B860 LGA 1851 mITX Mini-ITX motherboard, Intel Core Ultra Series 2 Ready, Advanced AI ready, 10+1+2+1 stage, DDR5,
$261.13
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content.css)
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content_responsive.css)
| Best Seller Ranking |
#39 in Intel Motherboards |
|---|---|
| Brand |
ASUS |
| Model |
ROG STRIX B860-I GAMING WIFI |
| Part Number |
90MB1JB0-M0AAY0 |
| CPU Socket Type |
LGA 1851 |
| CPU Type |
Intel Core Ultra Processors (Series 2) |
| Chipset |
Intel B860 |
| Number of Memory Slots |
2x288pin (DDR5) |
| Memory Standard |
Up to 9066+MT/s (OC) |
| Maximum Memory Supported |
96GB |
| Channel Supported |
Dual Channel |
| Memory Feature |
Dual channel memory architectureDIMM FitSupports Intel Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III (AEMPIII) |
| PCI Express 5.0 x16 |
Intel Core Ultra Processors (Series 2)1 x PCIe 5.0 x16 slot |
| PCI Express 4.0 x16 |
Intel B860 ChipsetM.2_2 slot (Key M) ,type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Serial ATA SATA |
4 x SATA 6Gb/s |
| M.2 |
Intel Core Ultra Processors (Series 2)M.2_1 slot (Key M) ,type 2260/2280 (supports PCIe 5.0 x4 mode)Intel B860 Chipset**M.2_2 slot (Key M) ,type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| SATA RAID |
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio Chipset |
Realtek ALC1220P |
| Audio Channels |
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection ,Multi-streaming ,Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*Audio Features – SupremeFX Shielding Technology- Savitech SV3H712 AMP – Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers* Due to limitations in HDA bandwidth ,32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Max LAN Speed |
2.5Gbps |
| Wireless LAN |
Wi-Fi 802.11 be |
| Bluetooth |
Bluetooth 5.4 |

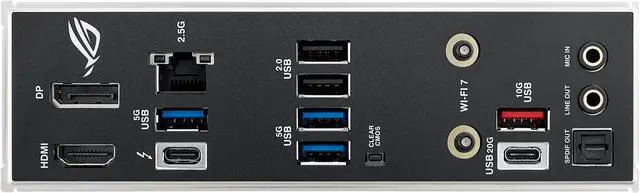

| Back I/O Ports |
1 x Thunderbolt 4 port (1 x USB Type-C)1 x USB 20Gbps port (1 x USB Type-C)1 x USB 10Gbps ports (1 x Type-A)3 x USB 5Gbps ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi module1 x Intel 2.5Gb Ethernet port2 x Audio jacks 1 x Optical S/PDIF out port1 x Clear CMOS button |
| Onboard USB |
1 x USB 10Gbps connector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Other Connectors |
Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin AIO Pump header1 x 4-pin Chassis Fan headersMiscellaneous2 x Addressable Gen2 headers1 x Front Panel Audio header (F_AUDIO)1 x 10-1 pin Front System Panel header1 x Thermal Sensor header |
| BIOS Feature |
256 Mb Flash ROM ,UEFI AMI BIOS |
| Software |
ROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4- GameFirst- Power SavingAIDA64 Extreme (60 days free trial) HWiNFOASUS AI AdvisorASUS DriverHubASUS GlideXTurboV Core Adobe Creative Cloud (Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyNPU Boost |
| Windows 11 |
Windows 11 (22H2 & later) |
| Form Factor |
Mini ITX |
| Dimensions W x L |
6.7" x 6.7" |
| Power Pin |
1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connector |
| Features |
Extreme Engine Digi+- 5K Black metallic capacitors ASUS Q-Design – PCIe Slot Q-Release Slim (with PCIe SafeSlot)- M.2 Q-Latch- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red] ,DRAM [yellow] ,VGA [white] ,Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- Clear CMOS button- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen2 headers |
| Package Contents |
Cables2 x SATA 6Gb/s cables Miscellaneous1 x ASUS WiFi Q-Antenna1 x Cable ties package2 x Screw packages for M.2 SSD1 x Fan Bracket1 x ROG key chain1 x ROG Strix stickersDocumentation1 x Quick start guide |
| First Listed on Newegg |
January 08 ,2025 |
10 reviews for ASUS ROG STRIX B860-I GAMING WIFI B860 LGA 1851 mITX Mini-ITX motherboard, Intel Core Ultra Series 2 Ready, Advanced AI ready, 10+1+2+1 stage, DDR5,
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
CHRISTOPHER T. –
Overall Review: Excellent features for the price.
Anonymous –
Cons: Unfortunately, the Asus B860M mother board I bought is defective. After receiving it and collecting all the pieces to complete the build, (DDR5, cooling fan, CPU, etc.), then assembling everything I couldn’t get any visual output or enter the BIOS. Also unfortunately Newegg says its too late to return it. Overall Review: I can’t recommend this item due to its failure.
Kelly K. –
Pros: – Clean layout makes for an easy build, very DIY friendly
– ASUS quality
– More audio ports on the back I/O panel than most
– Up to 3 video ports, with Thunderbolt/DisplayPort adapter
– All the features most of us will ever need Cons: – Armoury Crate utility app is not as useful as previous ASUS motherboard utility apps
– Limited overclocking support, as is the case for all B860 motherboards. Overall Review: Great motherboard for a compact, micro-ATX build. This motherboard has all the features most people will ever need. The layout is great and makes for a no-fuss build. The board appears to be solid quality, as one would expect from Asus. What makes this board stand out from the pack is the audio; it has dedicated audio layers on the board with high quality components and enough audio ports on the back I/O panel for a 7.1 channel speaker system (my 5.1 channel speaker system is working great with it.) Keep in mind that, as with all motherboards based on the B860 chipset, it does not support CPU overclocking, even if you have an unlocked processor. One thing that could be improved is the software utilities. ASUS DriverHub makes software updates easier than ever, but Armoury Crate utility app could use more functionality, a better UI and be easier to use. I liked the utilities included with my old Asus Z270 motherboard better.
Tips – The included antenna is for Wi-Fi and Bluetooth. Bluetooth will not work properly without the antenna attached.
This was the first build I have done in a few years. The printed manual included with the motherboard is very limited compared to what used to be included with motherboards. If you don’t have a lot of experience building computers, you may want to download the full manual from the ASUS support website before you begin.
My build:
ASUS TUF GAMING B860M-PLUS WIFI motherboard
Intel Core Ultra 7 265K CPU
MSI MAG CoreLiquid E240 Black – AIO ARGB CPU Liquid
G.SKILL Trident Z5 Series 32GB (2 x 16GB) DDR5 6400 Memory
Samsung 990 Evo Plus 1TB SSD (boot) + Samsung 980 Pro 1 TB SSD (games)
Western Digital Blue 4 TB desktop HDD (bulk data)
MSI Ventus GeForce RTX 5070 12GB VENTUS 2X OC graphics card
SeaSonic FOCUS GX ATX 3 (2024) GX-750 80 PLUS GOLD Full Modular PSU
JONSBO TK-1 BLACK V2.0 Micro ATX Mini Tower computer case,
Win 11 Pro
Anonymous –
Pros: Great stuff. Make sure to go into the Realtek audio settings and turn the amp setting up if you have high impedance headphones like me. Was initially disappointed the volume level was so low, and found out they have different amp settings in the app. Overall Review: Great
Anthony W. –
Pros: Not many. Wifi connectors are easy to plug in. Cons: Super flaky motherboard, locks up constantly.
Installed 2 different CPU’s, 2 different HSF, and 2 different sets of memory trying to get this stable.
When I put the computer on any sort of load it hard locks.
Support is pretty much non existent, unless you have a few hours trying to get past their AI chatbot to speak to someone. Then they just blame it on everything else (hence the parts canon that I shot at it) just to string you along past the return date.
26 days into this nightmare and Newegg won’t take it back, so I am pretty sure I am going to be stuck with this paperweight.
Not sure if I am going to be giving any of these companies my business any longer. Overall Review: What happened to Asus?
When Asrock makes a better product you are doing something wrong.
Anonymous –
Pros: Just what I am looking for in a motherboard that can be used in the future Cons: none Overall Review: Looking forward to getting everything put together and trying it out.
Michael M. –
Pros: Wifi 7 is cool I guess Cons: I am on my second board that have had identical issues. Initial set up was fine, no wifi drivers installed no problem got set up hard wire then downloaded all the updated drivers. Apparently this is common these days. I haven’t built a system in over 15 years so that was a challenge initially.
Fast forward about 3 weeks after a normal windows update and reboot the system won’t pass POST/BOOT. Actually at first it wouldn’t pass VGA check (had to find the LED error cords online because they aren’t in the manual provided. Unplugging and replugging the HDMI randomly got VGA to work then the BOOT failures started. System just hangs just before, or at, BIOS startup. Won’t actually enter BIOS.
I tried everything, the long hold power, disconnecting/reconnecting everything, update rollback, every forum post I could find I tried. Eventually resetting/flashing the CMOS got me back into the system but now I don’t have wifi, only LAN. Redownload drivers, nothing. Again every trick in the book would not enable the wifi controller. It was there in Device Manager but just wouldn’t turn on. Trying to un/reinstall didn’t work then I didn’t even have the adapter to attempt to initialize. Spent over an hour on the phone with ASUS Support who were great but did not solve the problem. I’m on week 3 of “Level 2” support and theyre still “researching my issue”. I demanded an RMA and will get Board number 3 in a week or two. Because of course all this went on longer than the Return Policy allows.
During all of this I bought a second board because I have a business to run. I’m now experiencing the beginnings of the same sequence of errors I did before.
I’m currently waiting on Board 3 as RMA replacement for Board 1. There’s no way I can recommend this board to anyone. ASUS needs to dig into the design of this thing something is wrong. Overall Review: DO NOT recommend.
WOULD NOT buy again.
