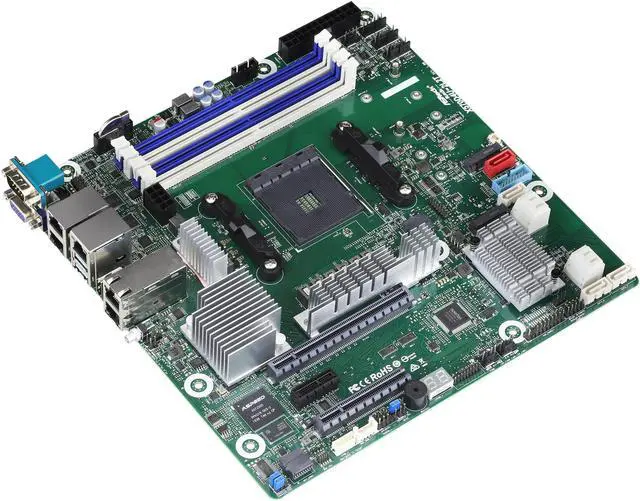

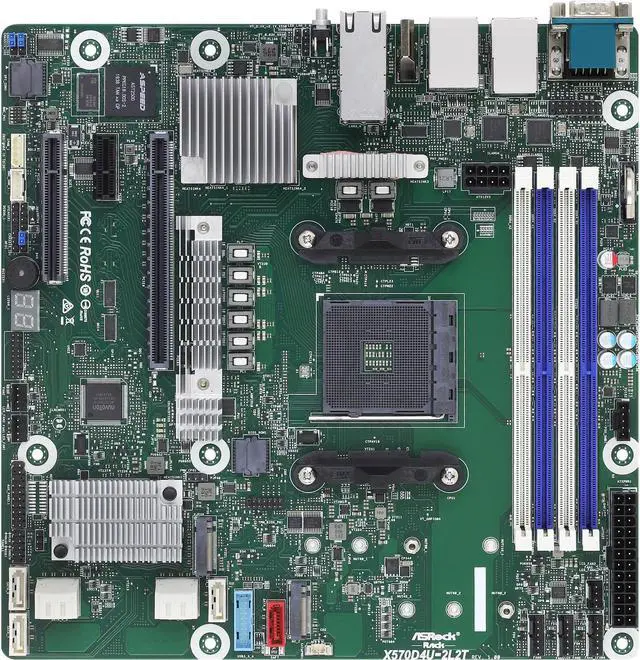

AsRock Rack X570D4U-2L2T micro-ATX Server Motherboard AMD AM4 PGA 1331 Dual 10GLAN
$522.41
AsRock Rack X570D4U-2L2T micro-ATX Server Motherboard AMD AM4 PGA 1331 Dual 10GLAN
| Best Seller Ranking |
#6 in Server Motherboards |
|---|---|
| Brand |
AsRock Rack |
| Model |
X570D4U-2L2T |

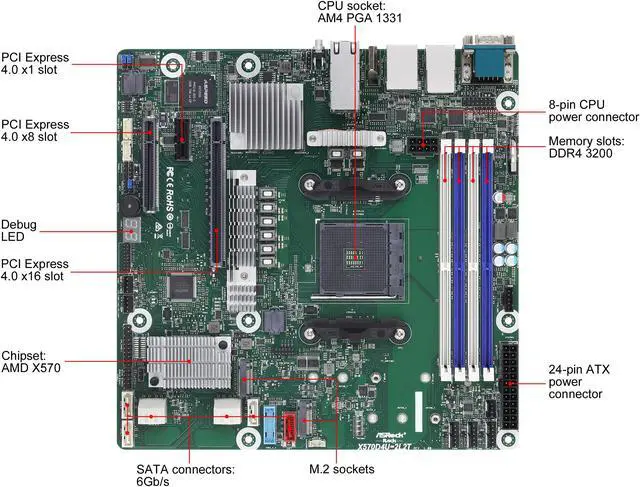

| CPU Socket Type |
Socket AM4 |
| CPU Type |
Supports:AMD Ryzen 5000 ,4000 and 3000 G-Series Desktop Processors with Radeon GraphicsAMD Ryzen 5000 and 3000 Series Desktop ProcessorsAMD Ryzen PRO 5000 ,4000 and 3000 Series Desktop Processors |
| North Bridge |
AMD X570 |
| Number of DDR4 Slots |
4 x 288-pin |
| DDR4 Standard |
DDR4 3200 |
| ECC Supported |
Yes |
| PCI Express 4.0 x16 |
SLOT6: Latch PCIe x16 (PCIe 4.0 x16)* [CPU] ,auto switch to PCIe4.0 x8 when SLOT4 is occupied*Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| PCI Express x8 |
SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU]*Disabled when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| PCI Express x1 |
SLOT5: PCIe 4.0 x1**Supports PCIe3.0 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| SATA |
12 x SATA 6.0Gb/s |
| SATA RAID |
0/1/10 |
| Additional RAID Controller |
X570 (12 SATA 6Gb/s ,support RAID 0/1/10):8 SATA 7-pin connectors ,including 1 support SATA DOM4 SATA via optional M2-HD M.2 device |
| M.2 |
1 M-key (PCIe4.0* x4 or SATA 6Gb/s) ,Form factor: 22110/2280/2260/2242 [CPU]1 M-key (PCIe4.0* x4 or SATA 6Gb/s) ,Form factor: 2280/2260/2242 [X570]*Supports PCIe3.0 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| LAN Chipset |
Intel X550-AT2 |
| LAN Speed |
10Gbps |
| Second LAN Chipset |
Intel I210 |
| Second LAN Speed |
10/100/1000Mbps |
| Max LAN Speed |
10Gbps |
| COM |
1 |

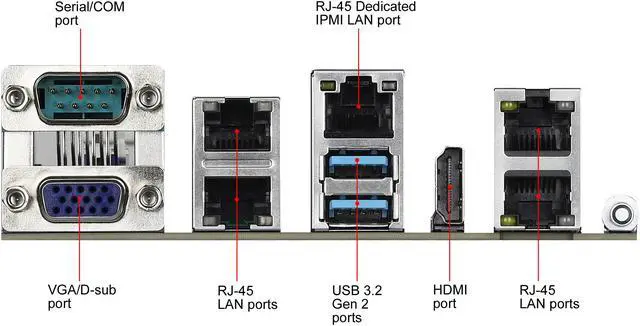

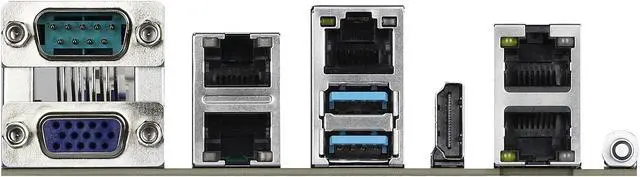

| Video Ports |
1 x HDMI + 1 x VGA |
| RJ45 |
4 x RJ45 |
| USB 3.1 |
2 x USB 3.1 |
| Other Connectors |
Front Lan LED Connector: 1 for LAN3/LAN4Auxiliary Panel Header: 1 (18-pin): chassis intrusion ,system fault LED ,LAN1/LAN2 activity LED ,locate ,SMBusTR1 Header: 1TPM Header: 1 (17-pin ,LPC) ,1 (13-pin ,SPI)IPMB Header: 1VGA Header: 1PMBus CONN: 1Buzzer: 1Fan Header: 3 (6-pin) ,3 (4-pin)Front Panel: 1 (9-pin): power switch ,reset switch ,system power LED ,HDD activity LEDSpeaker Header: 1BMC_SMB Header: 1Power Connector: 1 ATX main power (24-pin) ,1 ATX 12V (8-pin)Clear CMOS: 1 contact pads |
| Form Factor |
Micro ATX |

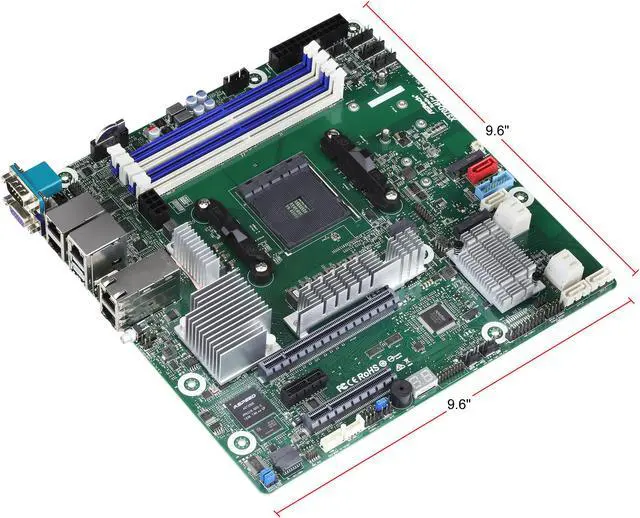

| Dimensions W x L |
9.6" x 9.6" |
| First Listed on Newegg |
September 29 ,2020 |
11 reviews for AsRock Rack X570D4U-2L2T micro-ATX Server Motherboard AMD AM4 PGA 1331 Dual 10GLAN
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Stefano P. –
Pros: All the features you could ever want.
Has sensors for days!
HTML5 WebUI for Remote Console to your OS! Cons: No cons. Overall Review: Love it. I really wish the Ryzen architecture had more PCI-E Lanes because if it did between the board and the CPUs, they would literally be perfect.
Anonymous –
Overall Review: Motherboard is good for ryzen 5950x
Anonymous –
Pros: -8 SATA ports, with one supporting SATADOMs
-Integrated 10Gbase-T
-HTML5 based IPMI
-With good airflow the chipset, vrm, NIC controller all run at very low temps
-One 110mm length M.2 slot
-Temp sensor header Cons: -Only 2 USB ports, which is typical of server boards.
-BIOS PWM fan control doesn’t work, have to use IPMI to change fan settings.
-Slow to boot due to having to initialize the BMC and other components on the board Overall Review: I was having issues with my NAS that was running on a 2700x and Crosshair 7 hero. The CPU apparently doesn’t like 32GB UDIMMS and would have memory/cache errors constantly causing crashes and eventually an array failure false alarm.
Swapped it for a 3900X and this board and so far so good.
Tamago –
Pros: Lots of IPMI/BMC Configurations
Good set of I/O to use from 2x PCIe 4.0 NVMe x4 slots to 8 SATA ports.
Micro-ATX Sized Cons: IPMI Remote File Slow.
X750 Heatsink might be prone to be in-effective.
Semi non-standard FAN I/O between 4 to 6pins. Overall Review: Was researching for months to decided on a good platform for a home server design. Running an AMD R9 5900X w/128GB DDR4 ECC UDIMMs and will either be a VMware ESXi or Promox cluster in the future. Own a old Asrockrack E3C226D2I and its been serving FreeNAS for a good 7yrs but the stability is going down slowly.
Lots of home server consumers out there with a good following of information
Anonymous –
Pros: Had all the features I wanted + 1 egg Cons: Surprised to see it have the same original firmware since the board’s release. Didn’t support Ryzen 5000 series processors with that firmware. Upgraded to latest firmware which caused it to not be able to boot in the BIOS. So reflashed it with a version in the middle and though it said successful, when it rebooted, it bricked. Overall Review: Haven’t tried Asrock that much, this was disappointing.
