AsRock Rack W680D4ID-2T/G5/X550 Deep Mini-ITX Server Motherboard Single Socket 12th & 13th Gen Intel® Core™ series processors (LGA 1700) W680 Dual 10G Lan PCIe 5.0 – Newegg.com
$518.93
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content.css)
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content_responsive.css)
| Core i9 | i9-14900KF(B0) |
|---|---|
| Core i9 | i9-13900T(B0) |
| Core i9 | i9-13900KF(B0) |
| Core i9 | i9-13900F(B0) |
| Core i9 | i9-12900T(C0) |
| Core i9 | i9-12900K(C0) |
| Core i9 | i9-12900(C0) |
| Core i7 | i7-14700K(B0) |
| Core i7 | i7-13700KF(B0) |
| Core i7 | i7-13700F(B0) |
| Core i7 | i7-12700T(C0) |
| Core i7 | i7-12700K(C0) |
| Core i7 | i7-12700(C0) |
| Core i5 | i5-14600K(B0) |
| Core i5 | i5-13600KF(B0) |
| Core i5 | i5-13600(C0) |
| Core i5 | i5-13500(C0) |
| Core i5 | i5-13400F(C0) |
| Core i5 | i5-12600T(H0) |
| Core i5 | i5-12600K(C0) |
| Core i5 | i5-12500T(H0) |
| Core i5 | i5-12490F(C0) |
| Core i5 | i5-12400F(H0) |
| Core i5 | i5-12400(H0) |
| Core i3 | i3-13100T(H0) |
| Core i3 | i3-13100(H0) |
| Core i3 | i3-12300(H0) |
| Core i3 | i3-12100F(H0) |
| Core i9 | i9-14900KS(B0) |
| Core i7 | i3-14100T(H0) |
| Core i7 | i5-14400(C0) |
| Core i7 | i5-14400F(C0) |
| Core i7 | i5-14500(C0) |
| Core i7 | i3-14100(H0) |
| Core i9 | i9-14900F(B0) |
| Core i9 | i7-14700T(B0) |
| Core i7 | i7-14700(B0) |
| Core i7 | i5-14600(B0) |
| Core i9 | i9-14900K(B0) |
|---|---|
| Core i9 | i9-13900KS(B0) |
| Core i9 | i9-13900K(B0) |
| Core i9 | i9-13900(B0) |
| Core i9 | i9-12900KF(C0) |
| Core i9 | i9-12900F(C0) |
| Core i7 | i7-14700KF(B0) |
| Core i7 | i7-13700T(B0) |
| Core i7 | i7-13700K(B0) |
| Core i7 | i7-13700(B0) |
| Core i7 | i7-12700KF(C0) |
| Core i7 | i7-12700F(C0) |
| Core i5 | i5-14600KF(B0) |
| Core i5 | i5-13600T(C0) |
| Core i5 | i5-13600K(B0) |
| Core i5 | i5-13500T(C0) |
| Core i5 | i5-13400T(C0) |
| Core i5 | i5-13400(C0) |
| Core i5 | i5-12600KF(C0) |
| Core i5 | i5-12600(H0) |
| Core i5 | i5-12500(H0) |
| Core i5 | i5-12400T(H0) |
| Core i5 | i5-12400F(C0) |
| Core i5 | i5-12400(C0) |
| Core i3 | i3-13100F(H0) |
| Core i3 | i3-12300T(H0) |
| Core i3 | i3-12100T(H0) |
| Core i3 | i3-12100(H0) |
| Core i7 | i3-14100F(H0) |
| Core i7 | i5-14400(B0) |
| Core i7 | i5-14400F(B0) |
| Core i7 | i5-14400T(C0) |
| Core i7 | i5-14500T(C0) |
| Core i9 | i9-14900T(B0) |
| Core i9 | i9-14900(B0) |
| Core i7 | i7-14700F(B0) |
| Core i7 | i5-14600T(B0) |
| Hynix HMCG78AGBUA081N | 16GB DDR5 5600 non-ECC |
|---|---|
| Crucial CT8G48C40U5.M4A1 | 8GB DDR5 4800 non-ECC |
| Hynix HMCG88AEBEA084N | 32GB DDR5 4800 ECC |
| Samsung M323R4GA3BB0-CQK0D | 32GB DDR5 4800 non-ECC |
| Kingston KSM48E40BS8KM-16HM | 16GB DDR5 4800 ECC |
| Micron MTC10C1084S1EC52BAZ | 16GB DDR5 5200 ECC |
|---|---|
| Crucial CT32G48C40U5.M16A1 | 32GB DDR5 4800 non-ECC |
| Kingston KSM48E40BD8KM-32HM | 32GB DDR5 4800 ECC |
| Crucial CT16G48C40U5.M8A1 | 16GB DDR5 4800 non-ECC |
| WD Ultrastar DC SN655 | 15.36TB U.3 2.5″ |
|---|
| Core i5 |
i5-12400(C0) |
|---|---|
| Core i3 |
i3-12100(H0) |
| Core i9 |
i9-14900(B0) |
| Core i7 |
i5-14600T(B0) |
| Hynix HMCG78AGBUA081N |
16GB DDR5 5600 non-ECC |
| Crucial CT8G48C40U5.M4A1 |
8GB DDR5 4800 non-ECC |
| Hynix HMCG88AEBEA084N |
32GB DDR5 4800 ECC |
| Samsung M323R4GA3BB0-CQK0D |
32GB DDR5 4800 non-ECC |
| Kingston KSM48E40BS8KM-16HM |
16GB DDR5 4800 ECC |
| Micron MTC10C1084S1EC52BAZ |
16GB DDR5 5200 ECC |
| Crucial CT32G48C40U5.M16A1 |
32GB DDR5 4800 non-ECC |
| Kingston KSM48E40BD8KM-32HM |
32GB DDR5 4800 ECC |
| Crucial CT16G48C40U5.M8A1 |
16GB DDR5 4800 non-ECC |
| WD Ultrastar DC SN655 |
15.36TB U.3 2.5" |
| Best Seller Ranking |
#61 in Server Motherboards |
| Brand |
AsRock Rack |
| Model |
W680D4ID-2T/G5/X550 |
| CPU Socket Type |
LGA 1700 |
| CPU Type |
12th Gen Intel Core i3 ,12th Gen Intel Core i5 ,12th Gen Intel Core i7 ,12th Gen Intel Core i9 ,13th Gen Intel Core i3 ,13th Gen Intel Core i5 ,13th Gen Intel Core i7 ,13th Gen Intel Core i9 ,14th Gen Intel Core i3 ,14th Gen Intel Core i5 ,14th Gen Intel Core i7 ,14th Gen Intel Core i9 ,Intel Celeron ,Intel Pentium |
| North Bridge |
Intel W680 |
| Memory Slots |
4 x DDR5 288-pin |
| Memory Standard |
DDR5 4400 |
| Maximum Memory Supported |
192GB |
| ECC Supported |
Yes |
| PCI Express 5.0 x16 |
SLOT7: PCIe5.0 x16 [CPU] |
| Other Slots |
1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH]1 OCuLink (PCIe4.0 x4) [PCH] |
| SATA |
8 x SATA 6.0Gb/s |
| M.2 |
1 M-key (PCIe4.0 x4) ,support 2280 form factor [CPU]1 M-key (PCIe4.0 x4) ,support 2280 form factor [PCH] |
| Onboard Video Chipset |
Aspeed AST2600 |
| LAN Chipset |
Intel X550 |
| LAN Speed |
10Gbps |
| Max LAN Speed |
2 x 10Gbps |
| Back I/O Ports |

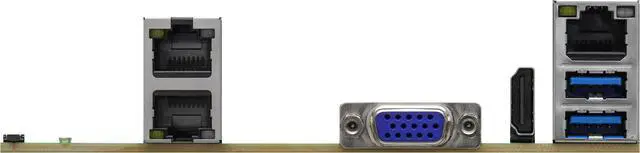

1 x D-Sub ,1 x HDMI ,2 x LAN (RJ45) ,2 x USB 3.2 Gen 1 Type-A |
| Onboard USB |
USB 3.2 (Gen1) Header: 1 (19-pin ,2 USB3.2 Gen1) |
| Other Connectors |
Power Connector: 1 (4-pin ,ATX PSU signal) w ,ATX 24-pin adapter cable ,2 (8-pin ,ATX 12V) support 12V DC-inOther Power Connectors: 1 (4-pin) for HDD power when using 12V DC-in power sourceAuxiliary Panel Header: 1 (9-pin): chassis intrusion ,system fault LED ,LAN1/LAN2 activity LED ,locateSystem Panel: 1 (9-pin): power switch ,reset switch ,system power LED ,HDD activity LEDCOM Header: 1Speaker Header: 1Fan Header: 3 (4-pin)Thermal Sensor Header: 1TPM Header: 1 (13-pin ,SPI)SGPIO Header: 1SMBus header: 1PMBus header: 1IPMB Header: 1Clear CMOS: 1 (2-pin)NMI Header: 1 |
| BIOS Feature |
AMI 256Mb SPI Flash ROMPlug and Play(PnP) ,ACPI 6.4 and above compliance wake up events ,SMBIOS 3.6.0 and above ,ASRock Rack instant flash |
| Form Factor |
Deep mini-ITX |
| Dimensions W x L |
6.7" x 8.2" |
| First Listed on Newegg |
November 09 ,2023 |
