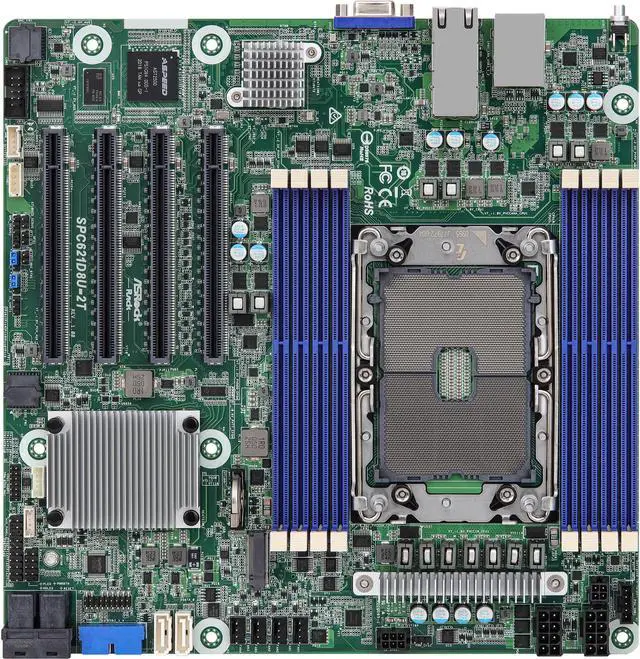

AsRock Rack SPC621D8U-2T Micro ATX Server Motherboard
$796.49
AsRock Rack SPC621D8U-2T Micro ATX Server Motherboard LGA 4189 Intel C621A
| Brand |
AsRock Rack |
|---|---|
| Model |
SPC621D8U-2T |
| CPU Socket Type |
LGA 4189 |
| CPU Type |
Supports 3rd Gen Intel Xeon Scalable processors |
| Number of Processor Support |
1 |
| North Bridge |
Intel C621A |
| Number of DDR4 Slots |
8 DIMM slots (1DPC) |
| DDR4 Standard |
DDR4 3200 |
| PCI Express 4.0 x16 |
SLOT7: PCIe4.0 x16SLOT6: PCIe4.0 x16SLOT5: PCIe4.0 x16SLOT4: PCIe4.0 x16 |
| SATA |
11 x SATA 6.0Gb/s |
| SATA RAID |
0/1/5/10 |
| M.2 |
1 M-key (PCIe3.0 x4 or SATA 6Gb/s) ,supports 2280 form factor |
| Onboard Video Chipset |
Aspeed AST2500 |
| LAN Chipset |
Intel X710-AT2 |
| LAN Speed |
10Gbps |
| Max LAN Speed |
10Gbps |
| Back I/O Ports |

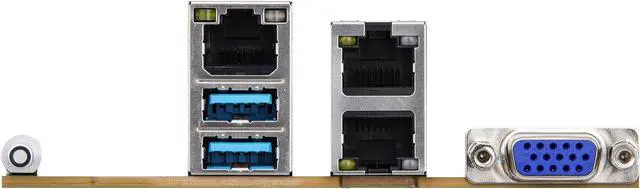

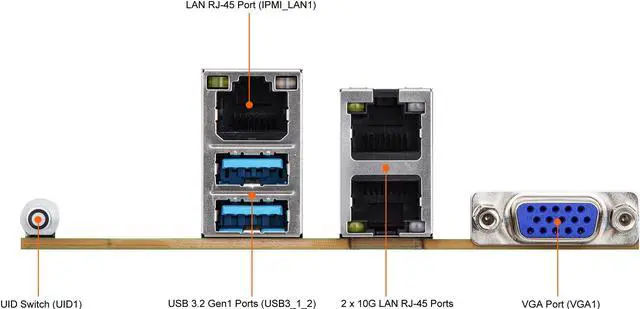

1 DB15 ,2 Type-A (USB3.2 Gen1) ,2 RJ45 (10GbE) |
| Other Connectors |

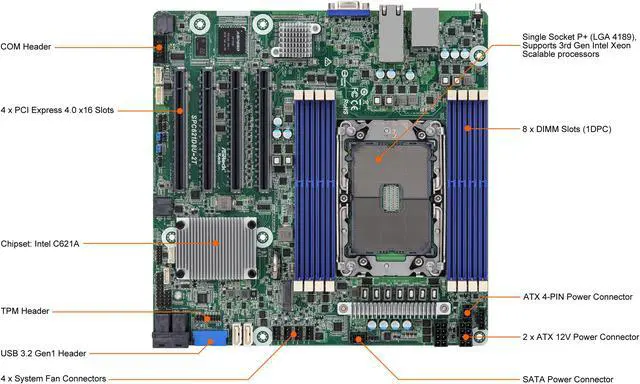

Internal Connector/HeadersOther Power Connectors: 1 (4-pin) for HDD power when using 12V DC-in power sourceAuxiliary Panel Header: 1 (18-pin): chassis intrusion ,system fault LED ,LAN1/LAN2 activity LED ,locate ,SMBusSystem Panel: 1 (9-pin): power switch ,reset switch ,system power LED ,HDD activity LEDCOM Header: 1Fan Header: 4 (4-pin)TPM Header: 1 (17-pin ,LPC) ,1 (13-pin ,SPI)VROC header: 1HSBP: 1SMBus header: 1PMB header: 1IPMB Header: 1Clear CMOS: 1 (contact pads)USB 3.2 (Gen1) Header: 1 (19-pin ,2 USB3.2 Gen1)NMI Header: 1Power Connector: 1 (4-pin ,ATX PSU signal) w ,ATX 24-pin adapter cable ,2 (8-pin ,ATX 12V) support 12V DC-in |
| Form Factor |
Micro ATX |
| Dimensions W x L |

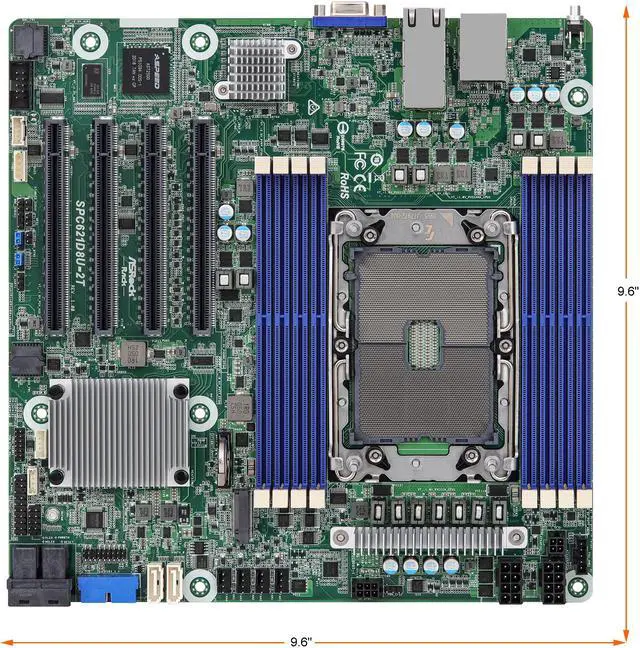

9.6" x 9.6" |
| First Listed on Newegg |
February 23 ,2022 |
