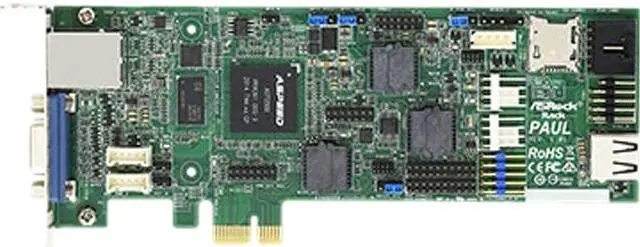

Asrock Rack Server Riser Card/Accessories PAUL Low-profile PCIe IPMI Card
$222.74
Asrock Rack Server Riser Card/Accessories PAUL Low-profile PCIe IPMI Card
| Brand |
ASRock Rack |
|---|---|
| Model |
PAUL |
| Type |
Interface Module |
| Specifications |

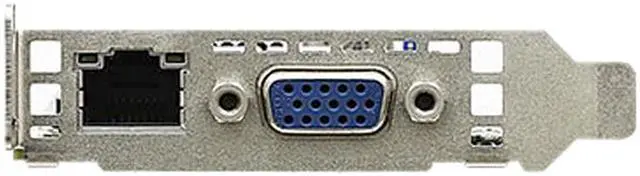

Controller: ASPEED AST2500Feature: Base Board Management Controller (IPMI2.0 with iKVM support)VGA (1920×1200@60Hz 32bpp)Memory: 2 SPI flash ROM 32MB1 DDR4 SDRAM 4GbPhysical StatusForm Factor: Low profile PCIe add-in-cardDimensions: 168.45 x 68.9 mmI/OUpstream interface: PCI Express2.0 x1External: 1 RJ45 via Realtek RTL8211E for dedicated IPMI LAN (10/100/1000 Mbps) ,1 DB-15 (VGA)Internal connectors: 2 SMBus header1 x PMBus header1 x IPMB header1 x BMC reset1 x BMC debug header1 x V BIOS or system BIOS ROM2 x BMC ROM1 x Dual ROM select header1 x TPM (13-pin ,LPC)1 x LPC header (13-pin)2 x Fan header1 x USB2.0 (5-pin): KVM and standby power1 x header (18-pin): GPIO ,NCSI1 x header (18-pin): case open ,system fail ,GPIO ,SMBus ,PECI ,voltage monitoring1 x COM port (9-pin)1 x micro-SD connector1 x USB Type-A (USB 2.0)PowerPower consumption: 7.54WInput: 1 USB2.0 header (5-pin ,5VSB) Goldfinger (+12V)EnvironmentTemperature: Operation temperature: 10°C ~ 35°C ,Non operation temperature: -40°C ~ 70°C |
| First Listed on Newegg |
May 07 ,2021 |
