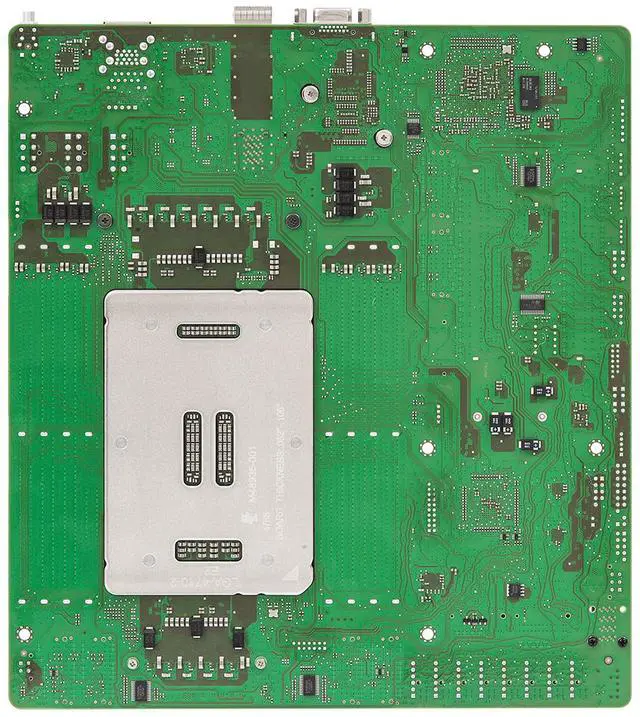

AsRock Rack GNRD8UD-2Q Deep Micro-ATX Server Motherboard
$895.95
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content.css)
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content_responsive.css)
| Micron MTC20F1045S1RC64BD2 | 32GB DDR5 6400 RDIMM |
|---|
| TPM SPI 13 pin SLB9672VU20 | TPM-SPI/INFINEON* |
|---|---|
| TPM SPI 13 pin SLB9670VQ2.0 | TPM-SPI/INFINEON* |
| Micron MTC20F1045S1RC64BD2 |
32GB DDR5 6400 RDIMM |
|---|---|
| TPM SPI 13 pin SLB9672VU20 |
TPM-SPI/INFINEON* |
| TPM SPI 13 pin SLB9670VQ2.0 |
TPM-SPI/INFINEON* |
| Brand |
AsRock Rack |
| Model |
GNRD8UD-2Q |
| CPU Type |
Supports Intel Xeon 6700E-series processors |
| Number of Processor Support |
1 |
| Memory Slots |
8 x DDR5 288-pin |
| Memory Standard |
DDR5 6400 |
| Maximum Memory Supported |
1TB |
| Registered |
Yes |
| PCI Express 5.0 x16 |
SLOT6: PCIe5.0 ,CXL2.0 x16SLOT4: PCIe5.0 ,CXL2.0 x16 |
| Other Slots |
4 MCIO (PCIe5.0 ,CXL2.0 x8) [CPU0]2 MCIO (PCIe5.0 ,CXL2.0 x8) [CPU0]**MCIO5/6 only function with with selected processors |
| M.2 |
2 M-key (PCIe5.0 x4) ,supports 2280 form factor |
| LAN Chipset |
Intel E810-XXVAM2 |
| LAN Speed |
25Gbps |
| Max LAN Speed |
2 x 25Gbps |

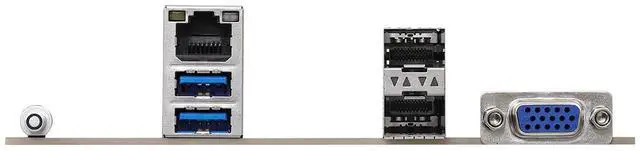

| Back I/O Ports |
1 x D-Sub ,2 x SFP28 ,2 x USB 3.2 Gen 1 Type-A |
| Onboard USB |
USB 3.2 (Gen1) Header: 1 header (19-pin ,2 USB3.2 Gen1)USB 2.0 Header: 1 header (9-pin ,2 USB2.0) |
| Other Connectors |
Power Connector: 1 Micro-Fit (4-pin ,ATX PSU signal) w ,ATX 24-pin adapter cable ,3 (8- pin ,ATX 12V)Other Power Connectors: 1 (6-pin) for HDD powerAuxiliary Panel Header: 1 (18-pin): chassis intrusion ,system fault LED ,LAN1/LAN2 activity LED ,locate ,SMBusSystem Panel: 1 (9-pin): power switch ,reset switch ,system power LED ,HDD activity LEDCOM Header: 1Speaker Header: 1Fan Header: 8 (6-pin)TPM Header: 1 (13-pin ,SPI)VROC header: 1HSBP: 1SMBus header: 2PMBus header: 1IPMB Header: 1Clear CMOS: 1 (contact pads)NMI Header: 1 |
| BIOS Feature |
AMI UEFI BIOS ,512Mb SPI Flash ROMPlug and Play ,ACPI 4.0 and above compliance wake up events ,SMBIOS 3.4 and above ,ASRock Rack instant flash |
| Form Factor |
Deep Micro-ATX |
| Dimensions W x L |
9.6" x 10.5" |
| First Listed on Newegg |
August 07 ,2025 |
