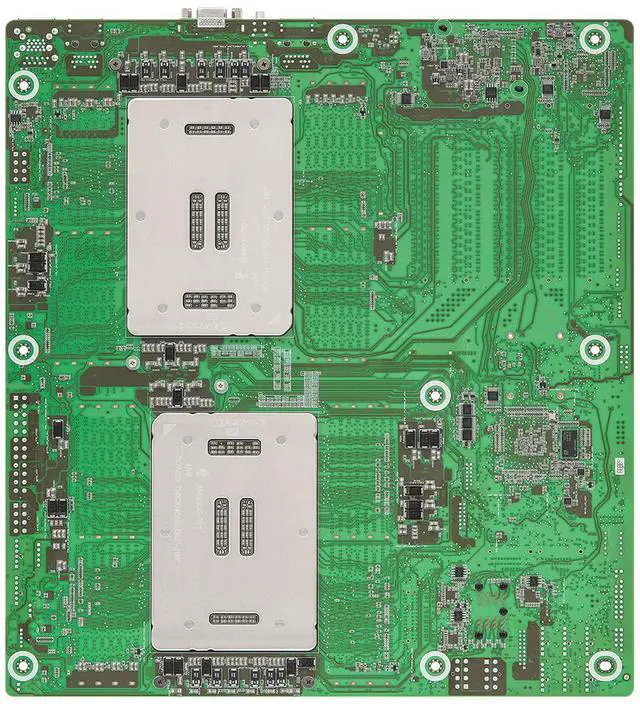

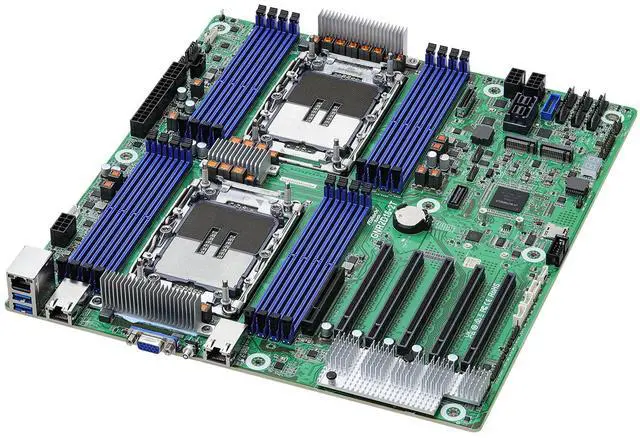

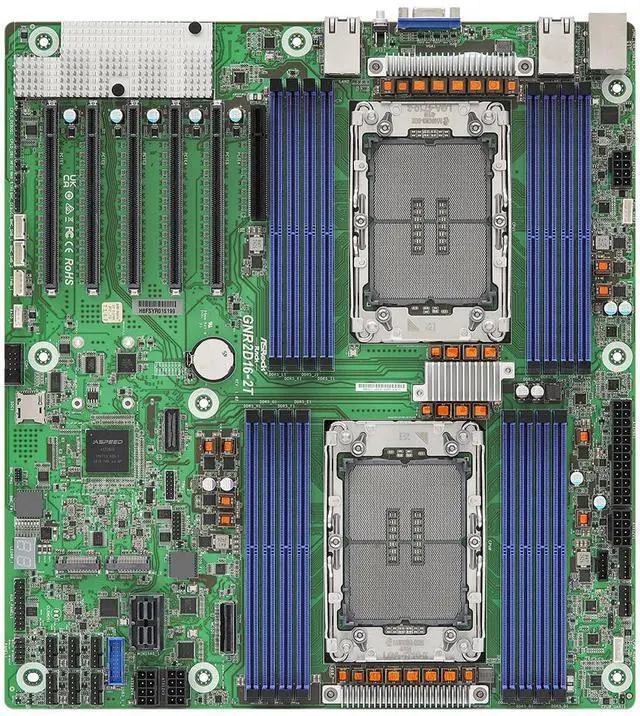

AsRock Rack GNR2D16-2T EEB Server Motherboard
$1,458.32
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content.css)
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content_responsive.css)
| Hynix HMCG94AHBRA480N AA | 64GB DDR5 6400 RDIMM |
|---|---|
| Kingston KSM56R46BD4PMI-96MBI | 96GB DDR5 5600 RDIMM |
| Micron MTC40F2046S1RC64BD2MXCC | 64GB DDR5 6400 RDIMM |
|---|
| SPI 13 pin SLB9672VU20 | TPM-SPI/INFINEON* |
|---|
| SPI 13 pin SLB9670VQ2.0 | TPM-SPI/INFINEON* |
|---|
| Hynix HMCG94AHBRA480N AA |
64GB DDR5 6400 RDIMM |
|---|---|
| Kingston KSM56R46BD4PMI-96MBI |
96GB DDR5 5600 RDIMM |
| Micron MTC40F2046S1RC64BD2MXCC |
64GB DDR5 6400 RDIMM |
| SPI 13 pin SLB9672VU20 |
TPM-SPI/INFINEON* |
| SPI 13 pin SLB9670VQ2.0 |
TPM-SPI/INFINEON* |
| Brand |
AsRock Rack |
| Model |
GNR2D16-2T |
| CPU Type |
Supports Intel Xeon 6700E-series processors |
| Number of Processor Support |
2 |
| Memory Slots |
16 x DDR5 288-pin |
| Memory Standard |
DDR5 6400 |
| Maximum Memory Supported |
2TB |
| Registered |
Yes |
| PCI Express 5.0 x16 |
SLOT1:PCIe5.0 ,CXL2.0 x16 [CPU1]SLOT2:PCIe5.0 ,CXL2.0 x16 [CPU0]SLOT3:PCIe5.0 ,CXL2.0 x16 [CPU1]SLOT4:PCIe5.0 ,CXL2.0 x16 [CPU0]SLOT5:PCIe5.0 ,CXL2.0 x16 [CPU1] |
| PCI Express x8 |
SLOT6:PCIe5.0 ,CXL2.0 x8 [CPU0] |
| Other Slots |
1 MCIO (PCIe5.0 ,CXL2.0 x8) [CPU0] |
| M.2 |
2 M-key (PCIe5.0 x2) ,supports 22110/2280 form factor [CPU0] |
| LAN Chipset |
Intel X710-AT2 |
| LAN Speed |
10Gbps |
| Max LAN Speed |
2 x 10Gbps |

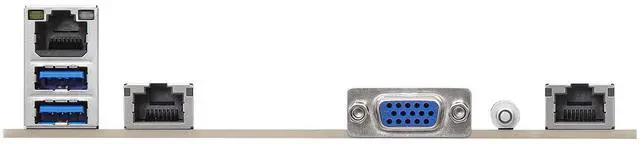

| Back I/O Ports |
1 x D-Sub ,2 x LAN (RJ45) ,2 x USB 3.2 Gen 1 Type-A |
| Onboard USB |
USB 3.2 (Gen1) Header: 1 header (19-pin ,2 USB3.2 Gen1) |
| Other Connectors |
Power Connector: 1 (24-pin ,ATX main power) ,4 ( 8-pin ,ATX 12V)Auxiliary Panel Header: 1 (18-pin): chassis intrusion ,system fault LED ,LAN1/LAN2 activity LED ,locate ,SMBusSystem Panel: 1 (9-pin): power switch ,reset switch ,system power LED ,HDD activity LEDCOM Header: 1 (9-pin)Fan Header: 8 (6-pin)TPM Header: 1 (13-pin ,SPI)HSBP: 2SMBus header: 2PMBus header: 1IPMB Header: 1Clear CMOS: 1 (contact pads)Others: 1 RAID header ,1 Micro SD card slotNMI Header: 1 |
| BIOS Feature |
AMI UEFI BIOS ,512Mb SPI Flash ROMPlug and Play ,ACPI 4.0 and above compliance wake up events ,SMBIOS 3.4 and above ,ASRock Rack instant flash |
| Form Factor |
EEB |
| Dimensions W x L |
12" x 13" |
| First Listed on Newegg |
August 07 ,2025 |
