ASRock Rack EC262D4U2-2L2Q/E810 Xeon E-2400 Micro ATX MB, 2 x 25GbE SFP28, IPMI – Newegg.com
$421.16
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content.css)
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content_responsive.css)
| Xeon E-2488(B0) | Raptor Lake-S 3.2GHz |
|---|---|
| Xeon E-2478(B0) | Raptor Lake-S 2.8GHz |
| Xeon E-2456(B0) | Raptor Lake-S 3.3GHz |
| Xeon E-2434(B0) | Raptor Lake-S 3.4GHz |
| Pentium Gold G7400T(H0) | Alder Lake-S 3.1GHz |
| Xeon E-2486(B0) | Raptor Lake-S 3.5GHz |
|---|---|
| Xeon E-2468(B0) | Raptor Lake-S 2.6GHz |
| Xeon E-2436(B0) | Raptor Lake-S 2.9GHz |
| Xeon E-2414(B0) | Raptor Lake-S 2.6GHz |
| Pentium Gold G7400(H0) | Alder Lake-S 3.7GHz |
| Hynix HMCG88AEBEA084N | 32GB DR5 4800 ECC |
|---|---|
| Micron MTC20C2085S1EC48BA1 | 32GB DDR5 4800 ECC |
| ATP A5D16RA8BVQKMO | 16GB DDR5 4800 non-ECC |
| Kingston KSM48E40BD8KM-32HM | 32GB DDR5 4800 ECC |
|---|---|
| Samsung M324R4GA3BB0-CQK0L | 32GB DDR5 4800 ECC |
| Innodisk M5CV-AGS2LC0P-BJ02 | 16GB DDR5 4800 ECC |
| TPM SPI 13 pin SLB9672VU20 | TPM-SPI/INFINEON* |
|---|---|
| TPM SPI 13 pin SLB9670VQ2.0 | TPM-SPI/INFINEON* |
| Xeon E-2488B0 |
Raptor Lake-S 3.2GHz |
|---|---|
| Xeon E-2478B0 |
Raptor Lake-S 2.8GHz |
| Xeon E-2456B0 |
Raptor Lake-S 3.3GHz |
| Xeon E-2434B0 |
Raptor Lake-S 3.4GHz |
| Pentium Gold G7400TH0 |
Alder Lake-S 3.1GHz |
| Xeon E-2486B0 |
Raptor Lake-S 3.5GHz |
| Xeon E-2468B0 |
Raptor Lake-S 2.6GHz |
| Xeon E-2436B0 |
Raptor Lake-S 2.9GHz |
| Xeon E-2414B0 |
Raptor Lake-S 2.6GHz |
| Pentium Gold G7400H0 |
Alder Lake-S 3.7GHz |
| Hynix HMCG88AEBEA084N |
32GB DR5 4800 ECC |
| Micron MTC20C2085S1EC48BA1 |
32GB DDR5 4800 ECC |
| ATP A5D16RA8BVQKMO |
16GB DDR5 4800 non-ECC |
| Kingston KSM48E40BD8KM-32HM |
32GB DDR5 4800 ECC |
| Samsung M324R4GA3BB0-CQK0L |
32GB DDR5 4800 ECC |
| Innodisk M5CV-AGS2LC0P-BJ02 |
16GB DDR5 4800 ECC |
| TPM SPI 13 pin SLB9672VU20 |
TPM-SPI/INFINEON* |
| TPM SPI 13 pin SLB9670VQ2.0 |
TPM-SPI/INFINEON* |
| Best Seller Ranking |
#96 in Server Motherboards |
| Brand |
AsRock Rack |
| Model |
EC262D4U2-2L2Q/E810 |
| CPU Socket Type |
LGA 1700 |
| CPU Type |
Supports Intel Xeon E-2400 series and Intel Pentium Gold G7400/G7400T processors |
| Number of Processor Support |
1 |
| CPU Features |
Thermal Design Power 95W |
| North Bridge |
Intel C262 |
| Memory Slots |
4 x DDR5 288-pin |
| Memory Standard |
DDR5 4400 |
| Maximum Memory Supported |
128GB |
| ECC Supported |
Yes |
| PCI Express 5.0 x16 |
SLOT6: PCIe5.0 x16 [CPU] |
| PCI Express x4 |
SLOT4: PCIe4.0 x4 [PCH] |
| Other Slots |
1 SlimSAS (PCIe4.0 x4) [CPU]1 SlimSAS (4 SATA 6Gb/s) [PCH] |
| SATA |
5 x SATA 6.0Gb/s |
| M.2 |
1 M-key (PCIe4.0 x4 or SATA 6Gb/s) ,support 2280/2260/2242/2230 form factor [PCH] |
| Onboard Video Chipset |
Aspeed AST2600 |
| LAN Chipset |
Intel E810-XXVAM2 |
| LAN Speed |
25Gbps |
| Second LAN Chipset |
Intel I210 |
| Second LAN Speed |
10/100/1000Mbps |
| Max LAN Speed |
2 x 25Gbps + 2 x 1Gbps |
| Back I/O Ports |

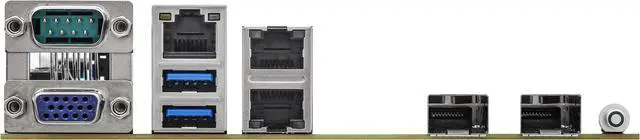

1 x COM (Serial Port) ,1 x D-Sub ,2 x LAN (RJ45) ,2 x SFP28 ,2 x USB 3.2 Gen 1 Type-A |
| Onboard USB |
USB 3.2 (Gen1) Header: 1 header (19-pin ,2 USB3.2 Gen1)USB 2.0 Header: 1 header (9-pin ,2 USB2.0)Type A USB 2.0 Port: 1 vertical Type-A (USB2.0) |
| Other Connectors |
Power Connector: 1 (24-pin ,ATX main power) ,2 (8-pin ,ATX 12V)Auxiliary Panel Header: 1 (18-pin): chassis intrusion ,system fault LED ,LAN1/LAN2 activity LED ,locate ,SMBusSystem Panel: 1 (9-pin): power switch ,reset switch ,system power LED ,HDD activity LEDSpeaker Header: 1 (4-pin)Buzzer: 1Fan Header: 7 (4-pin)Thermal Sensor Header: 1TPM Header: 1 (13-pin ,SPI)SGPIO Header: 1SMBus header: 1PMBus header: 1IPMB Header: 1Clear CMOS: 1 (contact pads)Front Lan LED Connector: 1NMI Header: 1 |
| BIOS Feature |
AMI 256Mb SPI Flash ROMPlug and Play ,ACPI 6.4 and above compliance wake up events ,SMBIOS 2.8 and above ,ASRock Rack Instant Flash |
| Form Factor |
Micro ATX |
| Dimensions W x L |
9.6" x 9.6" |
| First Listed on Newegg |
October 31 ,2024 |
