ASRock Rack D1749NTD4U-4Q Micro-ATX SoC Server Motherboard Intel® Xeon® D-1749NT processor PCIe4.0 4 SFP28 (Up to 25GbE)
$2,555.05
ASRock Rack D1749NTD4U-4Q Micro-ATX SoC Server Motherboard Intel® Xeon® D-1749NT processor PCIe4.0 4 SFP28 (Up to 25GbE)
| Brand |
AsRock Rack |
|---|---|
| Model |
D1749NTD4U-4Q |
| CPU Type |
Intel Xeon D-1749NT |
| Number of Processor Support |
1 |
| CPU Features |
Thermal Design Power Up to 90W |
| Number of DDR4 Slots |
4 x 288-pin |
| DDR4 Standard |
RDIMM: up to 2667 MHzECC/non-ECC UDIMM: up to 2667 MHz |
| Maximum Memory Supported |
Max. DIMM Frequency- RDIMM: up to 2667 MHz- ECC/non-ECC UDIMM: up to 2667 MHz |
| ECC Supported |
Yes |
| Registered |
Yes |
| PCI Express 4.0 x16 |
SLOT7*: PCIe4.0 x16 [CPU]*SLOT7 shares lanes with 2 SlimSAS.-Slimline1 and Slimline2 will disable when SLOT7 (PCIe4.0 x16) is populated-Slimline1 will disable when SLOT7 (PCIe4.0 x8) is populated. |
| PCI Express x8 |
SLOT6*: PCIe3.0 x8 [CPU]*SLOT6 shares lanes with 2 Mini-SAS HD by BIOS setting |
| Other Slots |
2 SlimSAS* (PCIe4.0 x8) [CPU]*SLOT7 shares lanes with 2 SlimSAS.-Slimline1 and Slimline2 will disable when SLOT7 (PCIe4.0 x16) is populated-Slimline1 will disable when SLOT7 (PCIe4.0 x8) is populated |
| SAS |
3 Mini-SAS HD* ,4 SATA 7-pin or 1 M2_2 ,1 M2_1*2 Mini-SAS HD shares lanes with SLOT6 by BIOS setting |
| M.2 |
M2_1 (PCIe3.0 x4 or SATA 6Gb/s) ,support 22110/2280 form factor [CPU]M2_2* (PCIe3.0 x4 or SATA 6Gb/s) ,support 22110/2280 form factor [CPU]*M2_2 shares lanes with 4 SATA 7-pin ,4 SATA 7-pin will disable when M2_2 is populated |
| Number of LAN |
4 SFP28 (25GbE) |
| LAN Speed |
25Gbps |
| Max LAN Speed |
4 x 25Gbps |

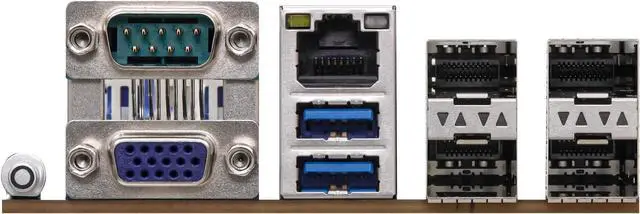

| Back I/O Ports |
UID Button/LED: 1 UID button w ,LEDVGA Port: 1 DB15 (VGA)Serial Port: 1 DB9 (COM)USB 3.2 Port: 2 Type-A (USB3.2 Gen1)RJ45: 1 dedicated IPMIOther network connector: 4 SFP28 (25GbE) |
| Onboard USB |
USB 3.2 (Gen1) Header: 1 header (19-pin ,2 USB3.2 Gen1) |
| Other Connectors |
Power Connector: 1 Micro-Fit (4-pin ,ATX PSU signal) w ,ATX 24-pin adapter cable ,2 ( 8-pin ,ATX 12V) support 12V DC-inOther Power Connectors: 1 (6-pin ,SATA power)Auxiliary Panel Header: 1 (18-pin): chassis intrusion ,LAN1/LAN2 activity LED ,locate ,SMBusSystem Panel: 1 (9-pin): power switch ,reset switch ,system power LED ,HDD activity LEDVGA header: 1 (15-pin)Fan Header: 1 (4-pin ,CPU fan) ,5 (6-pin ,SYS fans)TPM Header: 1 (17-pin ,LPC) ,1 (13-pin ,SPI)VROC header: 1SGPIO Header: 1HSBP: 1SMBus header: 1PMBus header: 1IPMB Header: 1Clear CMOS: 1NMI Header: 1 |
| Form Factor |
Micro ATX |
| Dimensions W x L |
9.6" x 9.6" |
| First Listed on Newegg |
November 21 ,2023 |
