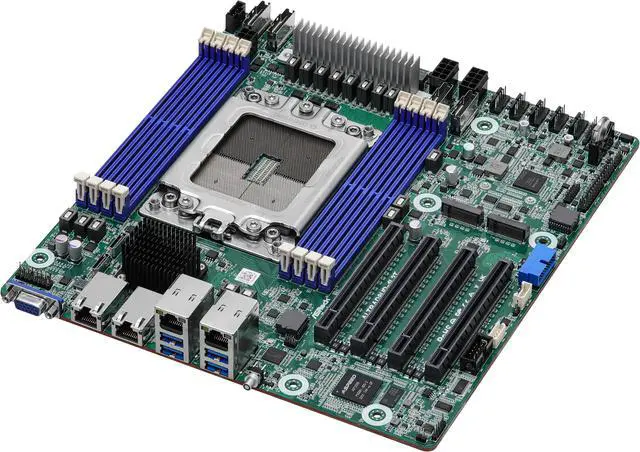

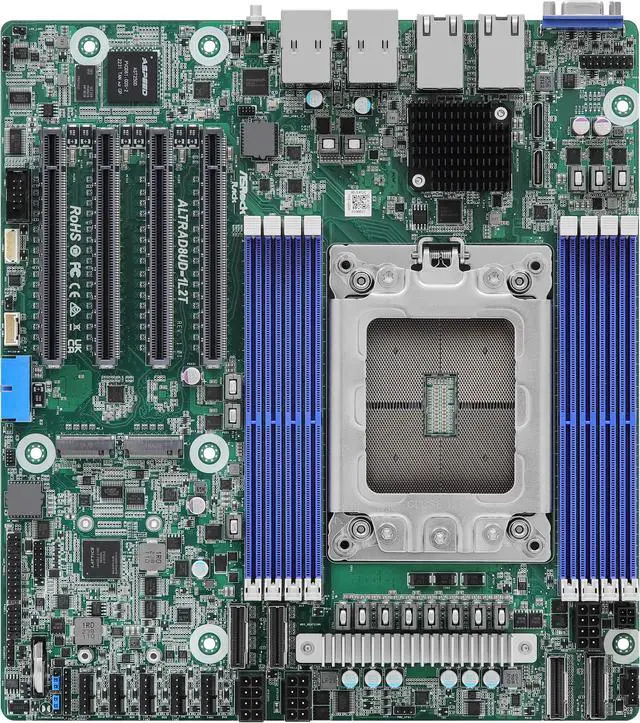

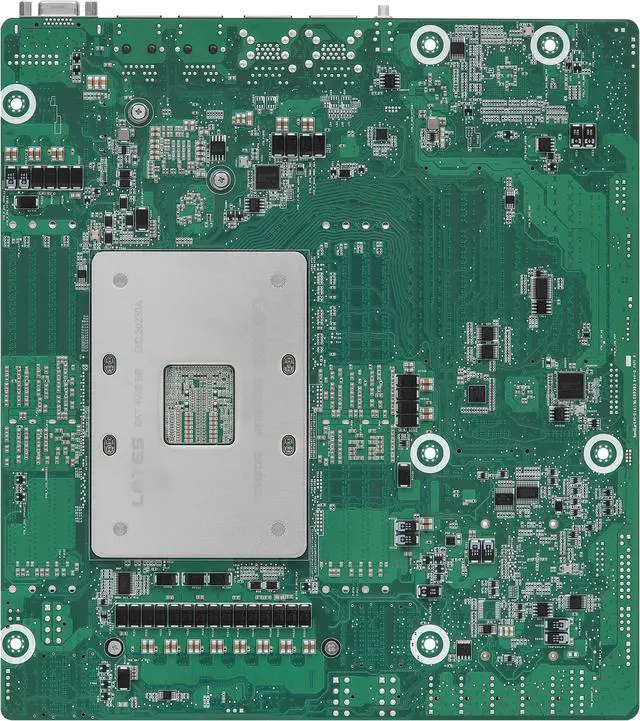

ASRock Rack ALTRAD8UD-1L2T Deep Micro-ATX Server Motherboard Single Socket (LGA 4926) Ampere Altra Max/Ampere Altra processors Dual 10G & 1G
$1,079.67
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content.css)
@import url(//c1.neweggimages.com/WebResource/Themes/WWW/CSS/seller/a_plus_content_responsive.css)
| Ampere ALTRA | Q80-28 (2.8GHz) |
|---|---|
| Ampere ALTRA MAX | M128-26 (2.6GHz) |
| Ampere ALTRA MAX | M96-30 (3.0GHz) |
| Ampere ALTRA MAX | M128-30 (3.0GHz) |
| Ampere ALTRA | Q32-17 (1.7GHz) |
| Ampere ALTRA | Q72-30 (3.0GHz) |
| Ampere ALTRA | Q64-30 (3.0GHz) |
| Ampere ALTRA | Q64-22 (2.2GHz) |
| Ampere ALTRA MAX | M128-28 (2.8GHz) |
|---|---|
| Ampere ALTRA MAX | M112-30 (3.0GHz) |
| Ampere ALTRA MAX | M96-28 (2.8GHz) |
| Ampere ALTRA | Q80-30 (3.0GHz) |
| Ampere ALTRA | Q80-26 (2.6GHz) |
| Ampere ALTRA | Q64-33 (3.3GHz) |
| Ampere ALTRA | Q64-26 (2.6GHz) |
| Ampere ALTRA | Q80-33 (3.3GHz) |
| Micron MTA36ASF8G72PZ-3G2B2VI | 64GB DDR4 3200 RDIMM |
|---|---|
| Crucial CT32G4RFD432A-3G2E2 | 32GB DDR4 3200 RDIMM |
| Crucial CT16G4RFD832A-3G2E1 | 16GB DDR4 3200 RDIMM |
| SMART ST1637RD440465-SM | 128GB DDR4 3200 RDIMM |
| Samsung M393A8G40AB2-CWEGY | 64GB DDR4 3200 RDIMM |
|---|---|
| Micron MTA18ASF4G72PDZ-3G2E1UI | 32GB DDR4 3200 RDIMM |
| Micron MTA18ASF2G72PDZ-3G2J3UI | 16GB DDR4 3200 RDIMM |
| NCCI | A012035401B (Passive H/S) |
|---|---|
| COOLSERVER | A82 |
| noctua | NH-D9 AMP-4926 4U |
| Dynatron | W1 |
| COOLSERVER | A81 (Passive H/S) |
|---|---|
| COOLSERVER | A83 |
| noctua | NH-U14S AMP-4926 |
| Ampere ALTRA MAX |
M96-28 (2.8GHz) |
|---|---|
| Ampere ALTRA |
Q80-33 (3.3GHz) |
| Micron MTA36ASF8G72PZ-3G2B2VI |
64GB DDR4 3200 RDIMM |
| Crucial CT32G4RFD432A-3G2E2 |
32GB DDR4 3200 RDIMM |
| Crucial CT16G4RFD832A-3G2E1 |
16GB DDR4 3200 RDIMM |
| SMART ST1637RD440465-SM |
128GB DDR4 3200 RDIMM |
| Samsung M393A8G40AB2-CWEGY |
64GB DDR4 3200 RDIMM |
| Micron MTA18ASF4G72PDZ-3G2E1UI |
32GB DDR4 3200 RDIMM |
| Micron MTA18ASF2G72PDZ-3G2J3UI |
16GB DDR4 3200 RDIMM |
| NCCI |
A012035401B (Passive H/S) |
| Dynatron |
W1 |
| COOLSERVER |
A83 |
| Noctua |
NH-U14S AMP-4926 |
| Best Seller Ranking |
#68 in Server Motherboards |
| Brand |
AsRock Rack |
| Model |
ALTRAD8UD-1L2T |
| CPU Socket Type |
LGA 4926 |
| CPU Type |
Ampere Altra ,Ampere Altra Max |
| Number of Processor Support |
1 |
| Number of DDR4 Slots |
8 x 288-pin |
| DDR4 Standard |
DDR4 3200 |
| Maximum Memory Supported |
2TB |
| Registered |
Yes |
| PCI Express 4.0 x16 |
SLOT7: PCIe4.0 x16*SLOT6: PCIe4.0 x16*SLOT5: PCIe4.0 x16SLOT4: PCIe4.0 x16***Supports PCIe4.0 x8 when using Ampere Altra processors**SLOT4 do not support full-length card |
| Other Slots |
4 SlimSAS (PCIe4.0 x8)2 OCuLink (PCIe4.0 x4) |
| M.2 |
2 M-key (PCIe4.0 x4) ,support 2280/2230 form factor |
| Onboard Video Chipset |
Aspeed AST2500 |
| LAN Chipset |
Intel X550 |
| LAN Speed |
10Gbps |
| Second LAN Chipset |
Intel I210 |
| Second LAN Speed |
10/100/1000Mbps |
| Max LAN Speed |
2 x 10Gbps + 1Gbps |

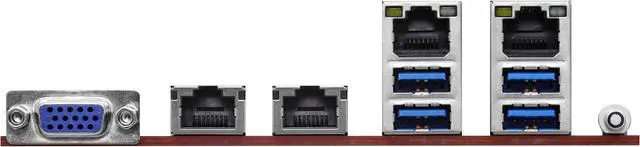

| Back I/O Ports |
1 x D-Sub ,3 x LAN (RJ45) ,4 x USB 3.2 Gen 1 Type-A |
| Onboard USB |
USB 3.2 (Gen1) Header: 1 (19-pin ,2 USB3.2 Gen1) |
| Other Connectors |
Power Connector: 1 (4-pin ,ATX PSU signal) w ,ATX 24-pin adapter cable ,3 (8-pin ,ATX 12V) support 12V DC-inAuxiliary Panel Header: 1 (18-pin): chassis intrusion ,system fault LED ,LAN1/LAN2 activity LED ,locate ,SMBusSystem Panel: 1 (9-pin): power switch ,reset switch ,system power LED ,HDD activity LEDCOM Header: 1VGA header: 1Speaker Header: 1 (4-pin)Fan Header: 5 (6-pin)Thermal Sensor Header: 1TPM Header: 1 (13-pin ,SPI)SMBus header: 1PMBus header: 1IPMB Header: 1Clear CMOS: 1 (contact pads)Front Lan LED Connector: 1 (LAN3 LED) |
| BIOS Feature |
AMI UEFI BIOS ,256 Mb (32MB) SPI Flash ROMASRock Rack Instant Flash ,ACPI 6.2 ,SMBIOS 3.4.0 and above ,Plug and Play(PnP) |
| Form Factor |
Deep Micro-ATX |
| Dimensions W x L |
9.6" x 10.5" |
| First Listed on Newegg |
December 21 ,2023 |
