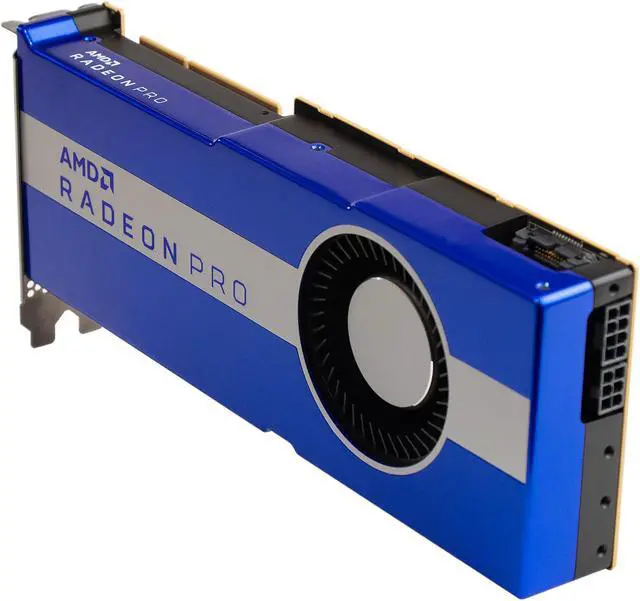

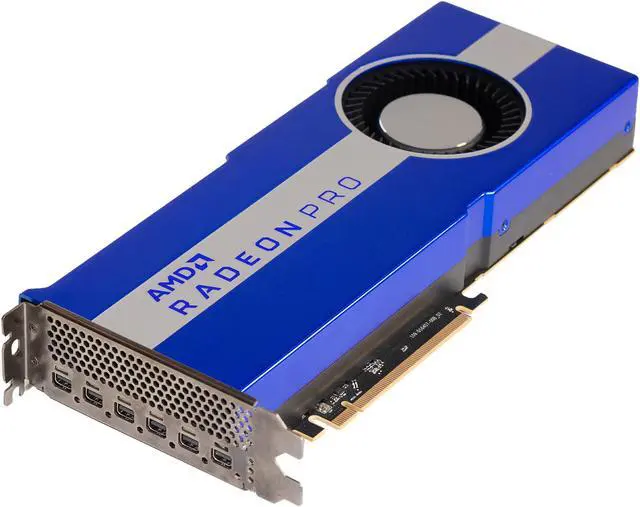

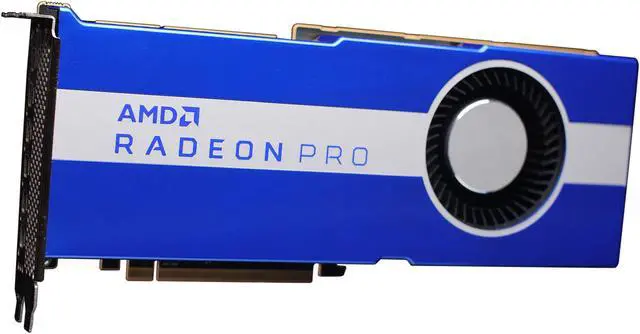

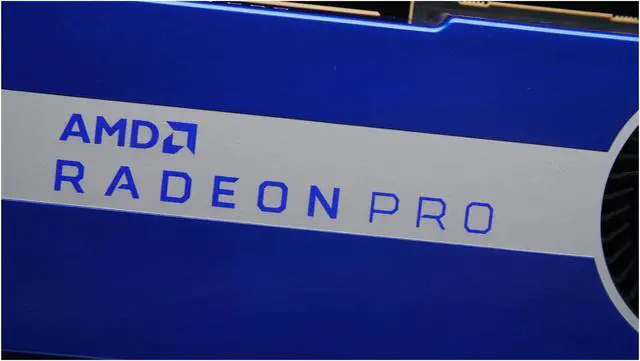

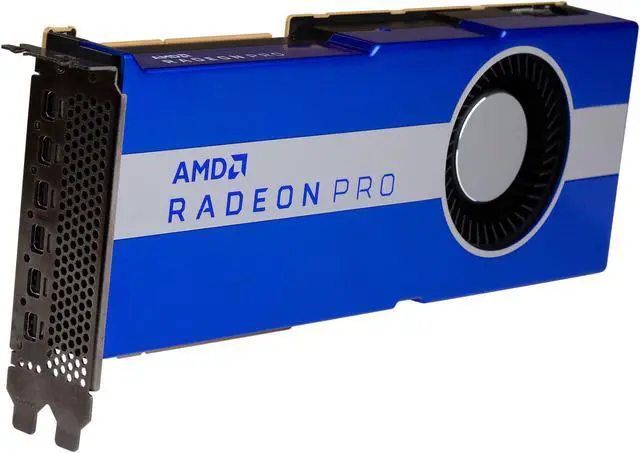

AMD Radeon Pro VII 100-506163 16GB PCIe 4.0 x16 Dual Slot Add-in Card Workstation Video Card
$1,746.22
AMD Radeon Pro VII 100-506163 16GB 4096-bit HBM2 PCI Express 4.0 x16 PCIe Add-in Card Graphics Card
| Brand |
AMD |
|---|---|
| Model |
100-506163 |
| Interface |
PCI Express 4.0 x16 |
| Chipset Manufacturer |
AMD |
| GPU |
Radeon Pro VII |
| Stream Processors |
3840 |
| Floating Point Formats |
Up to 13.1 TFLOPs (FP32) |
| Memory Size |
16GB |
| Memory Interface |
4096-bit |
| Memory Type |
HBM2 |
| DirectX |
DirectX 12 |
| OpenGL |
OpenGL 4.6 |
| DisplayPort |

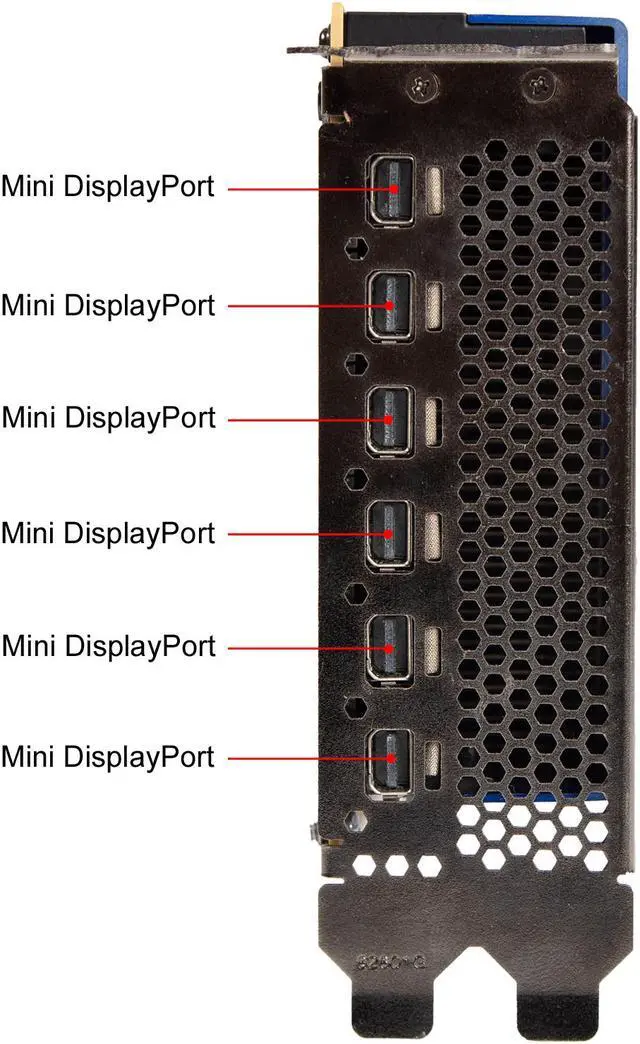

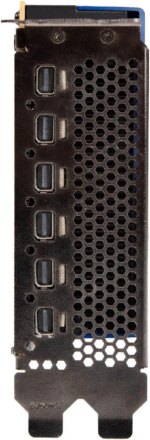

6 x Mini-DisplayPort 1.4 |
| Digital Resolution |
6 @ 3840×2160 (4K)3 @ 5120×2880 (5k)1 @ 7680×4320 (8K) |
| Cooler |
Single |
| Virtual Reality Ready |
Yes |
| Operating Systems Supported |
Microsoft Windows 10 ,Linux |
| System Requirements |
Max Power Consumption: 250W |

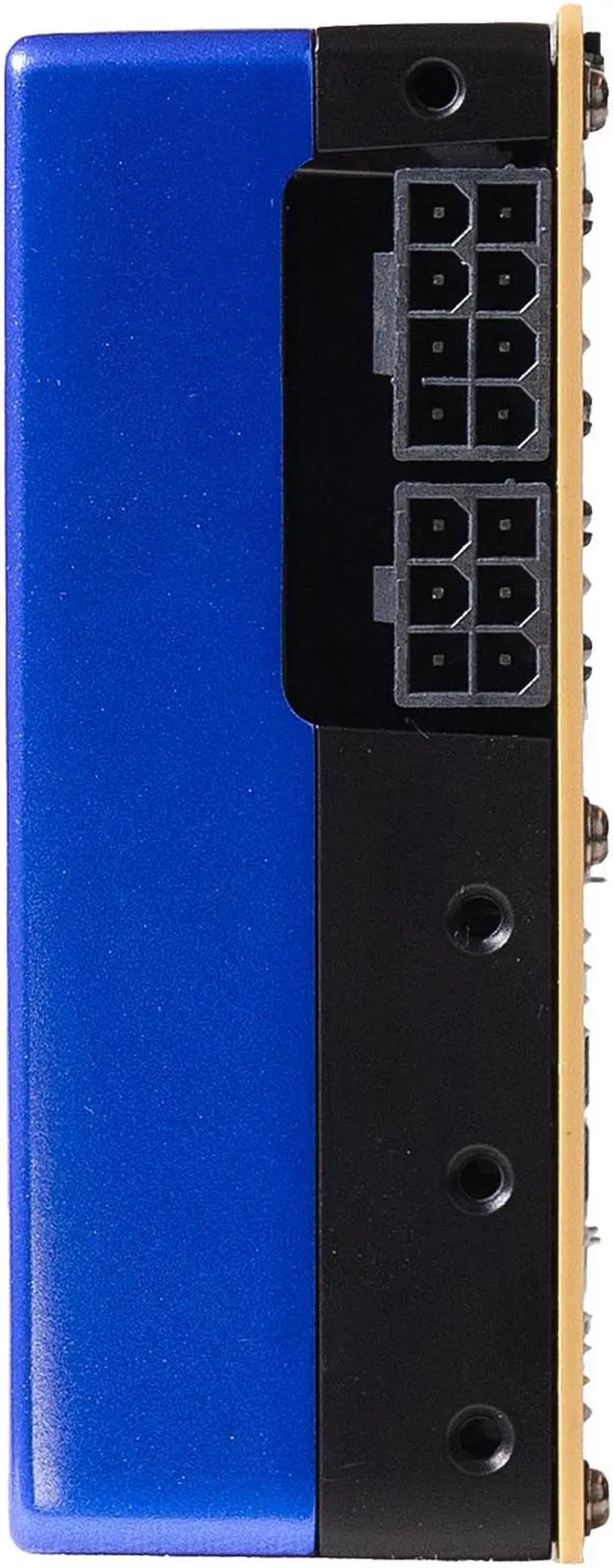

| Auxiliary Power Connector |
6-pin & 8-pin |
| Form Factor |
PCIe Add-in Card |
| Dimensions L x H |
10.50" x 4.40" |
| Slot Width |
Double Slot |
| First Listed on Newegg |
November 12 ,2021 |
1 review for AMD Radeon Pro VII 100-506163 16GB PCIe 4.0 x16 Dual Slot Add-in Card Workstation Video Card
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
JOHN C. –
Pros: 16gb is an excellent start point with the PCIe-4 16 bus slot on the motherboard, which Nvidia is definitely late to the party with the A4000 or A5000. Cons: This GPU went with extreme difficulty into a Thor Full Height Tower with the ASUS AMD Pro WS-ACE motherboard. The motherboard had all my desired features but the inability to acquire a Ryzen 9 5950X due to Crypto Mining forced a temporary small processor without onboard video support.The PCIe 4 slot fought stubbornly not to accept the AMD Radeon Pro VII GPU being installed. AMD tech support was AWOL. No fault was found with the AMD Pro VII. It was likely the tight design of the ASUS motherboard, the NVME SSD slot and the Thor structure. Overall Review: I asked Best Buy to remove an older Nvidia Quadro software package and install the latest AMD drivers. Took two separate trips to get that done. In one week AMD released three updates so something was amiss with software releases.Once I cleared all the potholes the card seems to be an excellent choice even if I had to pay a premium due to Crypto Mining thieves.
