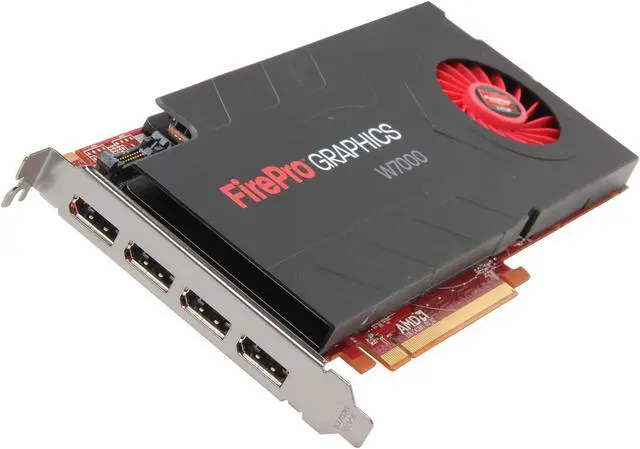

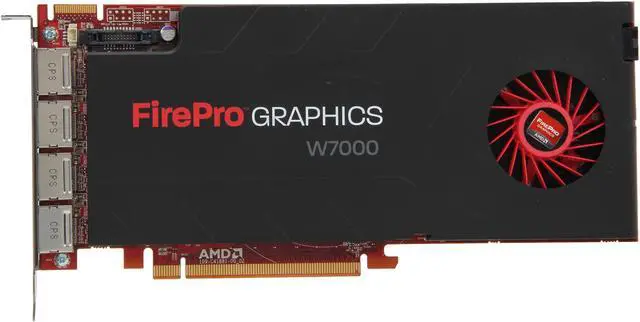

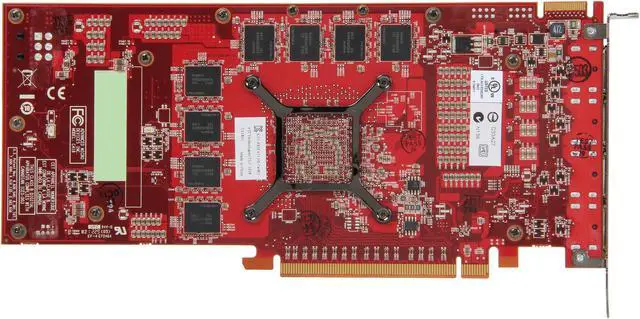

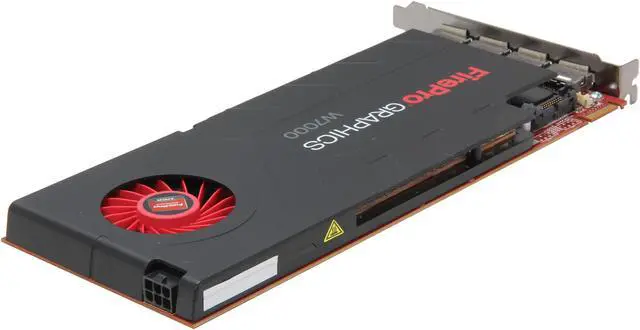

AMD FirePro W7000 100-505634(100-505848) 4GB 256-bit GDDR5 PCI Express 3.0 x16 CrossFire Supported Graphics Card
$247.80
- Drive up to four displays with AMD Eyefinity technology, and up to six utilizing DisplayPort 1.2 multistreaming technology, enabling users to multitask across multiple applications with ease
- It’s more than five times faster than competing solutions in a single precision compute performance – due in part to AMD’s all-new Graphics Core Next (GCN) architecture
- One of the industry’s first and only high-end workstation graphics cards to support DisplayPort 1.2, enabling display resolutions well beyond what competing solutions offer
- Optimizations and certifications for many major CAD/CAE and media & entertainment applications
- Intelligent power saving and monitoring technologies for higher performance
AMD FirePro W7000 also offers 2GB of GDDR5 memory and 153.6GBps of memory bandwidth (1.7 times more memory bandwidth than Nvidia Quadro 4000), bringing the unmatched application responsiveness that professionals working with advanced visualization, complex models, large data sets and video footage need.
- Size/Type: 4GB GDDR5
- Interface: 256-bit
- Bandwidth: 154GB
- 2.4 TFLOPs single precision and 152 GFLOPs double precision floating point performance

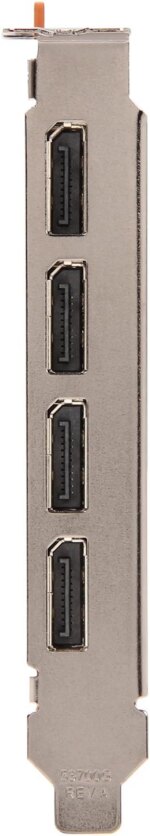

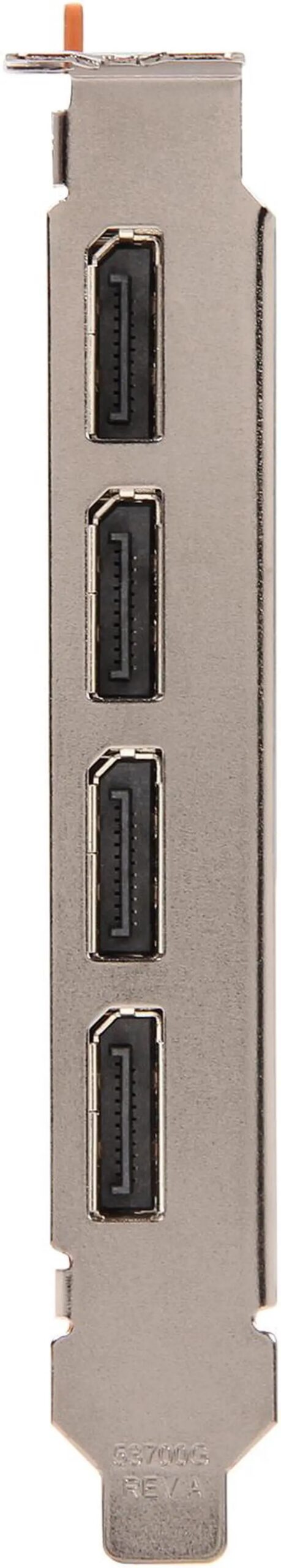

- DisplayPort: Four standard
- Max DisplayPort 1.2 Resolution: 4096 x 2160
- Max DisplayPort 1.1 Resolution: 2560 x 1600
- DirectX® 11.1
- OpenGL 4.2
- OpenCL™ 1.2
- Shader Model: 5.0
- AMD Eyefinity Technology Support: Yes
- AMD CrossFire™ Pro Support: Yes
- AMD HD3D Pro Support: Yes (via stereoscopic 3-pin mini DIN)
- OS Support: Microsoft® Windows® 8, Windows® 7, Windows® XP, Windows Vista® and Linux® (32- or 64-bit)
- Max Power: <150W
- Slots: One
- Form Factor: Full height / Full length
- Bus Interface: PCIe® x16, 3.0 for optimal performance
- Cooling: Active fan
- Available PCI® Express x16 (dual slot), 3.0 for optimal performance
- A power supply and two PCIe® AUX power connector (6-pin)
- 2GB system memory
- Microsoft® Windows® 8, Windows® 7, Windows® XP, Windows Vista® and Linux® (32- or 64-bit)
- Internet connection for driver installation
- AMD FirePro™ W7000 workstation graphics card
- Quick Start Reference Guide
- AMD CrossFire® Pro connector
- Two DisplayPort to single-link -DVI (active) adapters
- Three year limited product repair / replacement warranty
- Direct toll free phone and email access to dedicated workstation technical support team
- Advanced parts replacement option
| Brand |
AMD |
|---|---|
| Model |
100-505634(100-505848) |
| Interface |
PCI Express 3.0 x16 |
| Chipset Manufacturer |
AMD |
| GPU |
FirePro W7000 |
| Stream Processors |
1280 |
| Memory Size |
4GB |
| Memory Interface |
256-bit |
| Memory Type |
GDDR5 |
| DirectX |
DirectX 11 |
| OpenGL |
OpenGL 4.2 |
| DisplayPort |
4 |
| Digital Resolution |
Max DisplayPort 1.2 Resolution: 4096 x 2160 |
| CrossFire Supported |
Yes |
| Cooler |
With Fan |
| Operating Systems Supported |
Microsoft Windows 8 ,Windows 7 ,Windows XP ,Windows Vista and Linux (32 or 64-bit) |
| System Requirements |
Available PCI Express x16 (single slot) ,3.0 for optimal performanceA power supply and one AUX power connector (6-pin)2GB system memoryInternet connection for driver installation |
| Auxiliary Power Connector |
6 Pin |
| Features |
AMD Eyefinity TechnologyIndustry-leading multidisplay technology enabling highly immersive and unrivaled multitasking experience across up to four displays ,powered by a single AMD FirePro W7000 graphics card.GeometryBoostAllows the GPU to process geometry data at a rate of twice per clock cycle resulting is a doubling in the rate of primitive and vertex processing. Triangle rates increase two-fold relative to a GPU that does not possess GeometryBoost.DisplayPort 1.2Simultaneously output multiple ,independent audio streams and display content at resolutions beyond standard HD (maximum resolution of 4096×2160).Energy Efficient DesignAMD PowerTune technology dynamically optimizes GPU power usage and AMD ZeroCore Power technology significantly reduces power consumption at idle.Framelock/GenlockEnsures accurate and consistent video synchronization to external sources or multiple GPUs in different systems.Video Codec Engine (VCE)A multistream hardware H.264 HD encoder ,for power efficient and quick video encoding. |
| Package Contents |

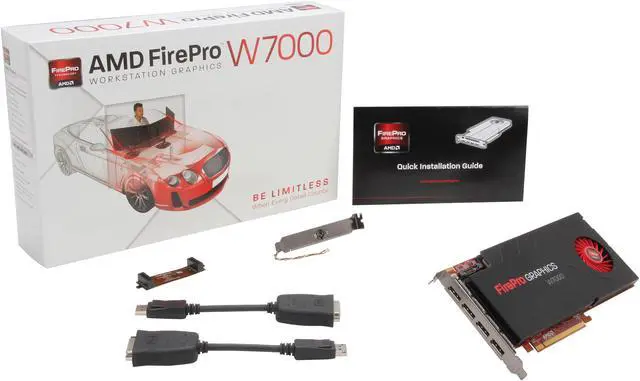

AMD FirePro W7000 workstation graphics cardQuick Start Reference GuideAMD CrossFire Pro connectorTwo DisplayPort to single-link -DVI (active) adapters |
| First Listed on Newegg |
October 05 ,2021 |
13 reviews for AMD FirePro W7000 100-505634(100-505848) 4GB 256-bit GDDR5 PCI Express 3.0 x16 CrossFire Supported Graphics Card
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Neil B. –
Pros: For the money, this is a good 4gb card. Was to be used for surfcam. Cons: Screen flashes, artifacts everywhere, crashes, BSOD. Called AMD, they said it was the hardware not the drivers. Newegg RMA’d with free shipping. Overall Review: Dissapointed that the process for the new card will take over two weeks. Time is money, and this is causing a slow in production.
Alex L. –
Pros: Delivers outstanding performance in Solidworks 2013, 2011, Rapidform XOR and Autocad 2013. In Solidworks I can now load fairly large assemblies with lots of details (such as honeycombs for turbine blades) without any issue.
Brought back sanity after torture of using gaming card for CAD work (in my home office).
Definitely miles better than Quadro 4000 (which I use at work). Good job AMD, I am happy I took the chance and bought this card after years with Nvidia. Cons: None really, its fairly large and is a bit pricey, but both are understood considering card’s capabilities and purpose. Overall Review: My overall system:
Phenom X6 1045T – CPU
Asus M5A97 LE R2.0 – motherboard
Corsair DDR3 1600 32gb – RAM
AMD W7000 – Video card
1gb harddrive
LG Blueray Burner
Adam E. –
Pros: Fast, powerful, efficient. Like a sports car that gets 40 mpg. It laughs in the face of armies of polygons. I think it’s probably the best deal out there for the workstation demographic.
Plugged it in, it worked, before the drivers were even installed! Cons: Some would say price, but for all the extra development that goes into their drivers/validation/support, it’s still a good deal. We don’t need no stinking artifacts. Overall Review: If your computer needs to make you more money than you spend on it, this is an excellent choice.
If you are like to play games you should … well, maybe consider this card also. It holds its own pretty well with games, although not specifically oriented to games.
Shane S. –
Pros: *very quiet
*runs incredibly cool
*takes everything i throw at it even games on ultra (since this is a workstation card)
*cheaper than the w8000 and performs about the same.
*4 monitors! Cons: price. is still rather expensive.
amd drivers still aren’t as great as nvidia Overall Review: So, first off. Im upgrading from an msi gtx 560 ti 2gb.
i use my pc for gaming and 3d software like zbrush and 3ds max.
i can now get easily 30 million polys in zbrush without even a hint of lag or lost frame rate. same with 3ds max.
gaming is just as fluid as what you get on a gtx 680 or a 7970
works well with unreal development kit and cryengine as well. no visible changes in performance from this card as opposed to a gaming card
pc specs
Processor: intel i7 2600k at 3.4 ghz w/ cm 212 evo
motherboard: asus p8z68 vpro-gen3
hd: intel 520 ssd 120gb x 2
ram: gskill ripjaws x 4x4gb at 1800
running 3 monitors
Oren N. –
Pros: Low power card; specs look good on paper. Cons: Could not get latest stable drivers (as of 1/12/14) to work with the Dell UP2414Q UHD display at 60hz. Worked fine at 30hz.
Quadro K4000 with current drivers recognized the display at 60hz with no issues.
OS is Windows 8.1 64 bit.
Glen D. –
Pros: – Card is quiet.
– When working, rendering times were low. I used Mental Ray and Arnold, rendering times were low with them. Cons: -Card cannot handle two monitors at once around my 14 month mark.
-Card is beginning to fail after 14 months of use.
-Having trouble with rendering in After Effects, slower times rendering in After effects. Overall Review: The card doing well, actually great for me but then the 14 month came along and fail.
Anonymous –
Pros: Excellent specs.
Recommended by several software applications. Cons: Blank monitor issue developed after about 1yr, and got worse as time went on.
Customer Support response time is very poor.
Submitted a trouble ticket a week ago and have yet to hear from an agent to help us with our issue.
Card performance was poor with default settings (see other thoughts) Overall Review: Found out thru trial and error that changing the config settings of this card for Open GL made a big difference in drawing performance (FYI).
If you need a card for production, and can’t afford downtime, we cannot recommend this product, due to the lack of response of technical support. (a 3yr warranty doesn’t help if no-one answers the phone or e-mails)
Dean R. –
Pros: This card chews through Civil 3D and AutoCAD without any issues. Runs games without a hickup (just not on max settings). Performance for value is outstanding. Single slot card with 150watts, 4K support and 4 monitor support is quite nice. Cons: This card runs extremely HOT! My system has the Corsair Air 540 case with 5 case fans and a HUGE CPU heatsink. Lots of air movement in the case but the exhaust port on this card is so hot that I can feel the heat through my socks! Although this card ran flawlessly for about a year and a half, one day, it just started displaying orange screens (died). I am assuming it was due to heat burnout. I initially contacted AMD under the three year warranty instructions on May 8th. It is now May 28th and still no forward momentum!!! Thankfully, I had a spare gaming card to install temporarily into my machine. Very disappointed in service for a commercial card. Overall Review: I will add to this review or post another review that discusses the warranty process and results in the future (depends on when AMD gets off their duffs and starts honoring their warranty).
